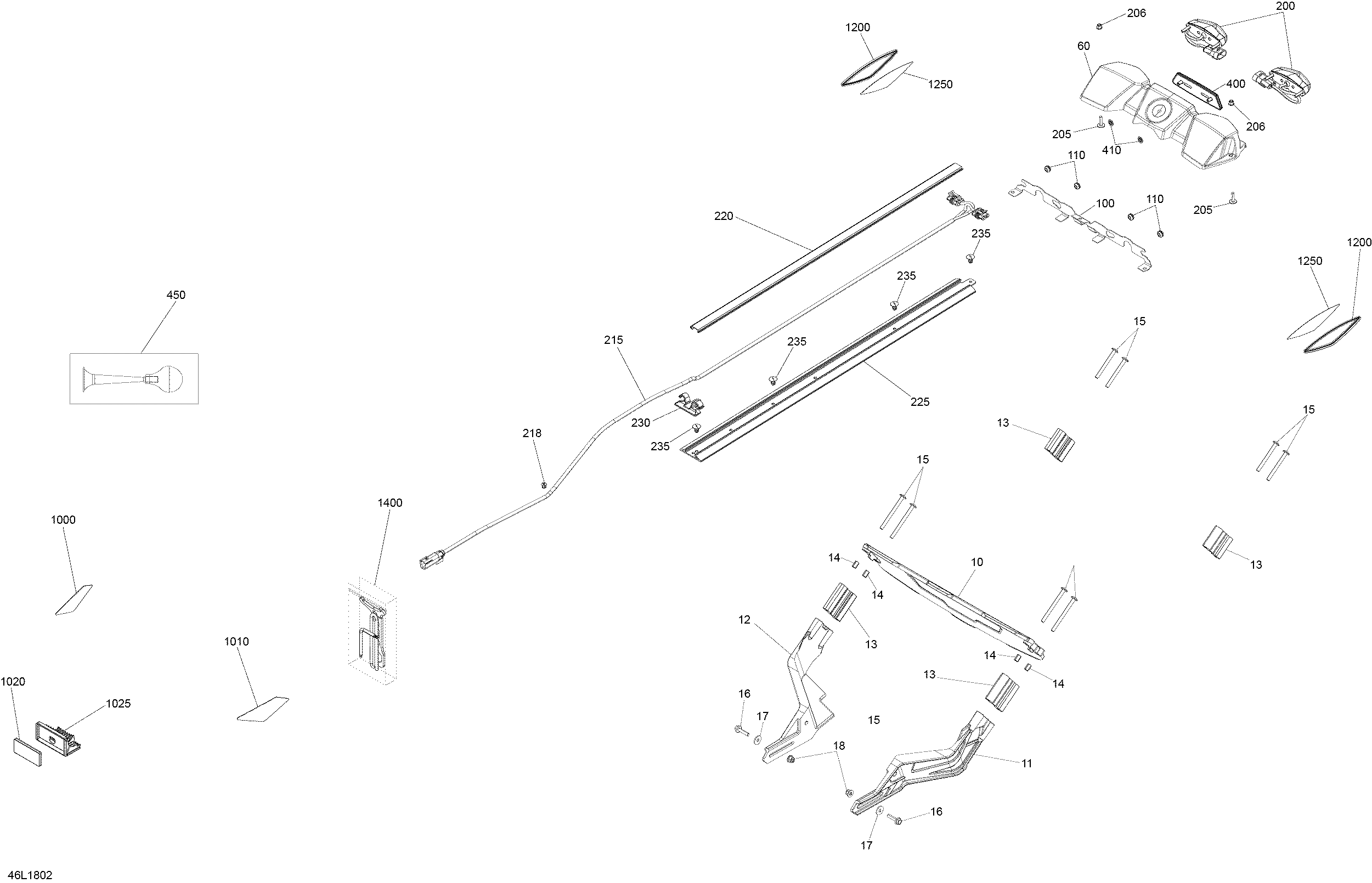

09- Utilities Boondocker - 850 E-TEC - Package BD3900 DS для BRP Lynx Boondocker 850 E-TEC - 2018
-
№АртикулНазвание
-
10520001695 SnowflapSnowflap
-
11520001875 Left SupportLeft Support
-
12520001876 Right SupportRight Support
-
13520001881 Support 3'' Track. Track Ass'y 16 X 154 X 3PLWSupport 3'' Track. Track Ass'y 16 X 154 X 3PLW
-
13520001882 Support 2,5'' Track. Track Ass'y 16 X 154 X 2.5PLWSupport 2,5'' Track. Track Ass'y 16 X 154 X 2.5PLW
-
15250000956 Torx-truss M/s M6 X 90. Track Ass'y 16 X 154 X 3PLWTorx-truss M/s M6 X 90. Track Ass'y 16 X 154 X 3PLW
-
15250001001 Torx-truss M/s M6 X 80. Track Ass'y 16 X 154 X 2.5PLWTorx-truss M/s M6 X 80. Track Ass'y 16 X 154 X 2.5PLW
-
16207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
17234061410 Flat Washer 6 mmFlat Washer 6 mm
-
18233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
60520001700 Light Fairing DsLight Fairing Ds
-
100520001783 Rear Light Support Plate DsRear Light Support Plate Ds
-
110293720101 GrommetGrommet
-
200520001302 Feu Arriere *rear LightFeu Arriere *rear Light
-
205250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
206233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
215515178360 Wiring HarnessWiring Harness
-
218390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
220520001719 Radiator TrimRadiator Trim
-
225520001703 Wire ProtectorWire Protector
-
230520001722 CapCap
-
235293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
400705012208 Reflect-rear RedReflect-rear Red
-
410732610072 Push NutPush Nut
-
450549011291 HornHorn
-
1000520001493 Front Reflector RHFront Reflector RH
-
1010520001494 Front Reflector LHFront Reflector LH
-
102021118 Reflector (Bright)Reflector (Bright)
-
1025520001776 Reflector SupportReflector Support
-
1200705002423 Amber Lateral ReflectorAmber Lateral Reflector
-
1250520001766 Support TapeSupport Tape
-
1400520001592 Tool KitTool Kit
