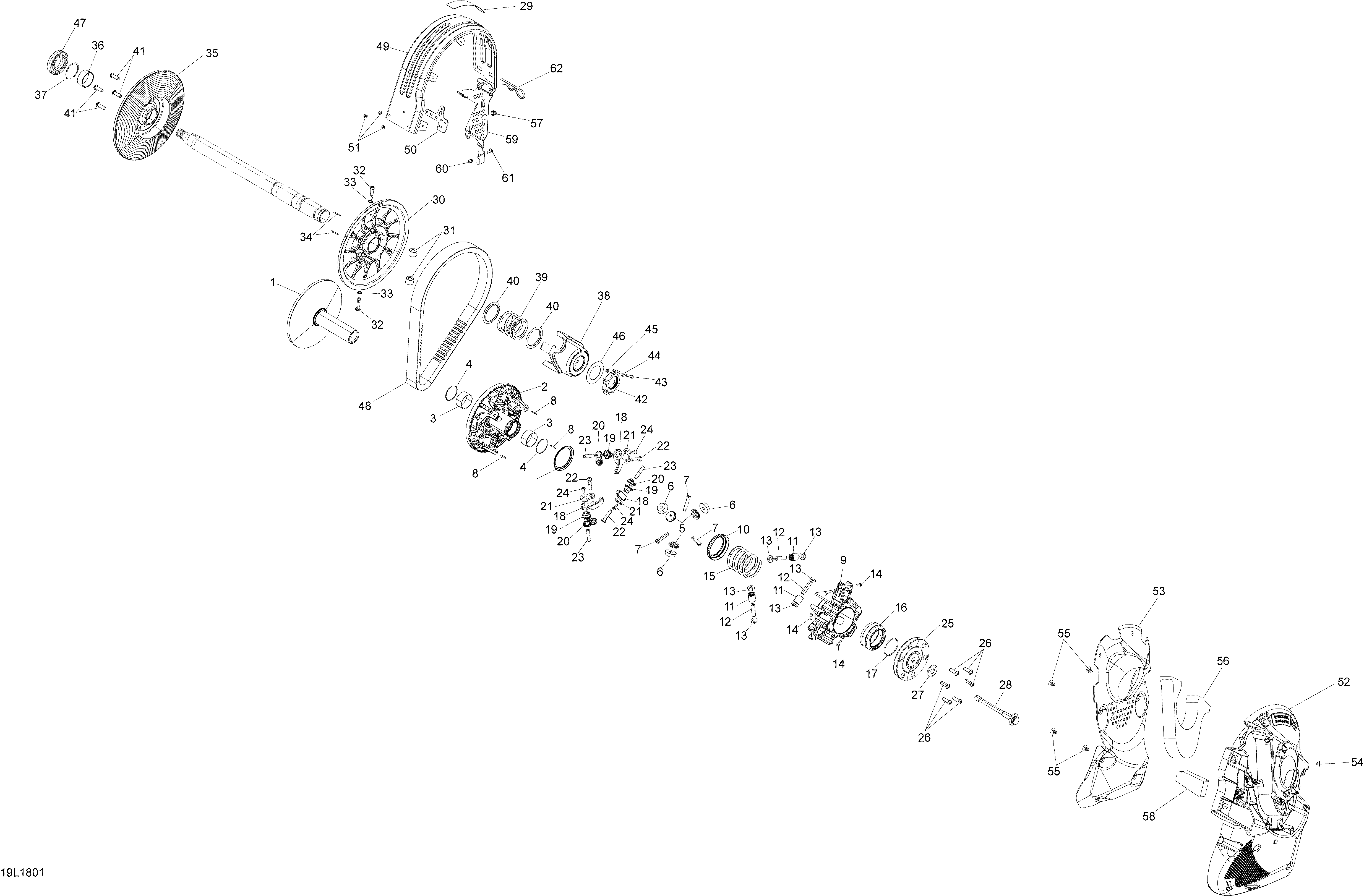

05- Pulley Boondocker - 850 E-TEC - Package DS для BRP Lynx Boondocker 850 E-TEC - 2018
-
№АртикулНазвание
-
1417224278 Fixed Flange Ass'yFixed Flange Ass'y
-
2417224275 Slidding Flange Ass'ySlidding Flange Ass'y
-
3293250389 BushingBushing
-
4293370117 CirclipCirclip
-
5417224153 Back Torque RollerBack Torque Roller
-
6417224034 Torque RollerTorque Roller
-
7417224277 Axle - 8mmAxle - 8mm
-
8250400074 Spring Pin 3/32'' X 3/4''Spring Pin 3/32'' X 3/4''
-
9417224019 Spyder Ass'ySpyder Ass'y
-
10417224002 Spring GuideSpring Guide
-
11417223808 Roller AssyRoller Assy
-
12417223989 Axle - 10mmAxle - 10mm
-
13417224009 Washer-ThrustWasher-Thrust
-
14250000763 Torx-Truss M/S M5 X 14 S.GripTorx-Truss M/S M5 X 14 S.Grip
-
15417224165 Clutch SpringClutch Spring
-
16417224003 Seat SpringSeat Spring
-
17293370116 CirclipCirclip
-
18417224038 Ramp 951Ramp 951
-
19417224113 Cam MoldedCam Molded
-
20417224086 Lever-RightLever-Right
-
21417224114 Lever LeftLever Left
-
22417224221 Pivot 33mmPivot 33mm
-
23417223631 Axle - 8mmAxle - 8mm
-
24250000763 Torx-Truss M/S M5 X 14 S.GripTorx-Truss M/S M5 X 14 S.Grip
-
25417223994 Cushion-DriveCushion-Drive
-
26250000757 Screw-Torx Button Head M8 X 25 S.GrScrew-Torx Button Head M8 X 25 S.Gr
-
27250200144 Conical Spring Washer M14Conical Spring Washer M14
-
28417300522 Pulley Drive Bolt M14 X 144Pulley Drive Bolt M14 X 144
-
29516007667 Warning DecalWarning Decal
-
30417127400 Fix Flange Ass'yFix Flange Ass'y
-
31417127016 RollerRoller
-
32417127294 Pivot StudPivot Stud
-
33250200009 Lock Washer 8 mmLock Washer 8 mm
-
34250400070 Spring PinSpring Pin
-
35417127317 Sliding Flange Ass'ySliding Flange Ass'y
-
36417127318 BushingBushing
-
37293370049 CirclipCirclip
-
38417127532 Cam Ass'yCam Ass'y
-
39417127039 Black SpringBlack Spring
-
40417127116 Swivel AbutmentSwivel Abutment
-
41250000757 Screw-Torx Button Head M8 X 25 S.GrScrew-Torx Button Head M8 X 25 S.Gr
-
42415129604 Calibration Ass'yCalibration Ass'y
-
43250000981 Socket Screw M5 X 25Socket Screw M5 X 25
-
44234051410 Flat Washer M5Flat Washer M5
-
45232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
46417127155 WasherWasher
-
47504152574 Ball BearingBall Bearing
-
48417300531 Drive BeltDrive Belt
-
49417300479 Belt GuardBelt Guard
-
50417300494 BracketBracket
-
51390909200 Avex RivetAvex Rivet
-
52417300533 Cvt Air DuctCvt Air Duct
-
52414575600 Hair PinHair Pin
-
53417300538 Acoustic PannelAcoustic Pannel
-
54293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
55414644300 DartDart
-
56417300509 FoamFoam
-
57233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
58417300517 FoamFoam
-
59417300482 Belt Guard BracketBelt Guard Bracket
-
60293450268 InsertInsert
-
61250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
62114045200 Hair PinHair Pin
