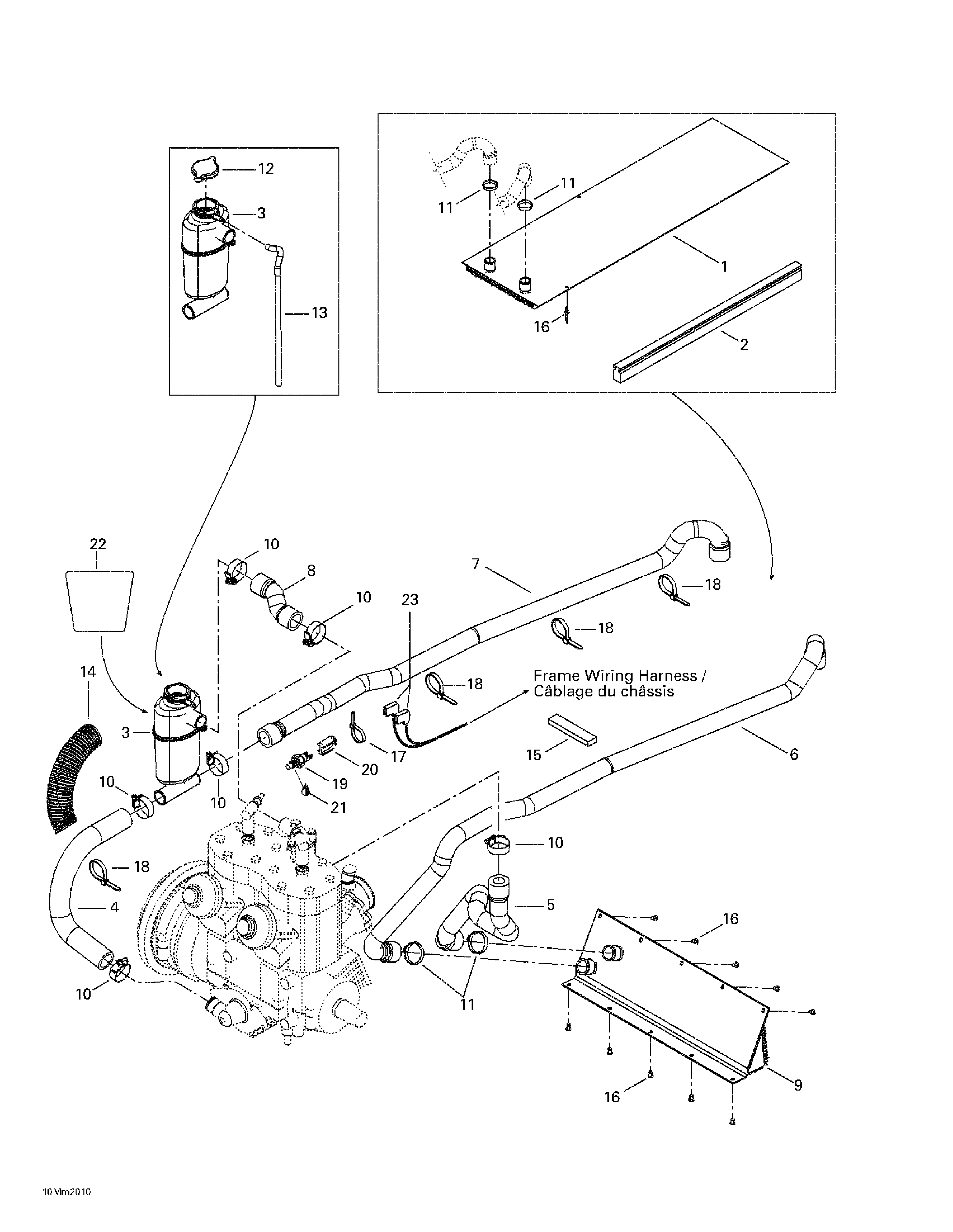

01- Cooling System для BRP Ski-Doo Formula Deluxe 600/700 - 2000
-
№АртикулНазвание
-
1517296300 Rear Radiator. Includes 1 - 2.Rear Radiator. Includes 1 - 2.
-
2518321655 Radiator ProtectorRadiator Protector
-
3509000000 Tank-CoolantTank-Coolant
-
4509000001 Engine Inlet HoseEngine Inlet Hose
-
5509000046 Engine Outlet HoseEngine Outlet Hose
-
6509000003 Radiator Inlet HoseRadiator Inlet Hose
-
7509000004 Radiator Outlet HoseRadiator Outlet Hose
-
8509000005 Deviation HoseDeviation Hose
-
9517297100 Front RadiatorFront Radiator
-
10408800400 Tridon Gear ClampTridon Gear Clamp
-
11509000045 Oetiker Gear ClampOetiker Gear Clamp
-
12414684700 Pressure CapPressure Cap
-
13415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
14415084700 Protective ShieldProtective Shield
-
15293200003 SealSeal
-
16390402200 Pop RivetPop Rivet
-
17293750002 Tie Rap 130 mmTie Rap 130 mm
-
18293750008 Tie Rap 350 mmTie Rap 350 mm
-
19512047000 Temperature Sensor. Formula Deluxe 600.Temperature Sensor. Formula Deluxe 600.
-
414728700 Temperature Sensor. Formula Deluxe 700.Temperature Sensor. Formula Deluxe 700.
-
20515175297 Connector PlugConnector Plug
-
21293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
22509000068 Reflection SheetReflection Sheet
-
23409010300 Female TerminalFemale Terminal
