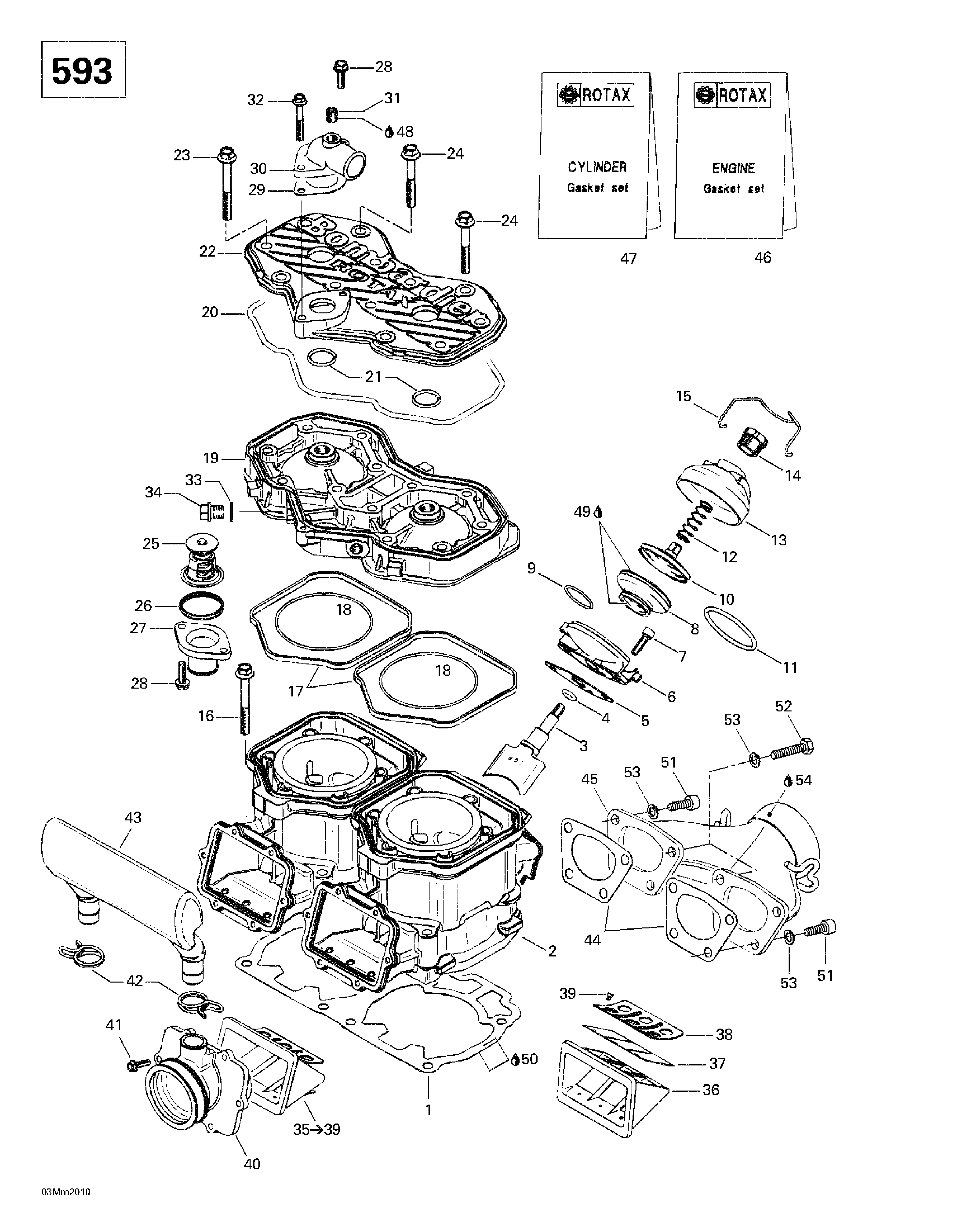

01- Cylinder, Exhaust Manifold, Reed Valve для BRP Ski-Doo Formula Deluxe 600/700 - 2000
-
№АртикулНазвание
-
1420931584 Double Gasket 0.8 mm. Formula Deluxe 600.Double Gasket 0.8 mm. Formula Deluxe 600.
-
420931962 Double Gasket 0.7 mm. Formula Deluxe 600.Double Gasket 0.7 mm. Formula Deluxe 600.
-
420931582 Double Gasket 0.6 mm. Formula Deluxe 600.Double Gasket 0.6 mm. Formula Deluxe 600.
-
420931583 Double Gasket 0.5 mm. Formula Deluxe 600.Double Gasket 0.5 mm. Formula Deluxe 600.
-
2420923435 Cylinder with Sleeve. Formula Deluxe 600.Cylinder with Sleeve. Formula Deluxe 600.
-
3420854370 Exhaust Valve. Formula Deluxe 600.Exhaust Valve. Formula Deluxe 600.
-
4420430110 O-Ring. Formula Deluxe 600.O-Ring. Formula Deluxe 600.
-
5420250239 Gasket. Formula Deluxe 600.Gasket. Formula Deluxe 600.
-
6420854265 Valve Housing. Formula Deluxe 600.Valve Housing. Formula Deluxe 600.
-
7205062044 Socket Head Screw M6 x 20. Formula Deluxe 600.Socket Head Screw M6 x 20. Formula Deluxe 600.
-
8290260723 Bellows. Formula Deluxe 600.Bellows. Formula Deluxe 600.
-
9420838253 Spring Clamp. Formula Deluxe 600.Spring Clamp. Formula Deluxe 600.
-
10420854447 Exhaust Valve. Formula Deluxe 600.Exhaust Valve. Formula Deluxe 600.
-
11290239048 Hose Spring. Formula Deluxe 600.Hose Spring. Formula Deluxe 600.
-
12420239944 Spring. Formula Deluxe 600.Spring. Formula Deluxe 600.
-
13420911551 Valve Cover. Formula Deluxe 600.Valve Cover. Formula Deluxe 600.
-
14420241220 Adjuster Screw. Formula Deluxe 600.Adjuster Screw. Formula Deluxe 600.
-
15420838082 Spring Clip. Formula Deluxe 600.Spring Clip. Formula Deluxe 600.
-
16420841999 Hex. Screw M8 x 68.5. Formula Deluxe 600.Hex. Screw M8 x 68.5. Formula Deluxe 600.
-
17420931590 Rubber Ring. Formula Deluxe 600.Rubber Ring. Formula Deluxe 600.
-
18293300026 O-Ring. Formula Deluxe 600.O-Ring. Formula Deluxe 600.
-
19420923450 Cylinder Head (Silver). Formula Deluxe 600.Cylinder Head (Silver). Formula Deluxe 600.
-
20420950320 O-Ring. Formula Deluxe 600.O-Ring. Formula Deluxe 600.
-
21420430782 O-Ring. Formula Deluxe 600.O-Ring. Formula Deluxe 600.
-
22420923460 Cylinder Head Cover (Silver). Formula Deluxe 600.Cylinder Head Cover (Silver). Formula Deluxe 600.
-
23420841306 Hex. Collar Screw M8 x 65. Formula Deluxe 600.Hex. Collar Screw M8 x 65. Formula Deluxe 600.
-
24420941621 Hex. Collar Screw M8 x 56.5. Formula Deluxe 600.Hex. Collar Screw M8 x 56.5. Formula Deluxe 600.
-
25414834100 Thermostat. Formula Deluxe 600.Thermostat. Formula Deluxe 600.
-
26420931270 Sealing Ring. Formula Deluxe 600.Sealing Ring. Formula Deluxe 600.
-
27420922025 Bent Outlet Socket. Formula Deluxe 600.Bent Outlet Socket. Formula Deluxe 600.
-
28420941250 Screw M6 x 20. Formula Deluxe 600.Screw M6 x 20. Formula Deluxe 600.
-
29420850338 Gasket. Formula Deluxe 600.Gasket. Formula Deluxe 600.
-
30420922062 Bent Outlet Socket. Formula Deluxe 600.Bent Outlet Socket. Formula Deluxe 600.
-
31420240480 Plug Screw 1/8-27 NPT. Formula Deluxe 600.Plug Screw 1/8-27 NPT. Formula Deluxe 600.
-
32420941451 Hex. Collar Screw M6 x 40. Formula Deluxe 600.Hex. Collar Screw M6 x 40. Formula Deluxe 600.
-
33420250015 Gasket Ring. Formula Deluxe 600.Gasket Ring. Formula Deluxe 600.
-
34420841921 Plug Screw M12 x 1.5. Formula Deluxe 600.Plug Screw M12 x 1.5. Formula Deluxe 600.
-
35420924519 Reed Valve Ass'y. Includes 35 - 39. Formula Deluxe 600.Reed Valve Ass'y. Includes 35 - 39. Formula Deluxe 600.
-
37420924532 Pedal Reed. Formula Deluxe 600.Pedal Reed. Formula Deluxe 600.
-
38420924539 Reed Pedal Stop. Formula Deluxe 600.Reed Pedal Stop. Formula Deluxe 600.
-
39420941215 Screw M3 x 5. Formula Deluxe 600.Screw M3 x 5. Formula Deluxe 600.
-
40420867805 Carburetor Socket. Formula Deluxe 600.Carburetor Socket. Formula Deluxe 600.
-
41420941925 Screw M5 x 16. Formula Deluxe 600.Screw M5 x 16. Formula Deluxe 600.
-
42420851440 Clamp. Formula Deluxe 600.Clamp. Formula Deluxe 600.
-
43420867815 Intake Resonator. Formula Deluxe 600.Intake Resonator. Formula Deluxe 600.
-
44420931610 Gasket. Formula Deluxe 600.Gasket. Formula Deluxe 600.
-
45420979543 Exhaust Manifold. Formula Deluxe 600.Exhaust Manifold. Formula Deluxe 600.
-
46420888581 Engine Gasket Set. Formula Deluxe 600.Engine Gasket Set. Formula Deluxe 600.
-
47420888586 Cylinder Gasket Set. Formula Deluxe 600.Cylinder Gasket Set. Formula Deluxe 600.
-
48293800060 Loctite 243, 10 ml. Formula Deluxe 600.Loctite 243, 10 ml. Formula Deluxe 600.
-
49413707000 Molykote 111. Formula Deluxe 600.Molykote 111. Formula Deluxe 600.
-
50293800038 Loctite 518, 50 ml. Formula Deluxe 600.Loctite 518, 50 ml. Formula Deluxe 600.
-
51205082544 Socket Head Screw M8 x 25. Formula Deluxe 600.Socket Head Screw M8 x 25. Formula Deluxe 600.
-
52207182044 Hex. Screw M8 x 20. Formula Deluxe 600.Hex. Screw M8 x 20. Formula Deluxe 600.
-
53234181401 Lock Washer 8 mm. Formula Deluxe 600.Lock Washer 8 mm. Formula Deluxe 600.
-
54413710300 Sealant, Loctite 17914, 80 ml. Formula Deluxe 600.Sealant, Loctite 17914, 80 ml. Formula Deluxe 600.
