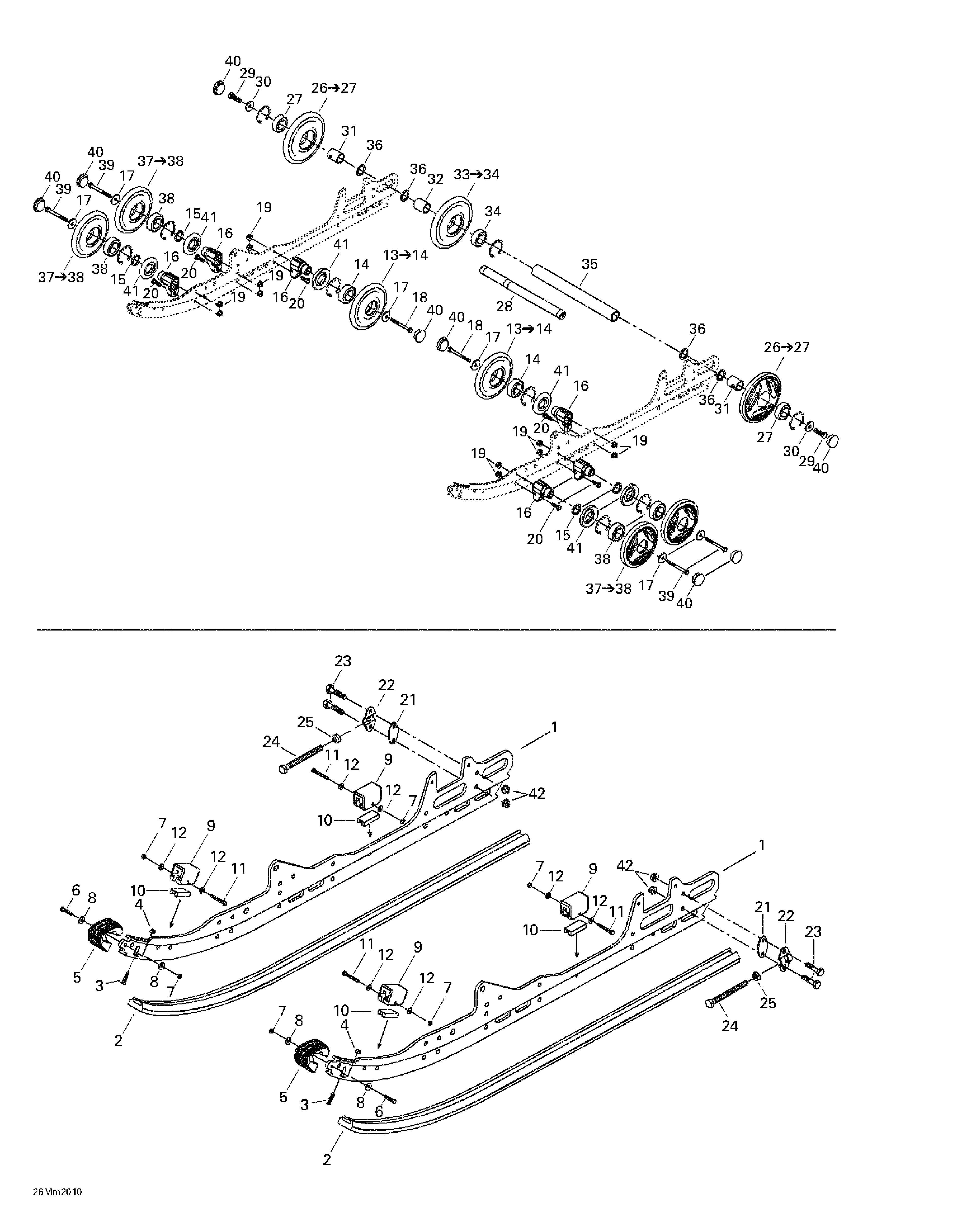

08- Rear Suspension для BRP Ski-Doo Formula Deluxe 600/700 - 2000
-
№АртикулНазвание
-
1503189301 RunnerRunner
-
2560103300 ShoeShoe
-
3208562560 Screw M6 x 25Screw M6 x 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5572075400 ProtectorProtector
-
6207152544 Hex. Screw M5 x 25Hex. Screw M5 x 25
-
7232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
8391301600 Flat WasherFlat Washer
-
9570063000 Rubber StopperRubber Stopper
-
10572084800 Reinforcement StopperReinforcement Stopper
-
11207054044 Hex. Screw M5 x 40Hex. Screw M5 x 40
-
12391301700 Flat WasherFlat Washer
-
13503188997 Wheel 135 Ass'y. Includes 13 - 14.Wheel 135 Ass'y. Includes 13 - 14.
-
14405404500 Ball Bearing 6205Ball Bearing 6205
-
15503173700 WasherWasher
-
16503174600 SupportSupport
-
17503183100 WasherWasher
-
18207088044 Hex. Screw M8 x 80Hex. Screw M8 x 80
-
19233281414 Elastic Flange Stop Nut M8Elastic Flange Stop Nut M8
-
20207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
21503189160 Tensioner SpacerTensioner Spacer
-
22503155300 TensionerTensioner
-
23207063044 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
24230100044 Hex. Screw M10 x 100Hex. Screw M10 x 100
-
25233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
26503189475 Wheel 165 Ass'y. Includes 26 - 27.Wheel 165 Ass'y. Includes 26 - 27.
-
27405404500 Ball Bearing 6205Ball Bearing 6205
-
28503160700 Rear AxleRear Axle
-
29250000019 Hex. Screw with NylonHex. Screw with Nylon
-
30503183300 WasherWasher
-
31503189161 Outer SpacerOuter Spacer
-
32503182900 Inner SpacerInner Spacer
-
33503189476 Wheel 165 Ass'y. Includes 33 - 34.Wheel 165 Ass'y. Includes 33 - 34.
-
34405404500 Ball Bearing 6205Ball Bearing 6205
-
35503183000 Central SpacerCentral Spacer
-
36503180400 WasherWasher
-
37572097602 Wheel 135 (Black). Includes 37 - 38.Wheel 135 (Black). Includes 37 - 38.
-
38405404500 Ball Bearing 6205Ball Bearing 6205
-
39207088544 Hex. Screw M8 x 85Hex. Screw M8 x 85
-
40570063600 Wheel CapWheel Cap
-
41572089000 Labyrinth SealLabyrinth Seal
-
42233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
