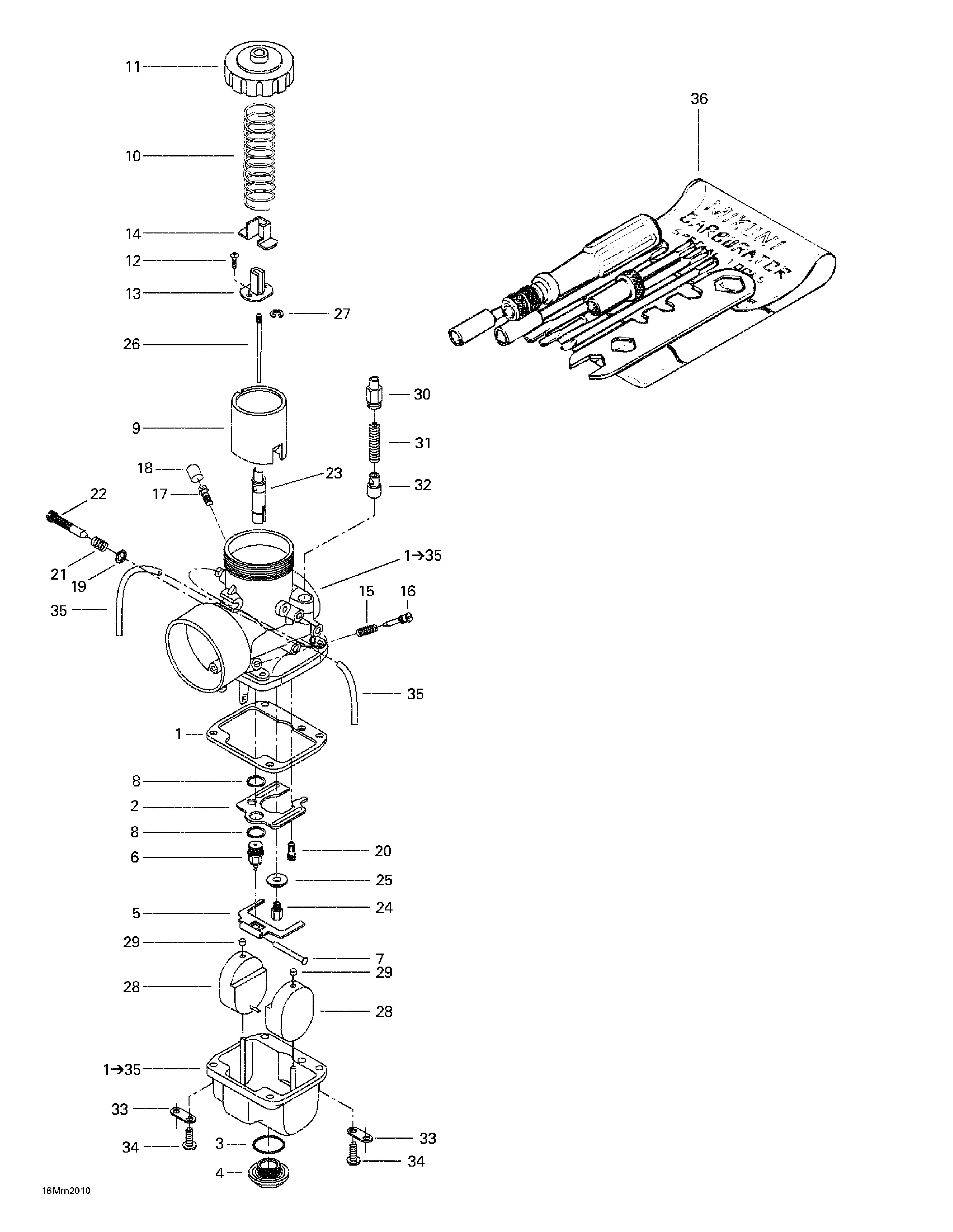

02- Carburetors для BRP Ski-Doo Formula Deluxe 600/700 - 2000
-
№АртикулНазвание
-
1403138614 VM 40-122 Carburetor. Includes 1 - 35. Formula Deluxe 600.VM 40-122 Carburetor. Includes 1 - 35. Formula Deluxe 600.
-
403138622 VM 40-128 Carburetor. Formula Deluxe 700.VM 40-128 Carburetor. Formula Deluxe 700.
-
1404104700 GasketGasket
-
2404112700 BaffleBaffle
-
3404112800 WasherWasher
-
4404112900 Drain Plug ScrewDrain Plug Screw
-
5404161823 Float LeverFloat Lever
-
6404147400 Needle Valve 1.5Needle Valve 1.5
-
7404103300 Lever PinLever Pin
-
8404101600 Seat WasherSeat Washer
-
9404132300 Piston Valve CA 2.5Piston Valve CA 2.5
-
10404156500 SpringSpring
-
11404126800 CoverCover
-
12404121300 Screw with WasherScrew with Washer
-
13404160800 ConnectorConnector
-
14404128100 CoverCover
-
15404139800 Spring (Air Screw)Spring (Air Screw)
-
16404149000 Air ScrewAir Screw
-
17404153400 NippleNipple
-
18404154900 CapCap
-
19270500018 WasherWasher
-
20404161846 Pilot Jet PJ 37.5. Formula Deluxe 600.Pilot Jet PJ 37.5. Formula Deluxe 600.
-
404109400 Pilot Jet PJ 45. Formula Deluxe 700.Pilot Jet PJ 45. Formula Deluxe 700.
-
21404101700 Spring (Adjustment Screw)Spring (Adjustment Screw)
-
22404125200 Throttle Adjustment ScrewThrottle Adjustment Screw
-
23404153800 Needle Jet 224-Z-9. Formula Deluxe 600.Needle Jet 224-Z-9. Formula Deluxe 600.
-
404161875 Needle Jet 224-Z-7. Formula Deluxe 700.Needle Jet 224-Z-7. Formula Deluxe 700.
-
24404100500 Main Jet MJ 280Main Jet MJ 280
-
25404116700 WasherWasher
-
26404161847 Needle J8-7DFY01. Formula Deluxe 600.Needle J8-7DFY01. Formula Deluxe 600.
-
404161840 Needle J8-7DHY06. Formula Deluxe 700.Needle J8-7DHY06. Formula Deluxe 700.
-
27404152200 E-RingE-Ring
-
28404105400 FloatFloat
-
29404105800 CapCap
-
30404161100 Guide HolderGuide Holder
-
31404161844 SpringSpring
-
32404161845 Plunger Ass'yPlunger Ass'y
-
33404103000 PlatePlate
-
34404102000 Screw with Lock WasherScrew with Lock Washer
-
35404161802 Air Vent TubeAir Vent Tube
-
36404112000 Tool KitTool Kit
