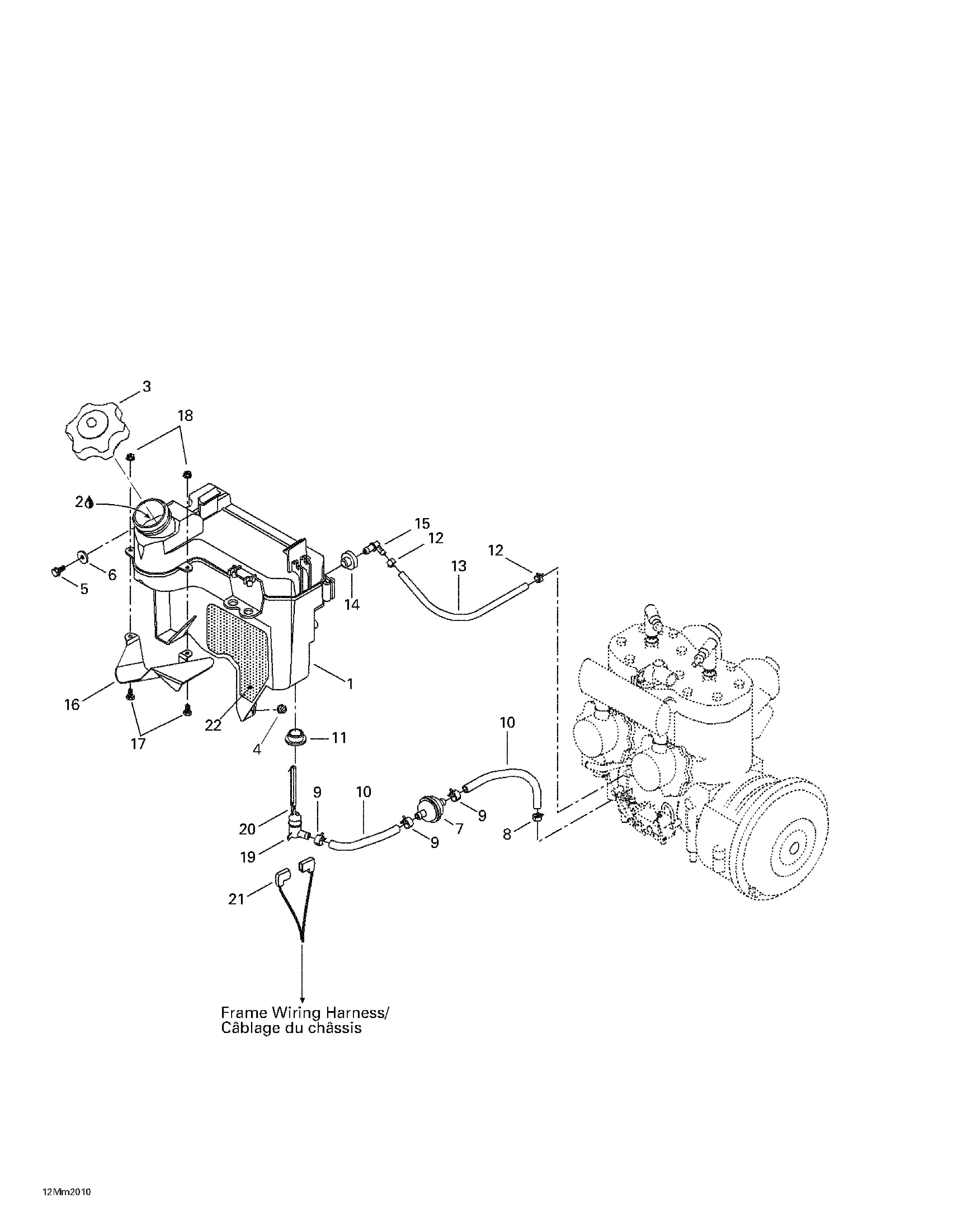

02- Oil Tank для BRP Ski-Doo Formula Deluxe 600/700 - 2000
-
№АртикулНазвание
-
1519000028 Oil TankOil Tank
-
2413803100 Blizzard Oil (12 x 500 ml)Blizzard Oil (12 x 500 ml)
-
413802900 Injection Oil (12 x 1 Liter)Injection Oil (12 x 1 Liter)
-
413803000 Injection Oil (3 x 4 Liter)Injection Oil (3 x 4 Liter)
-
413803200 Injection Oil (205 Liter)Injection Oil (205 Liter)
-
413711000 Synthetic Injection Oil (3 x 4 Liter)Synthetic Injection Oil (3 x 4 Liter)
-
413710700 Synthetic Injection Oil (205 Liter)Synthetic Injection Oil (205 Liter)
-
413710500 Synthetic Injection Oil (12 x 1 Liter). Bombardier-Rotax Formula XP-SSynthetic Injection Oil (12 x 1 Liter). Bombardier-Rotax Formula XP-S
-
3519000017 CapCap
-
4233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
5210261680 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
6250200000 Serrated Lock Washer 6 mmSerrated Lock Washer 6 mm
-
7414536500 FilterFilter
-
8414420700 Spring ClampSpring Clamp
-
9414415200 Spring ClampSpring Clamp
-
10415080700 LineLine
-
11570023000 GrommetGrommet
-
12414554800 Spring ClampSpring Clamp
-
13415080200 LineLine
-
14570135100 GrommetGrommet
-
15414580700 Elbow Male ConnectorElbow Male Connector
-
16519000018 DeflectorDeflector
-
17207151244 Hex. Screw M5 x 12Hex. Screw M5 x 12
-
18233251414 Elastic Flange Nut M5Elastic Flange Nut M5
-
19414681800 Level SwitchLevel Switch
-
20414681900 FloatFloat
-
21409010300 Female TerminalFemale Terminal
-
22519000023 Reflective SheetReflective Sheet
