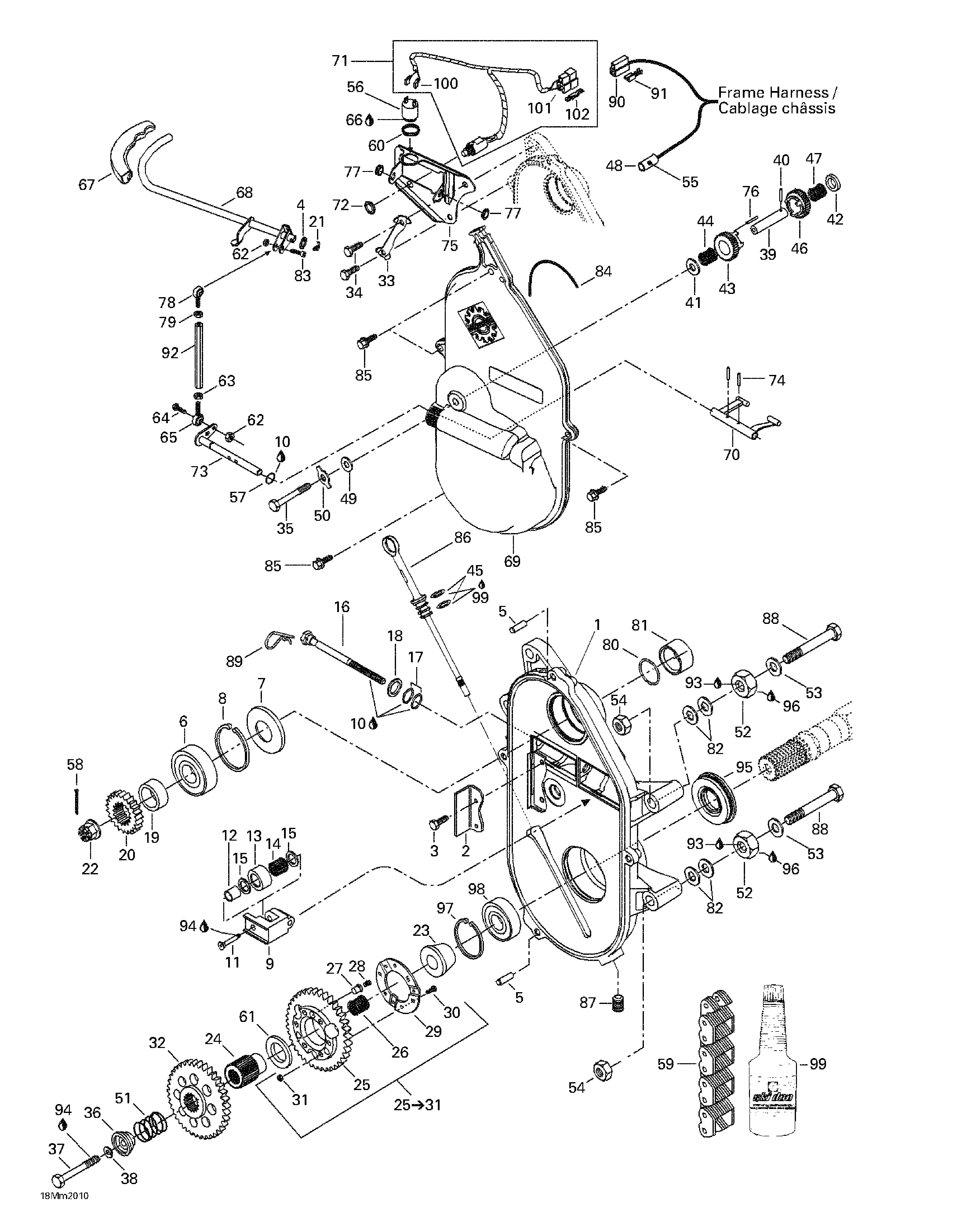

05- Transmission для BRP Ski-Doo Formula Deluxe 600/700 - 2000
-
№АртикулНазвание
-
1504151776 ChaincaseChaincase
-
2504151808 Chain SliderChain Slider
-
3210251180 Hex. Forming Screw M5 x 11Hex. Forming Screw M5 x 11
-
4503189264 WasherWasher
-
5732620001 Cylinder Pin M6 x 20Cylinder Pin M6 x 20
-
6405404400 Ball Bearing 6205Ball Bearing 6205
-
7415049300 SealSeal
-
8371901700 CirclipCirclip
-
9504151951 Chain TensionerChain Tensioner
-
10219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
11732601144 ScrewScrew
-
12504080200 SpacerSpacer
-
13414531300 RollerRoller
-
14405403000 Needle BearingNeedle Bearing
-
15504080300 WasherWasher
-
16732601314 Tensioner Adjustment ScrewTensioner Adjustment Screw
-
17414484400 O-RingO-Ring
-
18234001410 Flat Washer 10 mmFlat Washer 10 mm
-
19504147200 ShimShim
-
20504139700 24 Tooth Sprocket (Large). Formula Deluxe 600.24 Tooth Sprocket (Large). Formula Deluxe 600.
-
504084300 25 Tooth Sprocket (Large). Formula Deluxe 700.25 Tooth Sprocket (Large). Formula Deluxe 700.
-
21371800800 Cotter PinCotter Pin
-
22250000012 Castellated Nut M20Castellated Nut M20
-
23504076300 Retaining RingRetaining Ring
-
24504097700 Coupling ShaftCoupling Shaft
-
25581096800 Sprocket Ass'y (44 Tooth). Includes 25 - 31.Sprocket Ass'y (44 Tooth). Includes 25 - 31.
-
25504084400 Sprocket (44 Tooth)Sprocket (44 Tooth)
-
26414772600 Needle BearingNeedle Bearing
-
27504076800 Drive PinDrive Pin
-
28414772700 SpringSpring
-
29504076100 Retaining RingRetaining Ring
-
30207152044 Hex. Screw M5 x 20Hex. Screw M5 x 20
-
31233551416 Nut Lock Hex. M5Nut Lock Hex. M5
-
32504096800 Slidding Gear (56 Tooth)Slidding Gear (56 Tooth)
-
33507029900 Locking TabLocking Tab
-
34207103544 Hex. Screw M10 x 35Hex. Screw M10 x 35
-
35207089044 Hex. Screw M8 x 90Hex. Screw M8 x 90
-
36504151964 CapCap
-
37207005044 Hex. Screw M10 x 50Hex. Screw M10 x 50
-
38234100602 Lock Washer 10 mmLock Washer 10 mm
-
39504083100 Reverse ShaftReverse Shaft
-
40732804003 Spring PinSpring Pin
-
41504077300 SpacerSpacer
-
42504078700 Thrust RingThrust Ring
-
43581122200 Sprocket Ass'y (19 Tooth). Includes 43 - 44.Sprocket Ass'y (19 Tooth). Includes 43 - 44.
-
44414805000 Needle BearingNeedle Bearing
-
45414969400 O-RingO-Ring
-
46581096900 Sprock Ass'y, 19 Teeth. Includes 46 - 47.Sprock Ass'y, 19 Teeth. Includes 46 - 47.
-
47414773100 Needle BearingNeedle Bearing
-
48415079200 HoseHose
-
49504082900 WasherWasher
-
50504087700 Lock TabLock Tab
-
51504096600 Release SpringRelease Spring
-
52504083800 SpacerSpacer
-
53503183800 WasherWasher
-
54233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
56414805102 DC HornDC Horn
-
57414773200 O-RingO-Ring
-
58371006300 Cotter PinCotter Pin
-
59504151856 Drive Chain (76 Links)Drive Chain (76 Links)
-
60414805101 Plastic NutPlastic Nut
-
61504094300 WasherWasher
-
62232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
63232066414 Hex. Nut M6Hex. Nut M6
-
64207162044 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
65414773500 Ball Joint L.HBall Joint L.H
-
66296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
67570064600 GripGrip
-
68504151810 Welded HandleWelded Handle
-
69504151845 Cover ChaincaseCover Chaincase
-
70504075800 ForkFork
-
71515175318 Switch Ass'ySwitch Ass'y
-
73504151806 Fork AxleFork Axle
-
74414772500 Spring Pin M5 x 20Spring Pin M5 x 20
-
75504151823 Reverse SupportReverse Support
-
76570048600 Alignment RodAlignment Rod
-
77504151818 Flanged BushingFlanged Bushing
-
78414773400 Ball Joint R.HBall Joint R.H
-
79232061414 Nut M6Nut M6
-
80414876700 O-RingO-Ring
-
81507031500 SpacerSpacer
-
82504073700 WasherWasher
-
83205062060 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
84415046400 O-RingO-Ring
-
85210263080 Hex. Flanged Screw M6 x 30Hex. Flanged Screw M6 x 30
-
86504151750 Filler Cap Ass'yFiller Cap Ass'y
-
87504151921 PlugPlug
-
88207108044 Hex. Screw M10 x 80Hex. Screw M10 x 80
-
89414575600 Hair PinHair Pin
-
90409204600 Female Connector Housing (2 Circuits)Female Connector Housing (2 Circuits)
-
91561503100 Female TerminalFemale Terminal
-
92504151814 Tie Rod (Bar)Tie Rod (Bar)
-
93293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
94293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
95504151918 Oil Seal Ass'yOil Seal Ass'y
-
96293800023 Loctite 767, Antiseize Lubricant, 454 gLoctite 767, Antiseize Lubricant, 454 g
-
97415064300 Circlip (Interior)Circlip (Interior)
-
98405408500 Ball BearingBall Bearing
-
99413803300 Synthetic Chaincase Oil. (12 x 355 ml)Synthetic Chaincase Oil. (12 x 355 ml)
-
100409010300 Female TerminalFemale Terminal
-
101409204500 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
-
102409210000 Male TerminalMale Terminal
