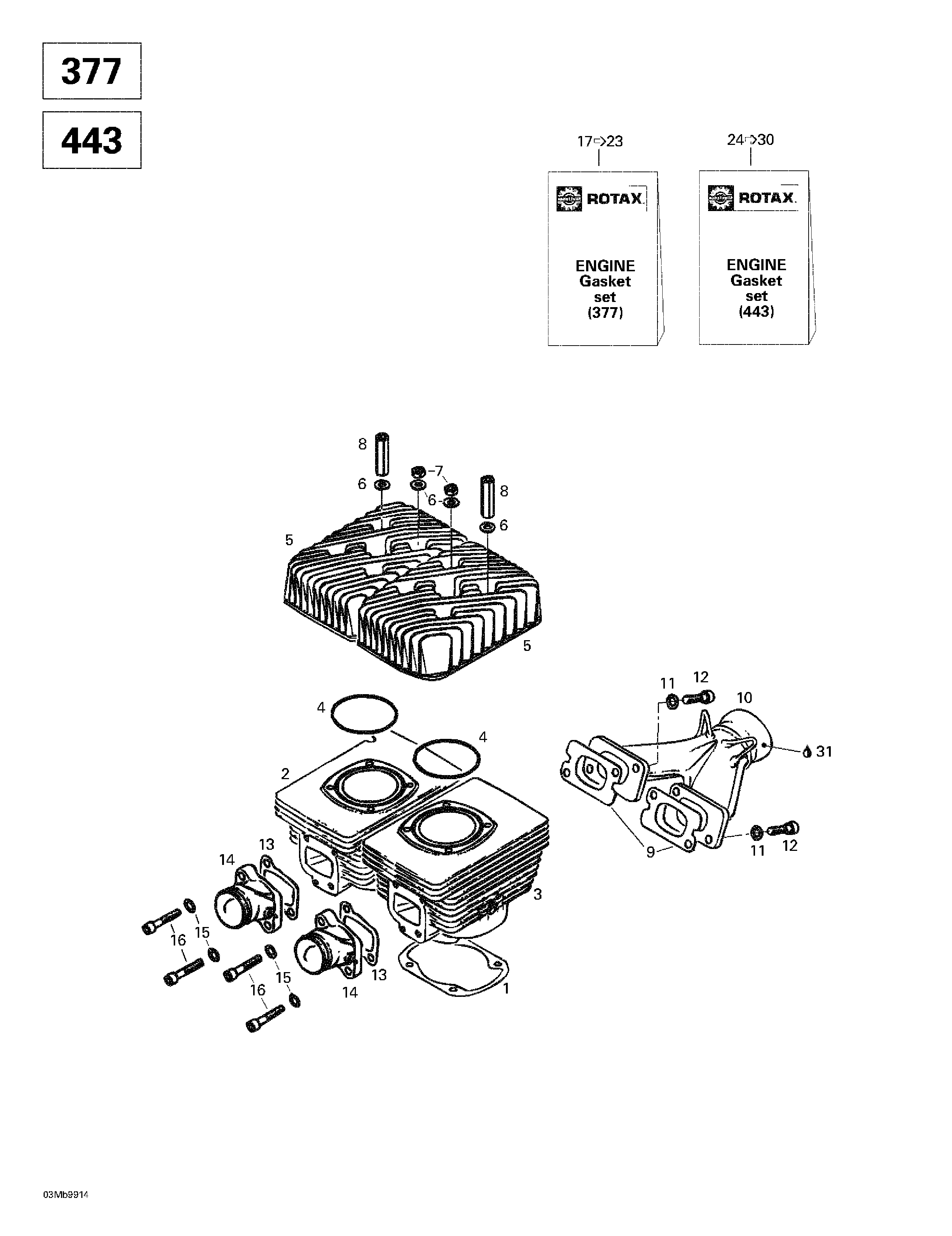

01- Cylinder, Exhaust Manifold (377, 443) для BRP Ski-Doo Touring LE - 2000
-
№АртикулНазвание
-
1420931782 Gasket 0.6 mm. Touring LE.Gasket 0.6 mm. Touring LE.
-
420931781 Gasket 0.4 mm. Touring E. Touring LE.Gasket 0.4 mm. Touring E. Touring LE.
-
420931780 Gasket 0.3 mm. Touring LE.Gasket 0.3 mm. Touring LE.
-
2420923403 Cylinder with Sleeve, PTO. Touring E.Cylinder with Sleeve, PTO. Touring E.
-
420923790 Cylinder with Sleeve, PTO. Touring LE.Cylinder with Sleeve, PTO. Touring LE.
-
3420923408 Cylinder with Sleeve, MAG. Touring E.Cylinder with Sleeve, MAG. Touring E.
-
420923795 Cylinder with Sleeve, MAG. Touring LE.Cylinder with Sleeve, MAG. Touring LE.
-
4420931380 O-Ring. Touring E. Touring LE.O-Ring. Touring E. Touring LE.
-
5420923602 Cylinder Head. Touring E.Cylinder Head. Touring E.
-
420923375 Cylinder Head. Touring LE.Cylinder Head. Touring LE.
-
6420250311 Flat Washer 8.4 mm. Touring E. Touring LE.Flat Washer 8.4 mm. Touring E. Touring LE.
-
7232081414 Hex. Nut M8. Touring E. Touring LE.Hex. Nut M8. Touring E. Touring LE.
-
8420842385 Distance Nut M8. Touring E.Distance Nut M8. Touring E.
-
420842208 Distance Nut M8. Touring LE.Distance Nut M8. Touring LE.
-
9420850114 Gasket. Touring E. Touring LE.Gasket. Touring E. Touring LE.
-
10420978437 Exhaust Manifold. Touring E. Touring LE.Exhaust Manifold. Touring E. Touring LE.
-
11234181401 Lock Washer 8 mm. Touring E. Touring LE.Lock Washer 8 mm. Touring E. Touring LE.
-
12205083044 Socket Head Screw M8 x 30. Touring E. Touring LE.Socket Head Screw M8 x 30. Touring E. Touring LE.
-
13420831867 Intake Gasket 1.0 mm. Touring E. Touring LE.Intake Gasket 1.0 mm. Touring E. Touring LE.
-
14420867408 Intake Socket. Touring E. Touring LE.Intake Socket. Touring E. Touring LE.
-
15420945752 Lock Washer 8 mm. Touring E. Touring LE.Lock Washer 8 mm. Touring E. Touring LE.
-
16420841591 Screw M8 x 35. Touring E. Touring LE.Screw M8 x 35. Touring E. Touring LE.
-
17420994232 Engine Gasket Set. Includes 17 - 23. Touring E.Engine Gasket Set. Includes 17 - 23. Touring E.
-
18420250165 O-Ring 64 mm. Touring E.O-Ring 64 mm. Touring E.
-
19420831950 Oil Seal. Touring E.Oil Seal. Touring E.
-
20420931781 Gasket 0.40 mm. Touring E.Gasket 0.40 mm. Touring E.
-
21420931380 O-Ring. Touring E.O-Ring. Touring E.
-
22420850114 Gasket. Touring E.Gasket. Touring E.
-
23420831867 Intake Gasket 1.0 mm. Touring E.Intake Gasket 1.0 mm. Touring E.
-
24420994232 Engine Gasket Set. Includes 24 - 30. Touring LE.Engine Gasket Set. Includes 24 - 30. Touring LE.
-
25420250165 O-Ring. Touring LE.O-Ring. Touring LE.
-
26420831950 Oil Seal. Touring LE.Oil Seal. Touring LE.
-
27420931781 Gasket 0.40 mm. Touring LE.Gasket 0.40 mm. Touring LE.
-
28420931380 O-Ring. Touring LE.O-Ring. Touring LE.
-
29420850114 Gasket. Touring LE.Gasket. Touring LE.
-
30420831867 Intake Gasket. Touring LE.Intake Gasket. Touring LE.
-
31413710300 Sealant, Loctite 17914, 80 ml. Touring E. Touring LE.Sealant, Loctite 17914, 80 ml. Touring E. Touring LE.
