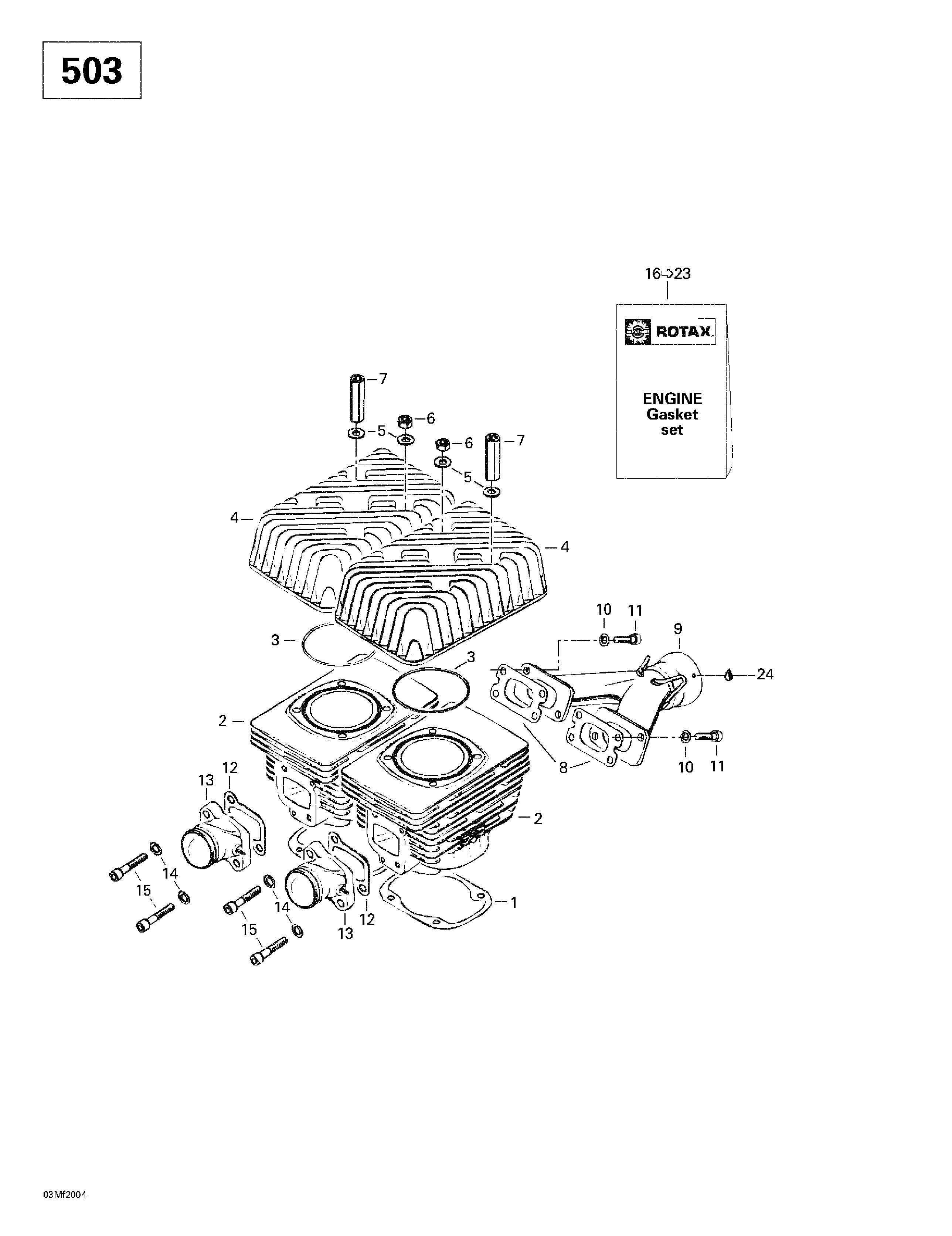

01- Cylinder, Exhaust Manifold (503) для BRP Ski-Doo Touring LE - 2000
-
№АртикулНазвание
-
1420831858 Gasket 0.4 mm. Touring SLE.Gasket 0.4 mm. Touring SLE.
-
2420923417 Cylinder with sleeve. Touring SLE.Cylinder with sleeve. Touring SLE.
-
3420850540 O-Ring. Touring SLE.O-Ring. Touring SLE.
-
4420923590 Cylinder head. Touring SLE.Cylinder head. Touring SLE.
-
5420250311 Flat Washer 8.4 mm. Touring SLE.Flat Washer 8.4 mm. Touring SLE.
-
6232081414 Hex. Nut M8. Touring SLE.Hex. Nut M8. Touring SLE.
-
7420842203 Distance Nut M8 x 47. Touring SLE.Distance Nut M8 x 47. Touring SLE.
-
8420831849 Gasket 1.0 mm. Touring SLE.Gasket 1.0 mm. Touring SLE.
-
9420973128 Exhaust Manifold. Touring SLE.Exhaust Manifold. Touring SLE.
-
10234181401 Lock Washer 8 mm. Touring SLE.Lock Washer 8 mm. Touring SLE.
-
11205083044 Socket Head Screw M8 x 30. Touring SLE.Socket Head Screw M8 x 30. Touring SLE.
-
12420831867 Intake Gasket 1.0 mm. Touring SLE.Intake Gasket 1.0 mm. Touring SLE.
-
13420867408 Intake Socket. Touring SLE.Intake Socket. Touring SLE.
-
14420945752 Lock Washer 8 mm. Touring SLE.Lock Washer 8 mm. Touring SLE.
-
15420840681 Socket Head Screw M8 x 40. Touring SLE.Socket Head Screw M8 x 40. Touring SLE.
-
16420994238 Engine Gasket Set. Includes 16 - 23. Touring SLE.Engine Gasket Set. Includes 16 - 23. Touring SLE.
-
17420250165 O-Ring 64 mm. Touring SLE.O-Ring 64 mm. Touring SLE.
-
18420831950 Oil Seal. Touring SLE.Oil Seal. Touring SLE.
-
19420831858 Gasket 0.4 mm. Touring SLE.Gasket 0.4 mm. Touring SLE.
-
20420850540 O-Ring. Touring SLE.O-Ring. Touring SLE.
-
21420831849 Gasket 1.0 mm. Touring SLE.Gasket 1.0 mm. Touring SLE.
-
22420831867 Intake Gasket 1.0 mm. Touring SLE.Intake Gasket 1.0 mm. Touring SLE.
-
23404146600 Gasket. Touring SLE.Gasket. Touring SLE.
-
24413710300 Sealant, Loctite 17914, 80 ml. Touring SLE.Sealant, Loctite 17914, 80 ml. Touring SLE.
