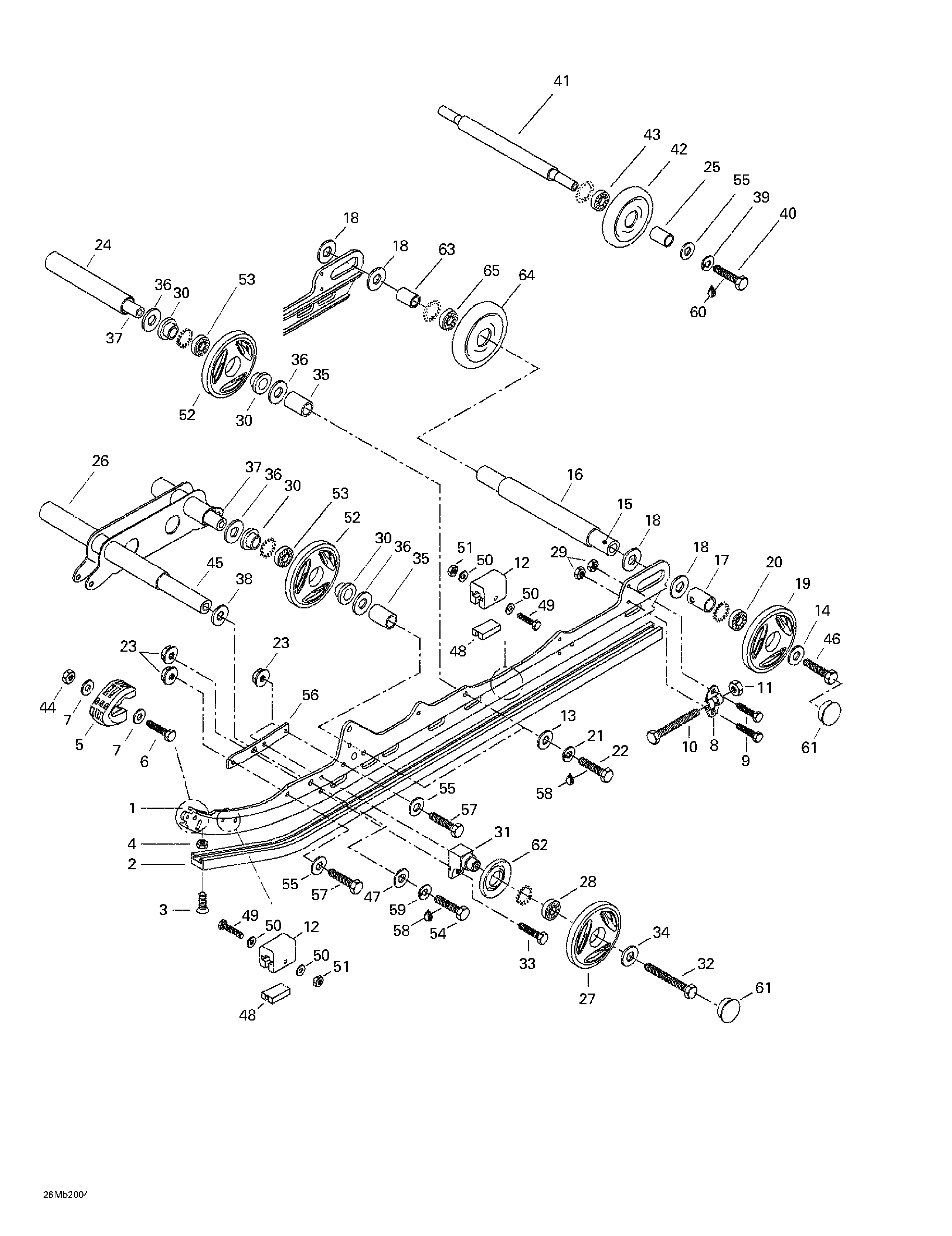

08- Rear Suspension для BRP Ski-Doo Touring LE - 2000
-
№АртикулНазвание
-
1503188994 RunnerRunner
-
2560103500 Runner ShoeRunner Shoe
-
3208562560 Countersunk Head Screw M6 x 25Countersunk Head Screw M6 x 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5572075400 Runner ProtectorRunner Protector
-
6207152544 Hex. Screw M5 x 25Hex. Screw M5 x 25
-
7391301600 WasherWasher
-
8503155300 TensionerTensioner
-
9207162044 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
10230100044 Hex. Screw M10 x 100Hex. Screw M10 x 100
-
11233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
12570063000 Rubber StopperRubber Stopper
-
13234001410 Flat Washer 10 mmFlat Washer 10 mm
-
14503183300 WasherWasher
-
15503160700 Rear AxleRear Axle
-
16503183000 Long SpacerLong Spacer
-
17503189075 Outer SpacerOuter Spacer
-
18503180400 WasherWasher
-
19503189475 Wheel 165 (Black). Includes 19 - 20.Wheel 165 (Black). Includes 19 - 20.
-
20405404500 Ball Bearing 6205Ball Bearing 6205
-
21234100602 Lock Spring Washer 10 mmLock Spring Washer 10 mm
-
22207103544 Hex. Screw M10 x 35Hex. Screw M10 x 35
-
23233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
24503153100 SpacerSpacer
-
25572048300 SpacerSpacer
-
26503189466 Shock SupportShock Support
-
27503188944 Wheel 139 (Black). Includes 27 - 28.Wheel 139 (Black). Includes 27 - 28.
-
28405404500 Ball Bearing 6205Ball Bearing 6205
-
29233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
30503189314 Labyrinth ShaftLabyrinth Shaft
-
31503174600 SupportSupport
-
32207088544 Hex. Screw M8 x 85Hex. Screw M8 x 85
-
33207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
34503183100 WasherWasher
-
35503188800 SpacerSpacer
-
36503154000 WasherWasher
-
37503188700 Wheel AxleWheel Axle
-
38503175400 Hard WasherHard Washer
-
39234181401 Lock Washer 8 mmLock Washer 8 mm
-
40207183044 Hex. Screw M8 x 30Hex. Screw M8 x 30
-
41503153600 Wheel Support AxleWheel Support Axle
-
42572043500 Idler Wheel Ass'y. Includes 42 - 43.Idler Wheel Ass'y. Includes 42 - 43.
-
43405404600 Ball Bearing 6202Ball Bearing 6202
-
44232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
45503174900 Lower AxleLower Axle
-
46250000019 Hex. Screw with NylonHex. Screw with Nylon
-
47234021410 Flat Washer 12 mmFlat Washer 12 mm
-
48572084800 Stopper ReinforcementStopper Reinforcement
-
49207054044 Hex. Screw M5 x 40Hex. Screw M5 x 40
-
50391301700 WasherWasher
-
51232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
52503188998 Wheel 139 Ass'y. Includes 52 - 53.Wheel 139 Ass'y. Includes 52 - 53.
-
53405404500 Ball Bearing 6205Ball Bearing 6205
-
54207124044 Hex. Screw M12 x 40Hex. Screw M12 x 40
-
55234081410 Flat Washer 8 mmFlat Washer 8 mm
-
56503189058 ReinforcementReinforcement
-
57207183044 Hex. Screw M8 x 30Hex. Screw M8 x 30
-
58293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
59234120602 Lock Spring Washer 12 mmLock Spring Washer 12 mm
-
60293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
61570063600 Wheel CapWheel Cap
-
62572089000 Labyrinth SealLabyrinth Seal
-
63503182900 Short SpacerShort Spacer
-
64503189476 Wheel 165 Ass'y. Includes 64 - 65.Wheel 165 Ass'y. Includes 64 - 65.
-
65405404500 Ball Bearing 6205Ball Bearing 6205
