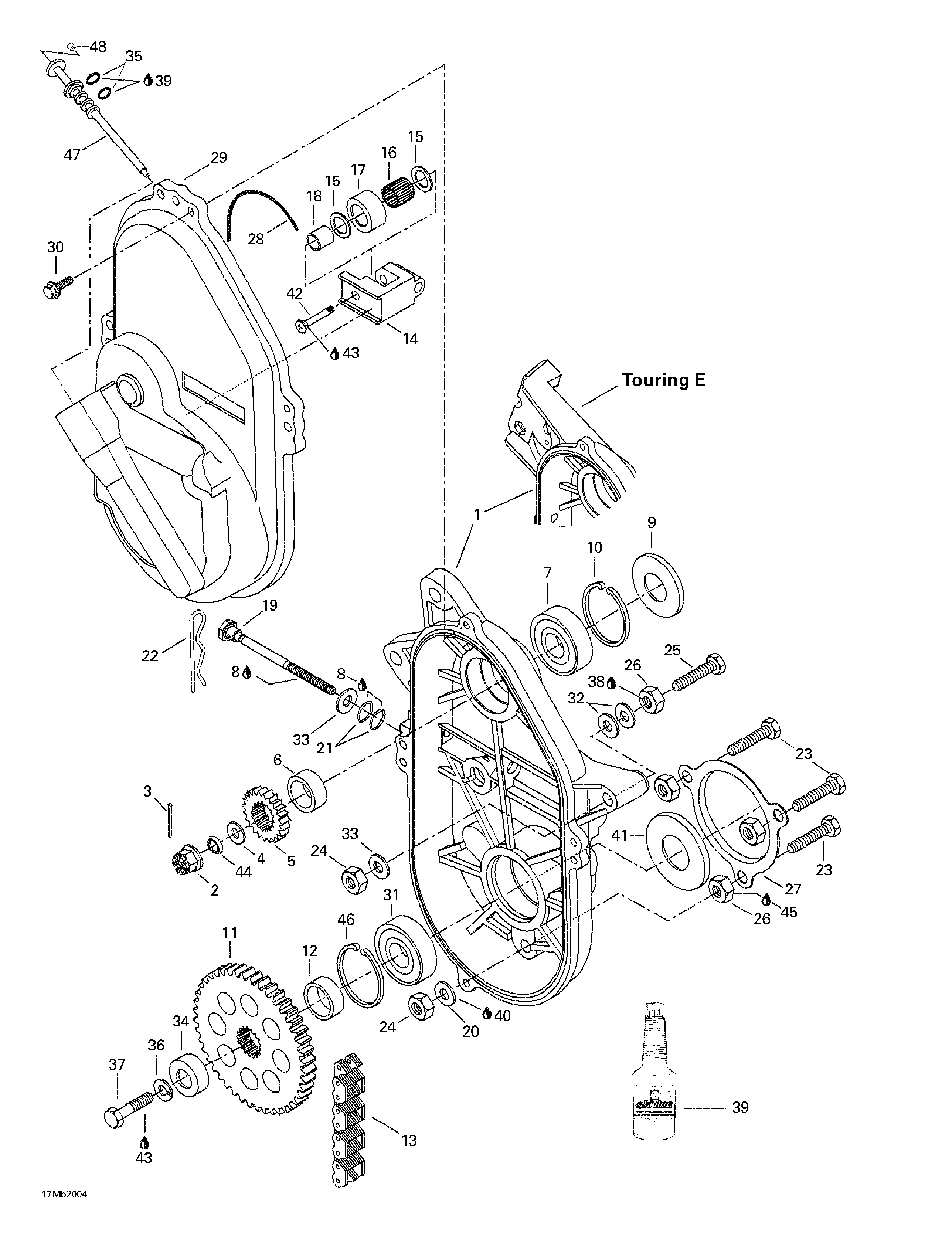

05- Chaincase для BRP Ski-Doo Touring LE - 2000
-
№АртикулНазвание
-
1504151786 Chaincase. Touring E.Chaincase. Touring E.
-
504151785 Chaincase. Touring E. Touring SLE. .Chaincase. Touring E. Touring SLE. .
-
2232210414 Castellated Nut M16Castellated Nut M16
-
3371801300 Cotter PinCotter Pin
-
4504087100 WasherWasher
-
5504070100 Sprocket (18 Tooth, Narrow). Touring E.Sprocket (18 Tooth, Narrow). Touring E.
-
504070100 Sprocket (18 Tooth, Narrow) (Europe). Touring SLE.Sprocket (18 Tooth, Narrow) (Europe). Touring SLE.
-
504091200 Sprocket (21 Tooth, Narrow). Touring LE. Touring SLE.Sprocket (21 Tooth, Narrow). Touring LE. Touring SLE.
-
6504093400 ShimShim
-
7405404400 Ball Bearing 6205Ball Bearing 6205
-
8219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
9414882800 SealSeal
-
10371901700 Circlip (interior)Circlip (interior)
-
11504070900 Sprocket Narrow (44 Tooth)Sprocket Narrow (44 Tooth)
-
12504146400 SpacerSpacer
-
13504151882 Driving Chain (70 Links-Narrow). Touring E.Driving Chain (70 Links-Narrow). Touring E.
-
504151882 Driving Chain (70 Links-Narrow) (Europe). Touring SLE.Driving Chain (70 Links-Narrow) (Europe). Touring SLE.
-
504151883 Driving Chain (72 Links-Narrow). Touring LE. Touring SLE.Driving Chain (72 Links-Narrow). Touring LE. Touring SLE.
-
14504081000 TensionerTensioner
-
15504080300 WasherWasher
-
16405403000 Needle BearingNeedle Bearing
-
17414531300 RollerRoller
-
18504080200 SpacerSpacer
-
19732601311 Adjusting ScrewAdjusting Screw
-
20234001460 Copper Flat Washer 10 mmCopper Flat Washer 10 mm
-
21414484400 O-RingO-Ring
-
22414575600 Hair PinHair Pin
-
23207104544 Hex. Screw M10 x 45Hex. Screw M10 x 45
-
24233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
25207107044 Hex. Screw M10 x 70Hex. Screw M10 x 70
-
26504083800 SpacerSpacer
-
27501022100 ProtectorProtector
-
28414362300 O-RingO-Ring
-
29080037100 Chaincase CoverChaincase Cover
-
30210263080 Hex. Forming Screw M6 x 30Hex. Forming Screw M6 x 30
-
31405404400 Ball Bearing 6205Ball Bearing 6205
-
32504073700 WasherWasher
-
33234001410 Flat Washer 10 mmFlat Washer 10 mm
-
34501026200 CapCap
-
35414969400 O-RingO-Ring
-
36234100602 Lock Spring Washer 10 mmLock Spring Washer 10 mm
-
37207102544 Hex. Screw M10 x 25Hex. Screw M10 x 25
-
38293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
39413803300 Synthetic Chaincase Oil,. 12 x 355 mlSynthetic Chaincase Oil,. 12 x 355 ml
-
40413702700 Loctite 515, 50 mlLoctite 515, 50 ml
-
41581101700 Oil SealOil Seal
-
42732601144 ScrewScrew
-
43293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
44417000900 Spring WasherSpring Washer
-
45293800023 Loctite 767, Antiseize Lubricant, 454 gLoctite 767, Antiseize Lubricant, 454 g
-
46371901700 Circlip (Interior)Circlip (Interior)
-
47572092700 Filler Cap. Includes 47 - 48.Filler Cap. Includes 47 - 48.
-
48206540490 Screw M4Screw M4
