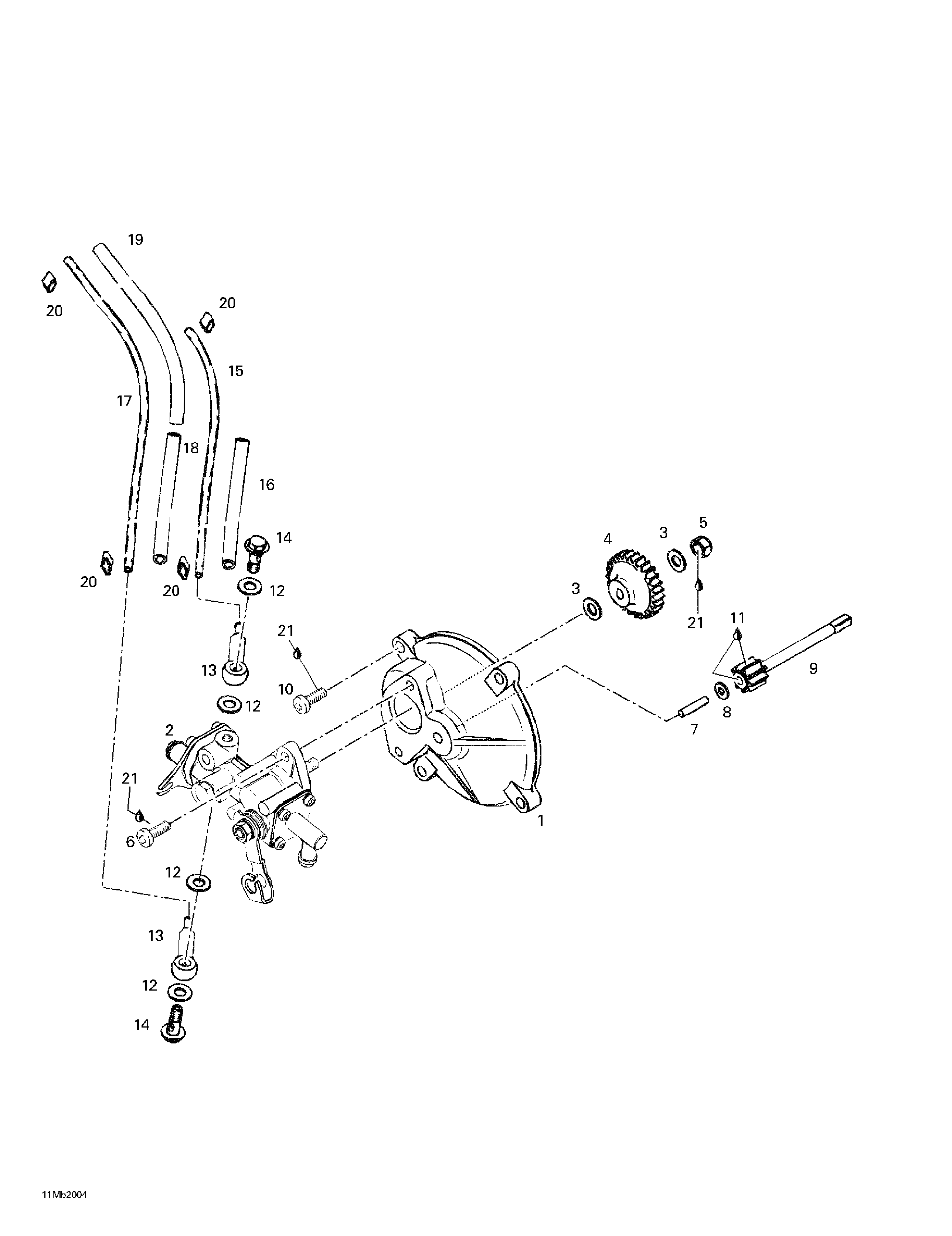

02- Oil Injection System для BRP Ski-Doo Touring LE - 2000
-
№АртикулНазвание
-
1420910160 Pump Mounting FlangePump Mounting Flange
-
2420887997 Oil Pump Ass'y. Touring E.Oil Pump Ass'y. Touring E.
-
420887996 Oil Pump Ass'y. Touring LE. Touring SLE.Oil Pump Ass'y. Touring LE. Touring SLE.
-
3420927945 Flat WasherFlat Washer
-
4420935930 Oil Pump Gear (27 Tooth)Oil Pump Gear (27 Tooth)
-
5232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6420841970 Plastite Screw M5.5 x 16Plastite Screw M5.5 x 16
-
7420832260 Needle PinNeedle Pin
-
8420244073 Washer 4.3 mmWasher 4.3 mm
-
9420935970 Gear (9 Tooth)Gear (9 Tooth)
-
10420841970 Screw M5.5 x 16Screw M5.5 x 16
-
11413707000 Molykote 111Molykote 111
-
12404146600 Sealing WasherSealing Washer
-
13420956010 Valve Ass'yValve Ass'y
-
14404146800 Banjo Bolt M6 x 16Banjo Bolt M6 x 16
-
15414413800 Oil LineOil Line
-
16420960750 Isolation Line 90 mmIsolation Line 90 mm
-
17414413800 Oil LineOil Line
-
18420960728 Isolation Line 120 mmIsolation Line 120 mm
-
19420960729 Isolation Hose 150 mmIsolation Hose 150 mm
-
20420853840 ClampClamp
-
21293800060 Loctite 243, 10 mlLoctite 243, 10 ml
