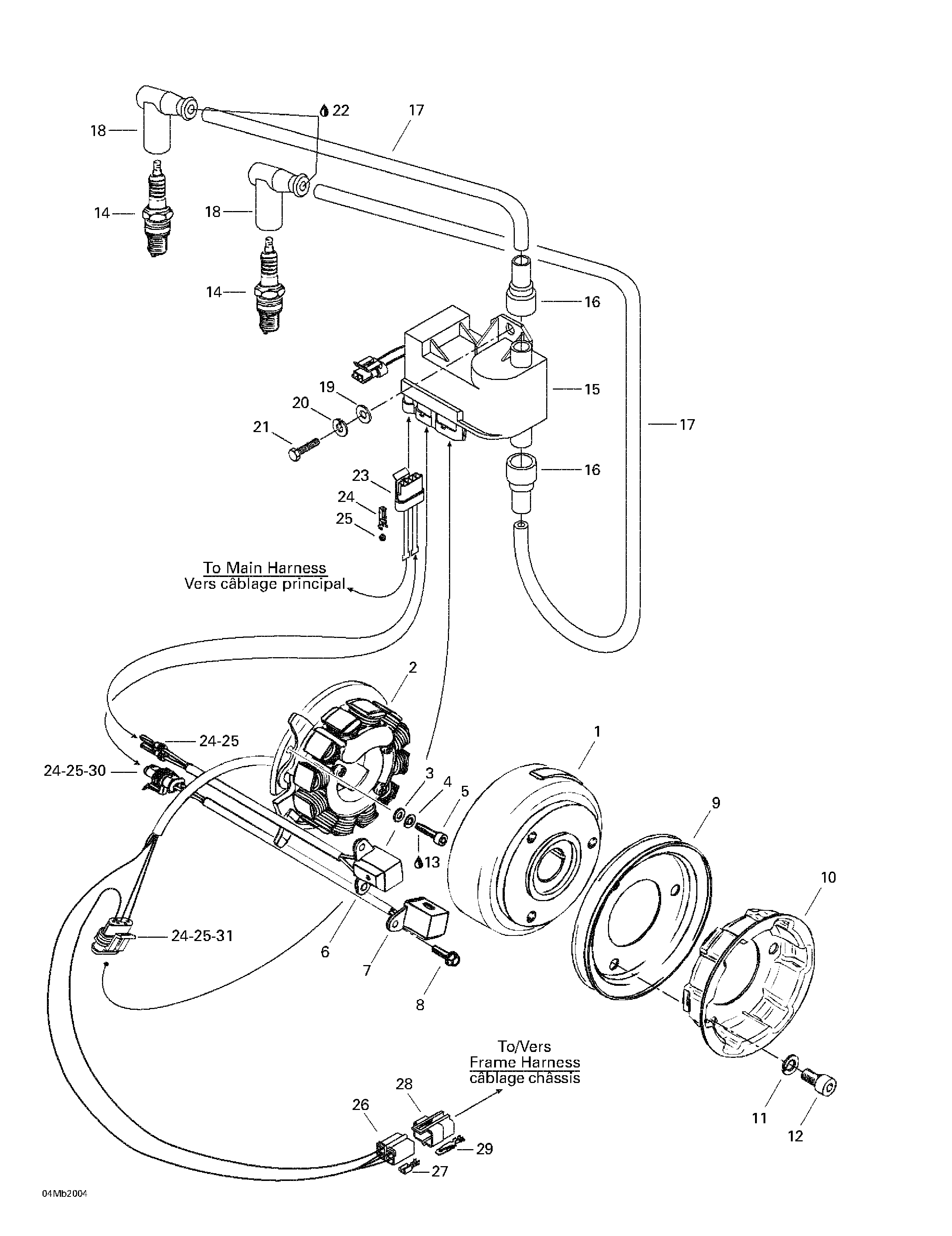

03- Magneto для BRP Ski-Doo Touring LE - 2000
-
№АртикулНазвание
-
1420887653 Magneto Ducati 12V, 240W. Includes 1 - 2.Magneto Ducati 12V, 240W. Includes 1 - 2.
-
1420996824 FlywheelFlywheel
-
2420886603 Stator Plate Ass'yStator Plate Ass'y
-
3420927571 Washer 5.3 mmWasher 5.3 mm
-
4420945750 Lock Washer 5 mmLock Washer 5 mm
-
5420840515 Socket Head Screw M5 x 18Socket Head Screw M5 x 18
-
6420966547 Pick-up Ass'yPick-up Ass'y
-
7420966545 Pick-up Ass'yPick-up Ass'y
-
8420941925 Taptite Screw M5 x 16Taptite Screw M5 x 16
-
9420980486 V-Belt PulleyV-Belt Pulley
-
10420852414 Rope SheaveRope Sheave
-
11420845311 Lock Washer 8 mmLock Washer 8 mm
-
12420841521 Socket Head Screw M8 x 12Socket Head Screw M8 x 12
-
13293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
14414961100 Spark Plug NGK BR9-ESSpark Plug NGK BR9-ES
-
15515175385 Calibration Module. Includes 15 - 18. Touring E.Calibration Module. Includes 15 - 18. Touring E.
-
512059169 Calibration Module. Touring LE.Calibration Module. Touring LE.
-
515175386 Calibration Module. Touring SLE.Calibration Module. Touring SLE.
-
16515174900 Protection CapProtection Cap
-
17278001268 Spark Plug WireSpark Plug Wire
-
18278000237 Spark Plug CapSpark Plug Cap
-
19234061410 Flat Washer 6 mmFlat Washer 6 mm
-
20234161471 Lock Washer 6 mmLock Washer 6 mm
-
21207161644 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
22219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
23409209700 Female Connector Housing (4 circuits)Female Connector Housing (4 circuits)
-
24278001014 Female TerminalFemale Terminal
-
25278001013 SealSeal
-
26409204900 Female Connector Housing (4 circuits)Female Connector Housing (4 circuits)
-
27515175253 Female TerminalFemale Terminal
-
28409209300 Male Connector Housing (4 circuits)Male Connector Housing (4 circuits)
-
29409210000 Male TerminalMale Terminal
-
30409209500 Female Connector Housing (2 circuits)Female Connector Housing (2 circuits)
-
31409209600 Female Connector Housing (3 circuits)Female Connector Housing (3 circuits)
