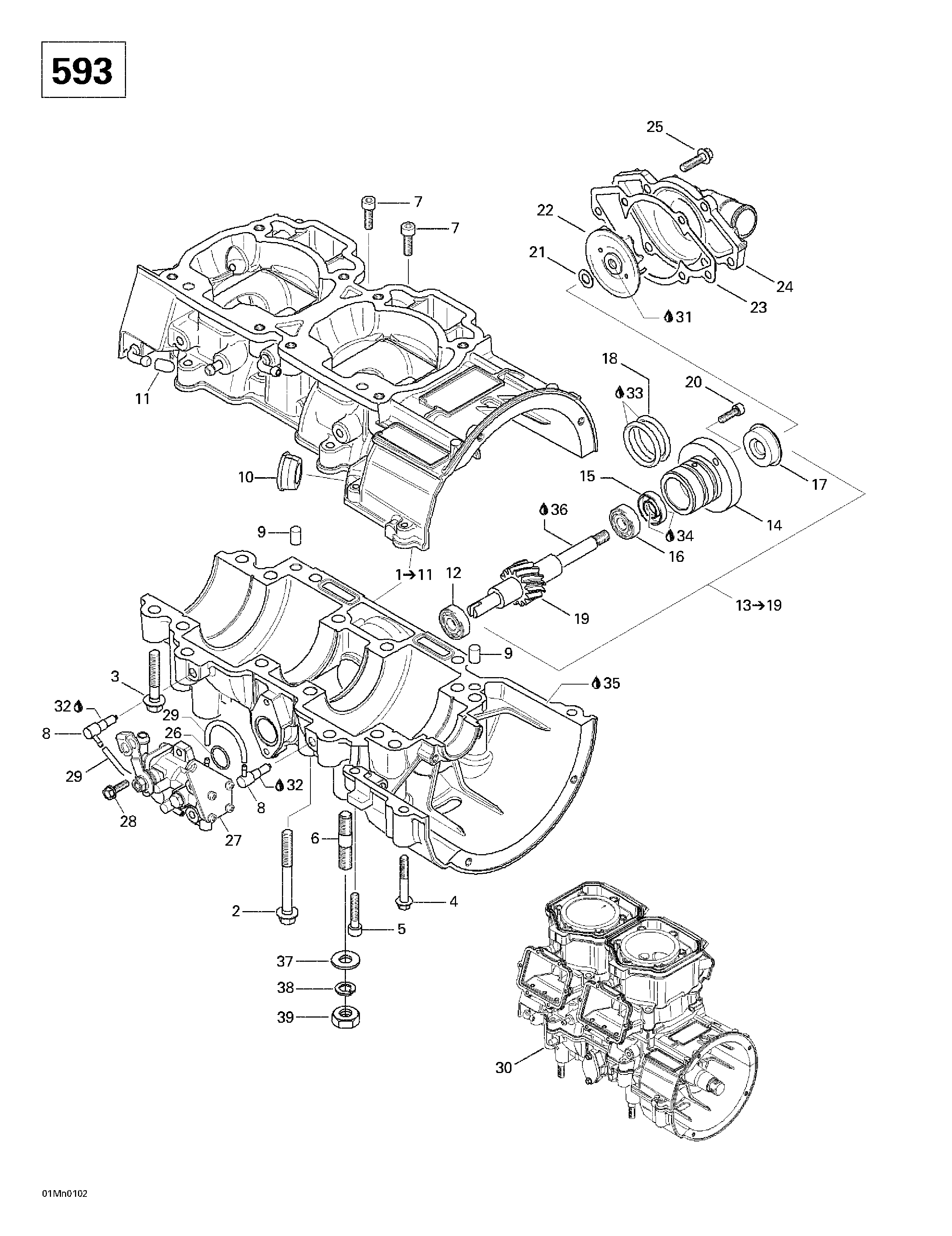

01- Crankcase, Rotary Valve, Water Pump (593) для BRP Ski-Doo Skandic 500F/600 - 2001
-
№АртикулНазвание
-
1420888761 Crankcase Ass'y (600). Includes 1 - 11. Skandic 600.Crankcase Ass'y (600). Includes 1 - 11. Skandic 600.
-
2420640836 Hex. Collar Screw M8 x 75. Skandic 600.Hex. Collar Screw M8 x 75. Skandic 600.
-
3420640431 Hex. Collar Screw M8 x 45. Skandic 600.Hex. Collar Screw M8 x 45. Skandic 600.
-
4420640311 Hex. Collar Screw M6 x 45. Skandic 600.Hex. Collar Screw M6 x 45. Skandic 600.
-
5205063044 Socket Head Screw M6 x 30. Skandic 600.Socket Head Screw M6 x 30. Skandic 600.
-
6420941644 Stud M10 x 23. Skandic 600.Stud M10 x 23. Skandic 600.
-
7205062044 Socket Screw M6 x 20. Skandic 600.Socket Screw M6 x 20. Skandic 600.
-
8420956510 Check Valve. Skandic 600.Check Valve. Skandic 600.
-
9420632010 Dowel Pin. Skandic 600.Dowel Pin. Skandic 600.
-
10420860965 Cable Grommet. Skandic 600.Cable Grommet. Skandic 600.
-
11420960770 Cap. Skandic 600.Cap. Skandic 600.
-
12420232100 Ball Bearing. Skandic 600.Ball Bearing. Skandic 600.
-
13420837421 Water Pump/Oil Pump Ass'y. Includes 13 - 19. Skandic 600.Water Pump/Oil Pump Ass'y. Includes 13 - 19. Skandic 600.
-
15420230195 Oil Seal. Skandic 600.Oil Seal. Skandic 600.
-
16420232100 Ball Bearing. Skandic 600.Ball Bearing. Skandic 600.
-
17420650370 Rotary Seal. Skandic 600.Rotary Seal. Skandic 600.
-
18420950890 O-Ring. Skandic 600.O-Ring. Skandic 600.
-
20420840511 Socket Head Screw M5 x 16. Skandic 600.Socket Head Screw M5 x 16. Skandic 600.
-
21420227945 Washer. Skandic 600.Washer. Skandic 600.
-
22420222505 Water Impeller. Skandic 600.Water Impeller. Skandic 600.
-
23420931810 Gasket. Skandic 600.Gasket. Skandic 600.
-
24420922630 Water Pump Housing. Skandic 600.Water Pump Housing. Skandic 600.
-
25420240031 Hex. Screw M6 x 25. Skandic 600.Hex. Screw M6 x 25. Skandic 600.
-
26420230400 O-Ring. Skandic 600.O-Ring. Skandic 600.
-
27420888260 Oil Pump Ass'y (600). Skandic 600.Oil Pump Ass'y (600). Skandic 600.
-
28420941925 Screw M5 x 16. Skandic 600.Screw M5 x 16. Skandic 600.
-
29414413800 Oil Line. Skandic 600.Oil Line. Skandic 600.
-
30420059303 Short Block Ass'y (600). Skandic 600.Short Block Ass'y (600). Skandic 600.
-
31293800060 Loctite 243, 10 ml. Skandic 600.Loctite 243, 10 ml. Skandic 600.
-
32413711400 Loctite 648, 10 ml. Skandic 600.Loctite 648, 10 ml. Skandic 600.
-
33413707000 Molykote 111. Skandic 600.Molykote 111. Skandic 600.
-
34420899271 Petamo Grease, GHY133N, 400 g. Skandic 600.Petamo Grease, GHY133N, 400 g. Skandic 600.
-
35420297906 Sealing Compound, 30 ml. Skandic 600.Sealing Compound, 30 ml. Skandic 600.
-
36413802900 Injection Oil (12 x 1 liter). Skandic 600.Injection Oil (12 x 1 liter). Skandic 600.
-
37234001410 Flat Washer 10 mm. Skandic 600.Flat Washer 10 mm. Skandic 600.
-
38234100602 Lock Spring Washer 10 mm. Skandic 600.Lock Spring Washer 10 mm. Skandic 600.
-
39232006414 Hex. Nut M10. Skandic 600.Hex. Nut M10. Skandic 600.
