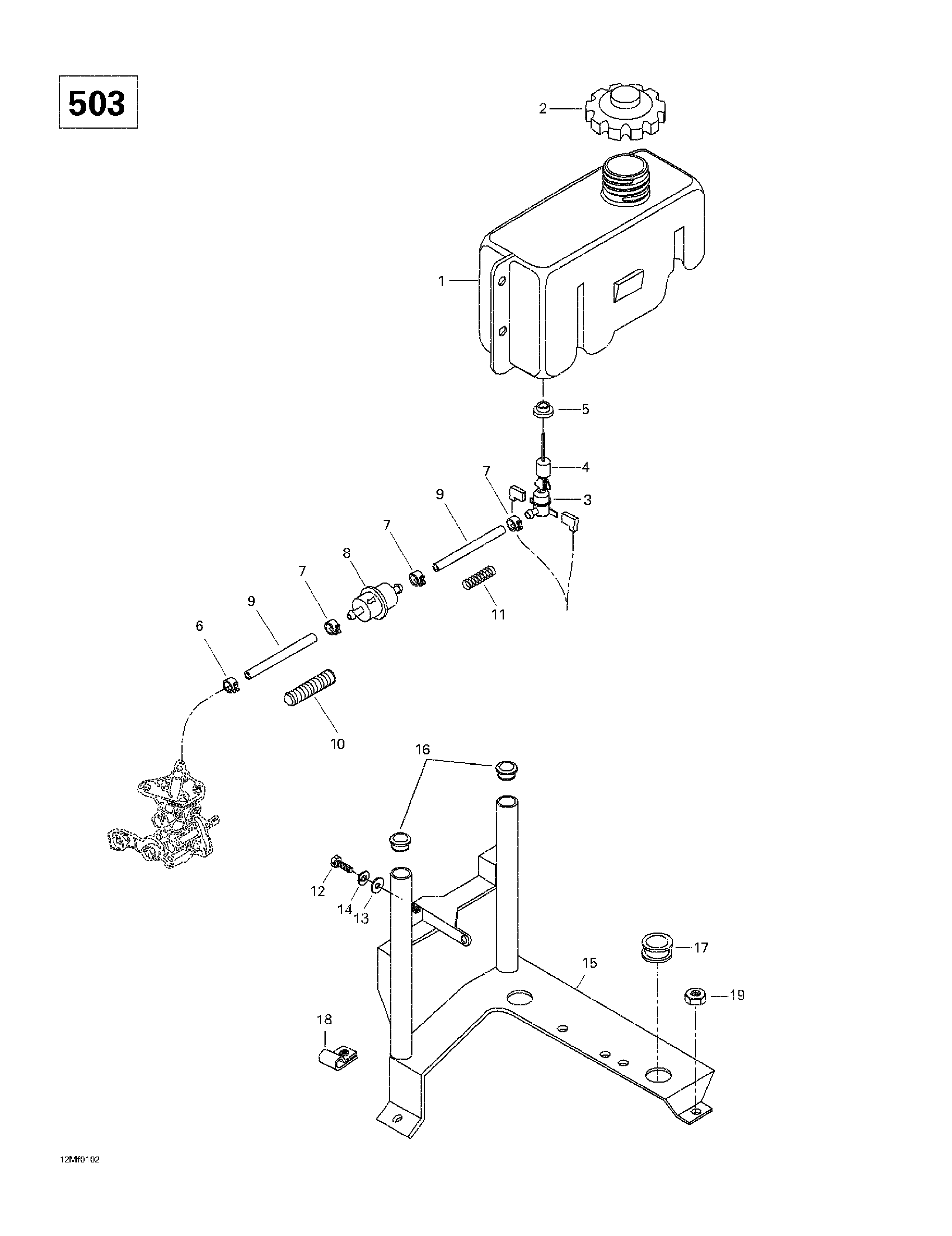

02- Oil Tank And Support (503) для BRP Ski-Doo Skandic 500F/600 - 2001
-
№АртикулНазвание
-
1M5142700 Oil Tank. Skandic 500F. Skandic 500F (SWT).Oil Tank. Skandic 500F. Skandic 500F (SWT).
-
2572071000 Oil Tank Cap. Skandic 500F. Skandic 500F (SWT).Oil Tank Cap. Skandic 500F. Skandic 500F (SWT).
-
3414681800 Oil Level Sensor. Skandic 500F. Skandic 500F (SWT).Oil Level Sensor. Skandic 500F. Skandic 500F (SWT).
-
4414681900 Float. Skandic 500F. Skandic 500F (SWT).Float. Skandic 500F. Skandic 500F (SWT).
-
5570023000 Grommet. Skandic 500F. Skandic 500F (SWT).Grommet. Skandic 500F. Skandic 500F (SWT).
-
6414420700 Universal Spring Clamp. Skandic 500F. Skandic 500F (SWT).Universal Spring Clamp. Skandic 500F. Skandic 500F (SWT).
-
7M27119F Universal Spring Clamp. Skandic 500F. Skandic 500F (SWT).Universal Spring Clamp. Skandic 500F. Skandic 500F (SWT).
-
8414536500 Filter. Skandic 500F. Skandic 500F (SWT).Filter. Skandic 500F. Skandic 500F (SWT).
-
9415080700 Oil Line. Skandic 500F. Skandic 500F (SWT).Oil Line. Skandic 500F. Skandic 500F (SWT).
-
10M28015 Housing. Skandic 500F. Skandic 500F (SWT).Housing. Skandic 500F. Skandic 500F (SWT).
-
12207161644 Hex Screw M6 x 16. Skandic 500F. Skandic 500F (SWT).Hex Screw M6 x 16. Skandic 500F. Skandic 500F (SWT).
-
13M2009 Washer. Skandic 500F. Skandic 500F (SWT).Washer. Skandic 500F. Skandic 500F (SWT).
-
14234161471 Lock Washer 6 mm. Skandic 500F. Skandic 500F (SWT).Lock Washer 6 mm. Skandic 500F. Skandic 500F (SWT).
-
15M5342647 Support. Skandic 500F. Skandic 500F (SWT).Support. Skandic 500F. Skandic 500F (SWT).
-
16M28136 Plug. Skandic 500F. Skandic 500F (SWT).Plug. Skandic 500F. Skandic 500F (SWT).
-
17M28022 Grommet. Skandic 500F. Skandic 500F (SWT).Grommet. Skandic 500F. Skandic 500F (SWT).
-
18M27092 Clip. Skandic 500F. Skandic 500F (SWT).Clip. Skandic 500F. Skandic 500F (SWT).
-
19M33200 Nut M6. Skandic 500F. Skandic 500F (SWT).Nut M6. Skandic 500F. Skandic 500F (SWT).
