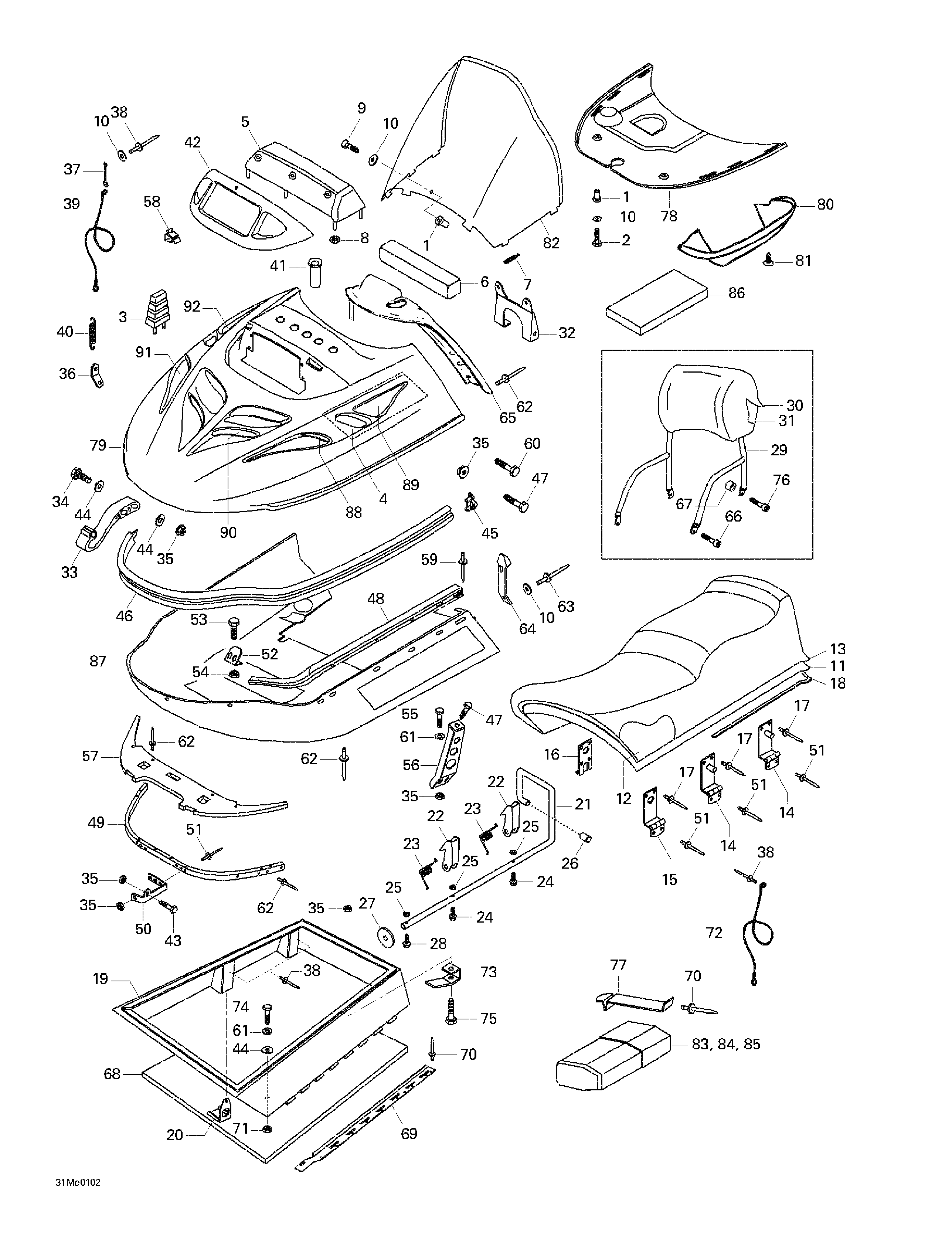

09- Cab, Console, Seat для BRP Ski-Doo Skandic 500F/600 - 2001
-
№АртикулНазвание
-
1M28050 Weld Nut. Skandic 500F. Skandic 600.Weld Nut. Skandic 500F. Skandic 600.
-
2M40808 Screw M5 x 30. Skandic 500F. Skandic 600.Screw M5 x 30. Skandic 500F. Skandic 600.
-
3M5443136 Windshield Support. Skandic 500F. Skandic 600.Windshield Support. Skandic 500F. Skandic 600.
-
4M5443578 Reflect Sheat. Skandic 500F. Skandic 600.Reflect Sheat. Skandic 500F. Skandic 600.
-
5M5142624 Intake Cover. Skandic 500F. Skandic 600.Intake Cover. Skandic 500F. Skandic 600.
-
6M5343135 Filter. Skandic 500F. Skandic 600.Filter. Skandic 500F. Skandic 600.
-
7570023800 Windshield Latch. Skandic 500F. Skandic 600.Windshield Latch. Skandic 500F. Skandic 600.
-
8m36084 Washer. Skandic 500F. Skandic 600.Washer. Skandic 500F. Skandic 600.
-
9M40358 Screw M5 x 30. Skandic 500F. Skandic 600.Screw M5 x 30. Skandic 500F. Skandic 600.
-
10M20008 Washer. Skandic 500F. Skandic 600.Washer. Skandic 500F. Skandic 600.
-
11M519394 Sub-Seat. Skandic 500F. Skandic 600.Sub-Seat. Skandic 500F. Skandic 600.
-
12M5244982 Seat Foam. Skandic 500F. Skandic 600.Seat Foam. Skandic 500F. Skandic 600.
-
13M5245382 Seat Cover. Skandic 500F. Skandic 600.Seat Cover. Skandic 500F. Skandic 600.
-
14M549874 Hinge. Skandic 500F. Skandic 600.Hinge. Skandic 500F. Skandic 600.
-
15M5440581 Hinge. Skandic 500F. Skandic 600.Hinge. Skandic 500F. Skandic 600.
-
16M549732 Ressort. Skandic 500F. Skandic 600.Ressort. Skandic 500F. Skandic 600.
-
17M36043 Rivet. Skandic 500F. Skandic 600.Rivet. Skandic 500F. Skandic 600.
-
18M5440059 Cushion. Skandic 500F. Skandic 600.Cushion. Skandic 500F. Skandic 600.
-
19M5142066 Seat Base. Skandic 500F. Skandic 600.Seat Base. Skandic 500F. Skandic 600.
-
20M5443661 Support. Skandic 500F. Skandic 600.Support. Skandic 500F. Skandic 600.
-
21M5344987 Pivot Pin. Skandic 500F. Skandic 600.Pivot Pin. Skandic 500F. Skandic 600.
-
22M5443664 Lock Tongue. Skandic 500F. Skandic 600.Lock Tongue. Skandic 500F. Skandic 600.
-
23M5444439 Spring. Skandic 500F. Skandic 600.Spring. Skandic 500F. Skandic 600.
-
24M40146 Allen Screw M4 x 20. Skandic 500F. Skandic 600.Allen Screw M4 x 20. Skandic 500F. Skandic 600.
-
25232541414 Elastic Stop Nut M4. Skandic 500F. Skandic 600.Elastic Stop Nut M4. Skandic 500F. Skandic 600.
-
26M28019 Cap. Skandic 500F. Skandic 600.Cap. Skandic 500F. Skandic 600.
-
27234081410 Washer. Skandic 500F. Skandic 600.Washer. Skandic 500F. Skandic 600.
-
28M40144 Screw. Skandic 500F. Skandic 600.Screw. Skandic 500F. Skandic 600.
-
29M539877 Backrest. Skandic 500F. Skandic 600.Backrest. Skandic 500F. Skandic 600.
-
30M539399 Backrest Foam. Skandic 500F. Skandic 600.Backrest Foam. Skandic 500F. Skandic 600.
-
31M5340917 Backrest Cover. Skandic 500F. Skandic 600.Backrest Cover. Skandic 500F. Skandic 600.
-
32M5343120 Support. Skandic 500F. Skandic 600.Support. Skandic 500F. Skandic 600.
-
33M5343075 Hinge. Skandic 500F. Skandic 600.Hinge. Skandic 500F. Skandic 600.
-
34M40193 Screw M6 x 50. Skandic 500F. Skandic 600.Screw M6 x 50. Skandic 500F. Skandic 600.
-
35M33200 Nut. Skandic 500F. Skandic 600.Nut. Skandic 500F. Skandic 600.
-
36M5443123 Spring Plate. Skandic 500F. Skandic 600.Spring Plate. Skandic 500F. Skandic 600.
-
37M5442870 Cable Keeper. Skandic 500F. Skandic 600.Cable Keeper. Skandic 500F. Skandic 600.
-
38M36005 Rivet. Skandic 500F. Skandic 600.Rivet. Skandic 500F. Skandic 600.
-
39M5342674 Retainer Cable. Skandic 500F. Skandic 600.Retainer Cable. Skandic 500F. Skandic 600.
-
40M5442675 Spring. Skandic 500F. Skandic 600.Spring. Skandic 500F. Skandic 600.
-
41M5444445 Pipe. Skandic 500F. Skandic 600.Pipe. Skandic 500F. Skandic 600.
-
42572079200 Lamp Moulding. Skandic 500F. Skandic 600.Lamp Moulding. Skandic 500F. Skandic 600.
-
43M40084 Screw M6 x 45. Skandic 500F. Skandic 600.Screw M6 x 45. Skandic 500F. Skandic 600.
-
44M20009 Washer. Skandic 500F. Skandic 600.Washer. Skandic 500F. Skandic 600.
-
M20009 Washer. Skandic 500F. Skandic 600.Washer. Skandic 500F. Skandic 600.
-
45M549096R Cap R.H. Skandic 500F. Skandic 600.Cap R.H. Skandic 500F. Skandic 600.
-
M549096L Cap L.H. Skandic 500F. Skandic 600.Cap L.H. Skandic 500F. Skandic 600.
-
46M5242798 Front Bumper. Skandic 500F. Skandic 600.Front Bumper. Skandic 500F. Skandic 600.
-
47M40078 Screw M6 x 22. Skandic 500F. Skandic 600.Screw M6 x 22. Skandic 500F. Skandic 600.
-
48M5242803 Guide-Hood L.H.. Skandic 500F. Skandic 600.Guide-Hood L.H.. Skandic 500F. Skandic 600.
-
M5242804 Guide-Hood R.H.. Skandic 500F. Skandic 600.Guide-Hood R.H.. Skandic 500F. Skandic 600.
-
49M5142799 Front Support. Skandic 500F. Skandic 600.Front Support. Skandic 500F. Skandic 600.
-
50M5342234 Hinge. Skandic 500F. Skandic 600.Hinge. Skandic 500F. Skandic 600.
-
M5342345 Hinge. Skandic 500F. Skandic 600.Hinge. Skandic 500F. Skandic 600.
-
51M36489 Rivet. Skandic 500F. Skandic 600.Rivet. Skandic 500F. Skandic 600.
-
52M5443217 Guide-Hood. Skandic 500F. Skandic 600.Guide-Hood. Skandic 500F. Skandic 600.
-
53M40247 Screw M5 x 16. Skandic 500F. Skandic 600.Screw M5 x 16. Skandic 500F. Skandic 600.
-
54M33062 Nut M5. Skandic 500F. Skandic 600.Nut M5. Skandic 500F. Skandic 600.
-
55M40332 Screw. Skandic 500F. Skandic 600.Screw. Skandic 500F. Skandic 600.
-
56M5342509 Bumper support. Skandic 500F. Skandic 600.Bumper support. Skandic 500F. Skandic 600.
-
57M5142623 Hinge Protector. Skandic 500F. Skandic 600.Hinge Protector. Skandic 500F. Skandic 600.
-
58414227300 Clip. Skandic 500F. Skandic 600.Clip. Skandic 500F. Skandic 600.
-
59M36003 Rivet. Skandic 500F. Skandic 600.Rivet. Skandic 500F. Skandic 600.
-
60207162544 Screw M6 x 25. Skandic 500F. Skandic 600.Screw M6 x 25. Skandic 500F. Skandic 600.
-
61234161471 Lock Washer. Skandic 500F. Skandic 600.Lock Washer. Skandic 500F. Skandic 600.
-
62M36036 Rivet. Skandic 500F. Skandic 600.Rivet. Skandic 500F. Skandic 600.
-
63M36009 Rivet. Skandic 500F. Skandic 600.Rivet. Skandic 500F. Skandic 600.
-
64M5342952 Hood Latch. Skandic 500F. Skandic 600.Hood Latch. Skandic 500F. Skandic 600.
-
65M5341435 Dash. Skandic 500F.Dash. Skandic 500F.
-
M5346367 Dash. Skandic 600.Dash. Skandic 600.
-
66205082044 Socket Head Screw M8 x 20. Skandic 500F. Skandic 600.Socket Head Screw M8 x 20. Skandic 500F. Skandic 600.
-
67M5440665 Spacer. Skandic 500F. Skandic 600.Spacer. Skandic 500F. Skandic 600.
-
68M5344621 Cushion. Skandic 500F.Cushion. Skandic 500F.
-
M5146367 Cushion. Skandic 600.Cushion. Skandic 600.
-
69M5144029 R.H. Support. Skandic 500F. Skandic 600.R.H. Support. Skandic 500F. Skandic 600.
-
M5144028 L.H. Support. Skandic 500F. Skandic 600.L.H. Support. Skandic 500F. Skandic 600.
-
70M36083 Rivet. Skandic 500F. Skandic 600.Rivet. Skandic 500F. Skandic 600.
-
71M33066 Nut M6. Skandic 500F. Skandic 600.Nut M6. Skandic 500F. Skandic 600.
-
72M546777 Retainer Cable. Skandic 500F. Skandic 600.Retainer Cable. Skandic 500F. Skandic 600.
-
74M40052 Socket Head Screw M6 x 20. Skandic 500F. Skandic 600.Socket Head Screw M6 x 20. Skandic 500F. Skandic 600.
-
75M40149 Socket Head Screw M6 x 30. Skandic 500F.Socket Head Screw M6 x 30. Skandic 500F.
-
76M40135 Socket Head Screw M8 X 30. Skandic 500F. Skandic 600.Socket Head Screw M8 X 30. Skandic 500F. Skandic 600.
-
77M5344443 Spring. Skandic 500F. Skandic 600.Spring. Skandic 500F. Skandic 600.
-
78M5142622 Air Duct. Skandic 500F.Air Duct. Skandic 500F.
-
79M5146010 Hood. Skandic 500F.Hood. Skandic 500F.
-
M5146008 Hood. Skandic 600.Hood. Skandic 600.
-
80M5144412 Air Duct. Skandic 500F.Air Duct. Skandic 500F.
-
81414644300 Dart. Skandic 500F.Dart. Skandic 500F.
-
82M5245105 Windshield. Skandic 500F. Skandic 600.Windshield. Skandic 500F. Skandic 600.
-
83572036310 Tool Box Ass'y. Skandic 500F. Skandic 600.Tool Box Ass'y. Skandic 500F. Skandic 600.
-
84572036400 Tool Box. Skandic 500F. Skandic 600.Tool Box. Skandic 500F. Skandic 600.
-
85M5445400 Tool Kit. Skandic 500F. Skandic 600.Tool Kit. Skandic 500F. Skandic 600.
-
86414631900 Acoustic Foam. Skandic 500F. Skandic 600.Acoustic Foam. Skandic 500F. Skandic 600.
-
87M5144049 Bottom Pan (Black). Skandic 500F.Bottom Pan (Black). Skandic 500F.
-
M5146366 Bottom Pan (Black). Skandic 600.Bottom Pan (Black). Skandic 600.
-
88M5242672 Lower Grill R.H. Skandic 500F. Skandic 600.Lower Grill R.H. Skandic 500F. Skandic 600.
-
M5342673 Lower Grill L.H. Skandic 500F. Skandic 600.Lower Grill L.H. Skandic 500F. Skandic 600.
-
89M5242671 Upper Grill R.H. Skandic 500F.Upper Grill R.H. Skandic 500F.
-
M5242670 Upper Grill L.H. Skandic 500F. Skandic 600.Upper Grill L.H. Skandic 500F. Skandic 600.
-
90M5142669 Front Grill. Skandic 500F. Skandic 600.Front Grill. Skandic 500F. Skandic 600.
-
91M5343409 Cover Fan. Skandic 600.Cover Fan. Skandic 600.
-
92M5343408 Cover Plate L.H. Skandic 600.Cover Plate L.H. Skandic 600.
-
M5342990 Cover Plate R.H. Skandic 600.Cover Plate R.H. Skandic 600.
