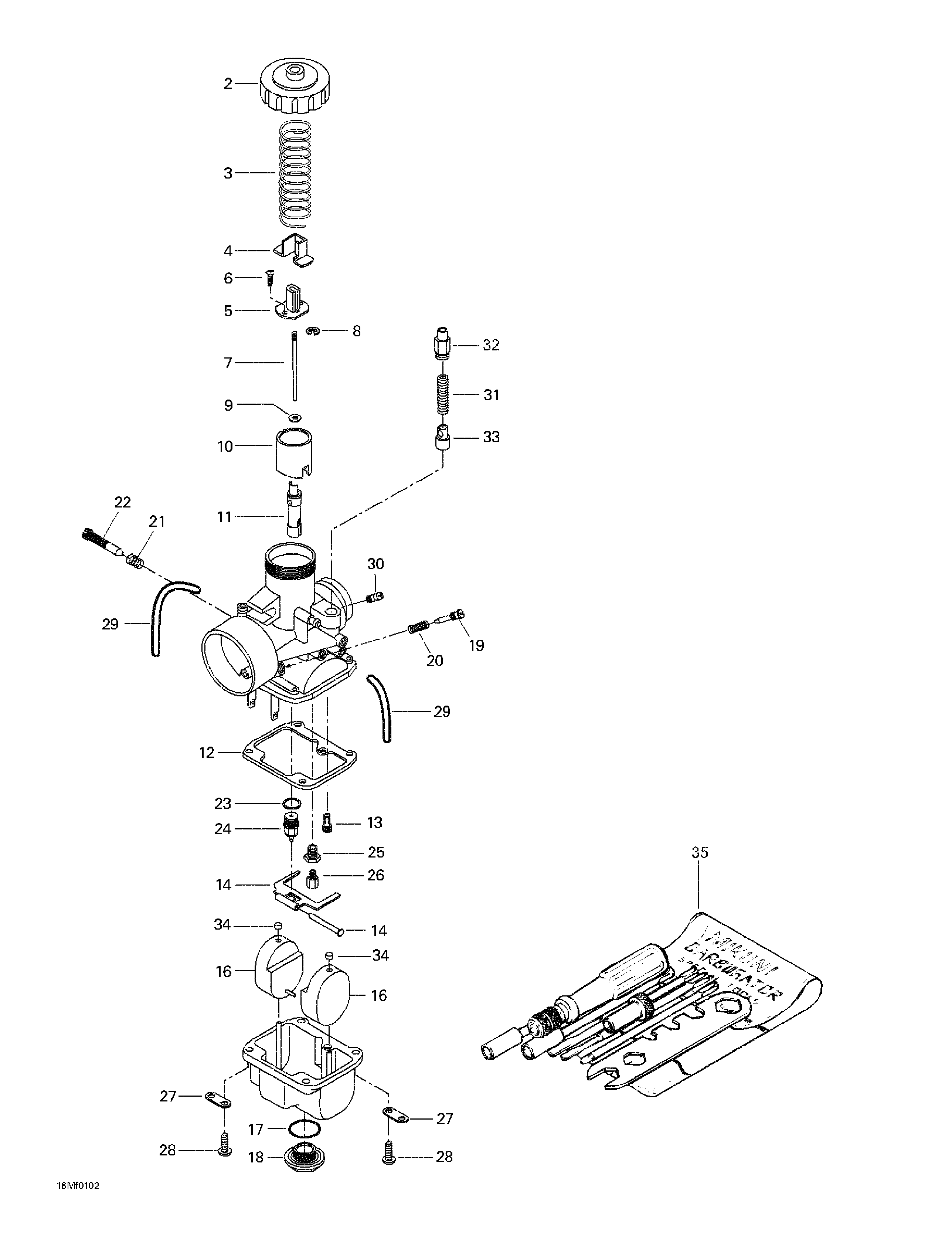

02- Carburetors для BRP Ski-Doo Skandic 500F/600 - 2001

№

Артикул

Название
1

M19084 Carburetor VM 34. Includes 1 - 35. Skandic 500F. Skandic 500F (SWT).

Carburetor VM 34. Includes 1 - 35. Skandic 500F. Skandic 500F (SWT).

0 ₽
M19112 Carburetor VM 38-444 (MAG). Skandic 600.

Carburetor VM 38-444 (MAG). Skandic 600.

0 ₽
M19111 Carburetor VM 38-443 (PTO). Skandic 600.

Carburetor VM 38-443 (PTO). Skandic 600.

0 ₽
2

404103700 Cover. Skandic 500F. Skandic 500F (SWT).

Cover. Skandic 500F. Skandic 500F (SWT).

2 760 ₽
404105100 Cover. Skandic 600.

Cover. Skandic 600.

5 570 ₽
3

404154800 Throttle Valve Spring

Throttle Valve Spring

8 330 ₽
4

404122100 Cover

Cover

1 660 ₽
5

404160800 Connector

Connector

1 400 ₽
6

404121300 Screw with Washer

Screw with Washer

410 ₽
7

404110400 Jet Needle J8 6DH2. Skandic 500F. Skandic 500F (SWT).

Jet Needle J8 6DH2. Skandic 500F. Skandic 500F (SWT).

1 660 ₽
404114100 Jet Needle J8 6FL14. Skandic 600.

Jet Needle J8 6FL14. Skandic 600.

1 080 ₽
8

404152400 E-Ring

E-Ring

620 ₽
9

404117000 Packing

Packing

1 230 ₽
10

404128400 Throttle Valve CA 2.5

Throttle Valve CA 2.5

11 010 ₽
11

404157100 Needle Jet NJ 159. Skandic 500F. Skandic 500F (SWT).

Needle Jet NJ 159. Skandic 500F. Skandic 500F (SWT).

1 430 ₽
404161805 Needle Jet. Skandic 600.

Needle Jet. Skandic 600.

1 610 ₽
12

404104200 Gasket Pan. Skandic 500F. Skandic 500F (SWT).

Gasket Pan. Skandic 500F. Skandic 500F (SWT).

1 660 ₽
404104700 Gasket Pan. Skandic 600.

Gasket Pan. Skandic 600.

1 380 ₽
13

404109100 Pilot Jet PJ 40

Pilot Jet PJ 40

1 840 ₽
14

404103300 Float Arm Pin

Float Arm Pin

620 ₽
15

404107600 Float Arm. Skandic 500F. Skandic 500F (SWT).

Float Arm. Skandic 500F. Skandic 500F (SWT).

2 100 ₽
404105000 Float Arm. Skandic 600.

Float Arm. Skandic 600.

2 100 ₽
16

404107100 Float. Skandic 500F. Skandic 500F (SWT).

Float. Skandic 500F. Skandic 500F (SWT).

2 510 ₽
404105400 Float. Skandic 600.

Float. Skandic 600.

2 510 ₽
17

404107300 O'Ring. Skandic 500F. Skandic 500F (SWT).

O'Ring. Skandic 500F. Skandic 500F (SWT).

680 ₽
404101500 O'Ring. Skandic 600.

O'Ring. Skandic 600.

390 ₽
18

404107400 Plug Screw. Skandic 500F. Skandic 500F (SWT).

Plug Screw. Skandic 500F. Skandic 500F (SWT).

2 100 ₽
404105600 Plug Screw. Skandic 600.

Plug Screw. Skandic 600.

2 670 ₽
19

404102300 Idle Adjusting Screw. Skandic 500F. Skandic 500F (SWT).

Idle Adjusting Screw. Skandic 500F. Skandic 500F (SWT).

1 280 ₽
404149000 Idle Adjusting Screw. Skandic 600.

Idle Adjusting Screw. Skandic 600.

2 670 ₽
20

404101800 Idle Adjusting Screw Spring. Skandic 500F. Skandic 500F (SWT).

Idle Adjusting Screw Spring. Skandic 500F. Skandic 500F (SWT).

390 ₽
404139800 Idle Adjusting Screw Spring. Skandic 600.

Idle Adjusting Screw Spring. Skandic 600.

700 ₽
21

404101700 Throttle Stop Screw Spring

Throttle Stop Screw Spring

1 580 ₽
22

404102800 Throttle Stop Screw

Throttle Stop Screw

1 400 ₽
23

404101600 Washer

Washer

820 ₽
24

404103200 Needle Valve 1.5

Needle Valve 1.5

2 760 ₽
25

404105500 Guide Screw

Guide Screw

2 760 ₽
26

404119500 Main Jet MJ 185. Skandic 500F. Skandic 500F (SWT).

Main Jet MJ 185. Skandic 500F. Skandic 500F (SWT).

480 ₽
404107800 Main Jet MJ 310 (MAG). Skandic 600.

Main Jet MJ 310 (MAG). Skandic 600.

700 ₽
404101400 Main Jet MJ 330 (PTO). Skandic 600.

Main Jet MJ 330 (PTO). Skandic 600.

2 710 ₽
27

404103000 Plate

Plate

920 ₽
28

404102000 Screw and Lock Washer

Screw and Lock Washer

290 ₽
29

404160100 Air Vent Tube

Air Vent Tube

800 ₽
30

404127600 Nipple. Skandic 500F. Skandic 500F (SWT).

Nipple. Skandic 500F. Skandic 500F (SWT).

800 ₽
404153400 Nipple. Skandic 600.

Nipple. Skandic 600.

1 080 ₽
31

404127400 Spring

Spring

940 ₽
32

404161100 Support-Guide

Support-Guide

3 020 ₽
33

404160400 Plunger Ass'y

Plunger Ass'y

2 720 ₽
34

404105800 Cap

Cap

580 ₽
35

404112000 Tool Kit

Tool Kit

7 730 ₽
