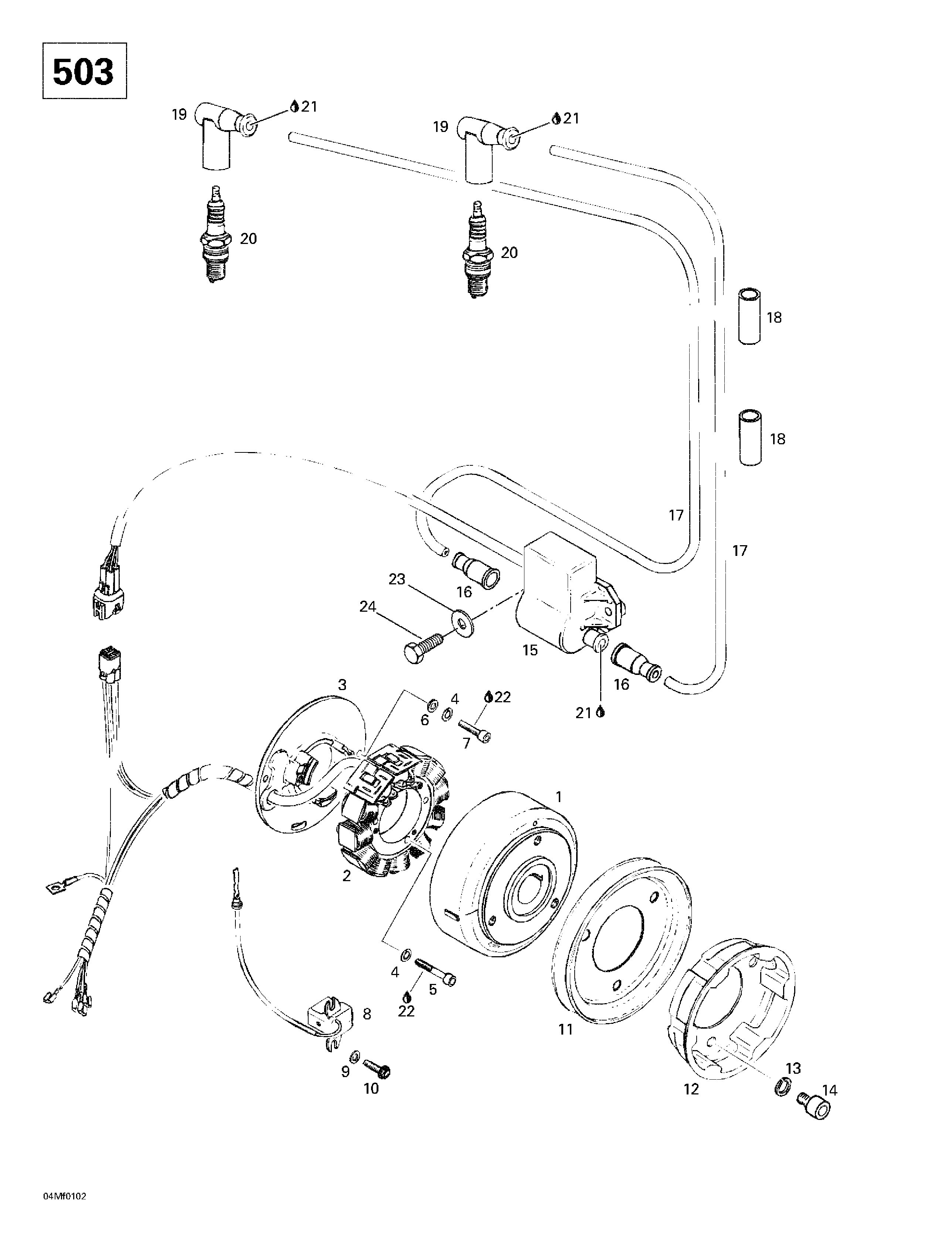

03- Magneto (503) для BRP Ski-Doo Skandic 500F/600 - 2001
-
№АртикулНазвание
-
1420996824 Magneto Flywheel. Skandic 500F. Skandic 500F (SWT).Magneto Flywheel. Skandic 500F. Skandic 500F (SWT).
-
2420886605 Stator Plate Ass'y. 12V240W. Includes 2 - 5. Skandic 500F. Skandic 500F (SWT).Stator Plate Ass'y. 12V240W. Includes 2 - 5. Skandic 500F. Skandic 500F (SWT).
-
4420945750 Lock Washer 5 mm. Skandic 500F. Skandic 500F (SWT).Lock Washer 5 mm. Skandic 500F. Skandic 500F (SWT).
-
5420940880 Socket Head Screw M5 x 30. Skandic 500F. Skandic 500F (SWT).Socket Head Screw M5 x 30. Skandic 500F. Skandic 500F (SWT).
-
6420927571 Washer 5 mm. Skandic 500F. Skandic 500F (SWT).Washer 5 mm. Skandic 500F. Skandic 500F (SWT).
-
7420840515 Socket Head Screw M5 x 18. Skandic 500F. Skandic 500F (SWT).Socket Head Screw M5 x 18. Skandic 500F. Skandic 500F (SWT).
-
8420965763 Pick-up Ass'y. Skandic 500F. Skandic 500F (SWT).Pick-up Ass'y. Skandic 500F. Skandic 500F (SWT).
-
9420827800 Washer. Skandic 500F. Skandic 500F (SWT).Washer. Skandic 500F. Skandic 500F (SWT).
-
10420941925 Taptite Screw M5 x 16. Skandic 500F. Skandic 500F (SWT).Taptite Screw M5 x 16. Skandic 500F. Skandic 500F (SWT).
-
11420980486 V-Belt Pulley. Skandic 500F. Skandic 500F (SWT).V-Belt Pulley. Skandic 500F. Skandic 500F (SWT).
-
12420852414 Starting Pulley. Skandic 500F. Skandic 500F (SWT).Starting Pulley. Skandic 500F. Skandic 500F (SWT).
-
13420845311 Lock Washer. Skandic 500F. Skandic 500F (SWT).Lock Washer. Skandic 500F. Skandic 500F (SWT).
-
14420841521 Socket Head Screw M8 x 12. Skandic 500F. Skandic 500F (SWT).Socket Head Screw M8 x 12. Skandic 500F. Skandic 500F (SWT).
-
15420965757 Electronic Box Ass'y. Includes 15 - 19. Skandic 500F. Skandic 500F (SWT).Electronic Box Ass'y. Includes 15 - 19. Skandic 500F. Skandic 500F (SWT).
-
16410112600 Protection Cap. Skandic 500F. Skandic 500F (SWT).Protection Cap. Skandic 500F. Skandic 500F (SWT).
-
17278001268 Ignition Cable 690 mm. Skandic 500F. Skandic 500F (SWT).Ignition Cable 690 mm. Skandic 500F. Skandic 500F (SWT).
-
18540806051 Protection Hose. Skandic 500F. Skandic 500F (SWT).Protection Hose. Skandic 500F. Skandic 500F (SWT).
-
19278000237 Spark Plug Protector. Skandic 500F. Skandic 500F (SWT).Spark Plug Protector. Skandic 500F. Skandic 500F (SWT).
-
20414961100 Spark Plug NGK BR9 ES. Skandic 500F. Skandic 500F (SWT).Spark Plug NGK BR9 ES. Skandic 500F. Skandic 500F (SWT).
-
21293550004 Grease Dielectric. Skandic 500F. Skandic 500F (SWT).Grease Dielectric. Skandic 500F. Skandic 500F (SWT).
-
22293800060 Loctite 243, 10 ml. Skandic 500F. Skandic 500F (SWT).Loctite 243, 10 ml. Skandic 500F. Skandic 500F (SWT).
-
23234061410 Lock Washer 6 mm. Skandic 500F. Skandic 500F (SWT).Lock Washer 6 mm. Skandic 500F. Skandic 500F (SWT).
-
24207162044 Hex. Screw M6 x 20. Skandic 500F. Skandic 500F (SWT).Hex. Screw M6 x 20. Skandic 500F. Skandic 500F (SWT).
