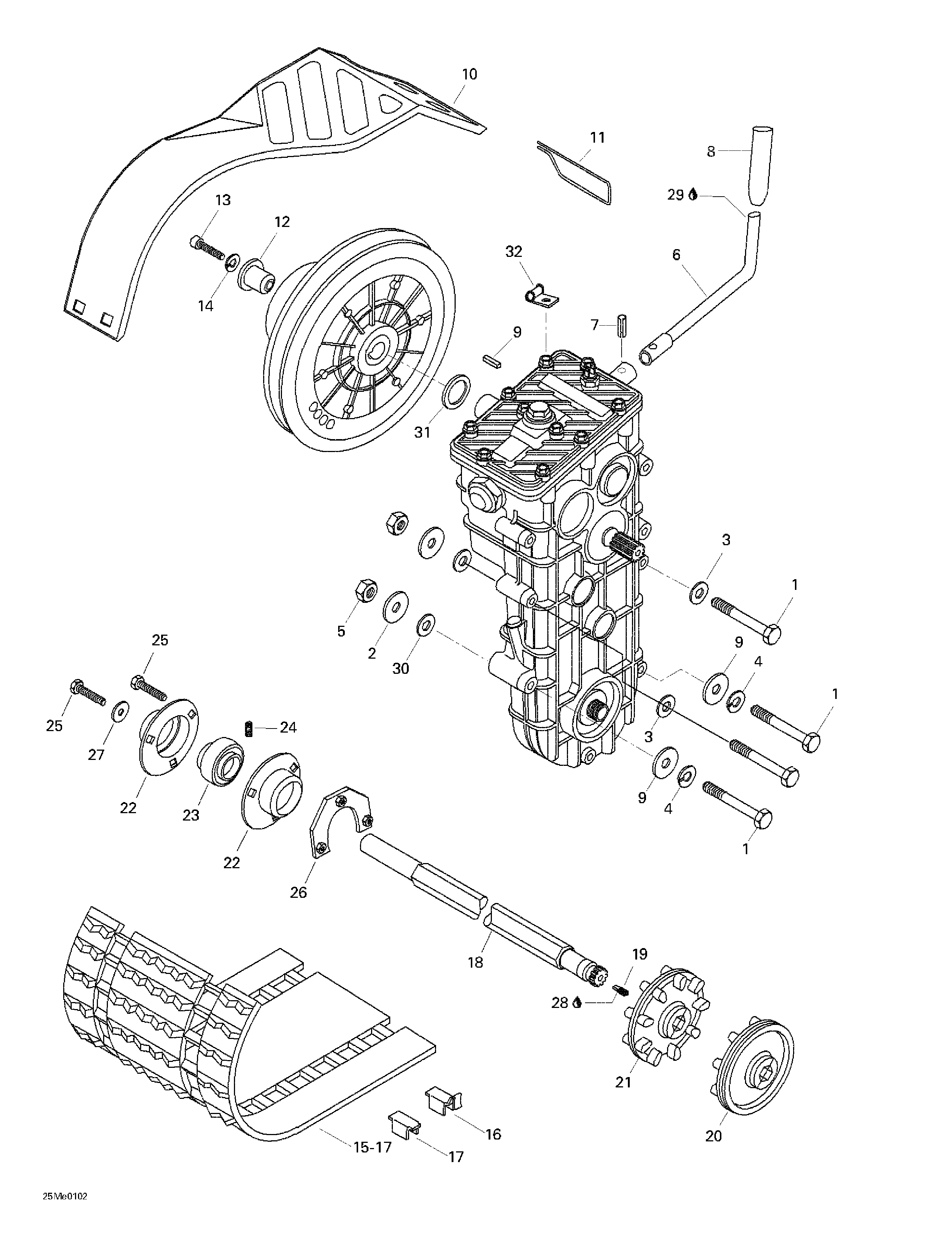

05- Drive Axle, Track And Belt Guard для BRP Ski-Doo Skandic 500F/600 - 2001
-
№АртикулНазвание
-
1M40012 Screw M8 x 80Screw M8 x 80
-
2M20010 WasherWasher
-
3M2004 WasherWasher
-
4234181401 Lock Washer 8 mmLock Washer 8 mm
-
5232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
6M5340902 Arm ShifterArm Shifter
-
7M41008 Pin Spring. Skandic 500F. Skandic 500F (SWT).Pin Spring. Skandic 500F. Skandic 500F (SWT).
-
M41007 Pin Spring. Skandic 600.Pin Spring. Skandic 600.
-
8M28247 Arm Shifter BallArm Shifter Ball
-
9M418763 KeyKey
-
10M5142660 Belt GuardBelt Guard
-
11M5442726 PinPin
-
12M5443201 Shaft Extension. Skandic 500F. Skandic 600.Shaft Extension. Skandic 500F. Skandic 600.
-
M5443765 Shaft Extension. Skandic 500F (SWT).Shaft Extension. Skandic 500F (SWT).
-
13M40286 Socket Head Screw M8 x 45. Skandic 500F. Skandic 600.Socket Head Screw M8 x 45. Skandic 500F. Skandic 600.
-
M40290 Socket Head Screw M8 x 55. Skandic 500F (SWT).Socket Head Screw M8 x 55. Skandic 500F (SWT).
-
14234181401 Lock Washer 8 mmLock Washer 8 mm
-
15M13055 Track Ass'y. Includes 15 - 17. Skandic 500F.Track Ass'y. Includes 15 - 17. Skandic 500F.
-
M13056 Track Ass'y. Skandic 500F (SWT).Track Ass'y. Skandic 500F (SWT).
-
M13067 Track Ass'y. Skandic 600.Track Ass'y. Skandic 600.
-
16M5318323 Guide CleatGuide Cleat
-
17M5318322 CleatCleat
-
18M5341662 Drive Axle. Skandic 500F.Drive Axle. Skandic 500F.
-
M539815 Drive Axle. Skandic 500F (SWT).Drive Axle. Skandic 500F (SWT).
-
M5345117 Drive Axle. Skandic 600.Drive Axle. Skandic 600.
-
19M542013 NippleNipple
-
20M5342920 Half Sprocket. Skandic 500F. Skandic 500F (SWT).Half Sprocket. Skandic 500F. Skandic 500F (SWT).
-
415067400 Half Sprocket. Skandic 600.Half Sprocket. Skandic 600.
-
21M539750 Sprocket. Skandic 500F. Skandic 500F (SWT).Sprocket. Skandic 500F. Skandic 500F (SWT).
-
414931800 Sprocket. Skandic 600.Sprocket. Skandic 600.
-
22M534430 Ball Bearing Housing Ass'yBall Bearing Housing Ass'y
-
23M31UC205 Ball BearingBall Bearing
-
24M10531 ScrewScrew
-
25M40336 Screw M8 x 20Screw M8 x 20
-
26M546421 Half RingHalf Ring
-
27M546336 WasherWasher
-
28293800005 Loctite 271, 10mlLoctite 271, 10ml
-
29293800060 Loctite 243, 10mlLoctite 243, 10ml
-
30M20077 Washer. Skandic 500F. Skandic 600.Washer. Skandic 500F. Skandic 600.
-
31M3125351 Shim. Skandic 500F (SWT).Shim. Skandic 500F (SWT).
-
32M5443134 Wire Holder. Skandic 600.Wire Holder. Skandic 600.
