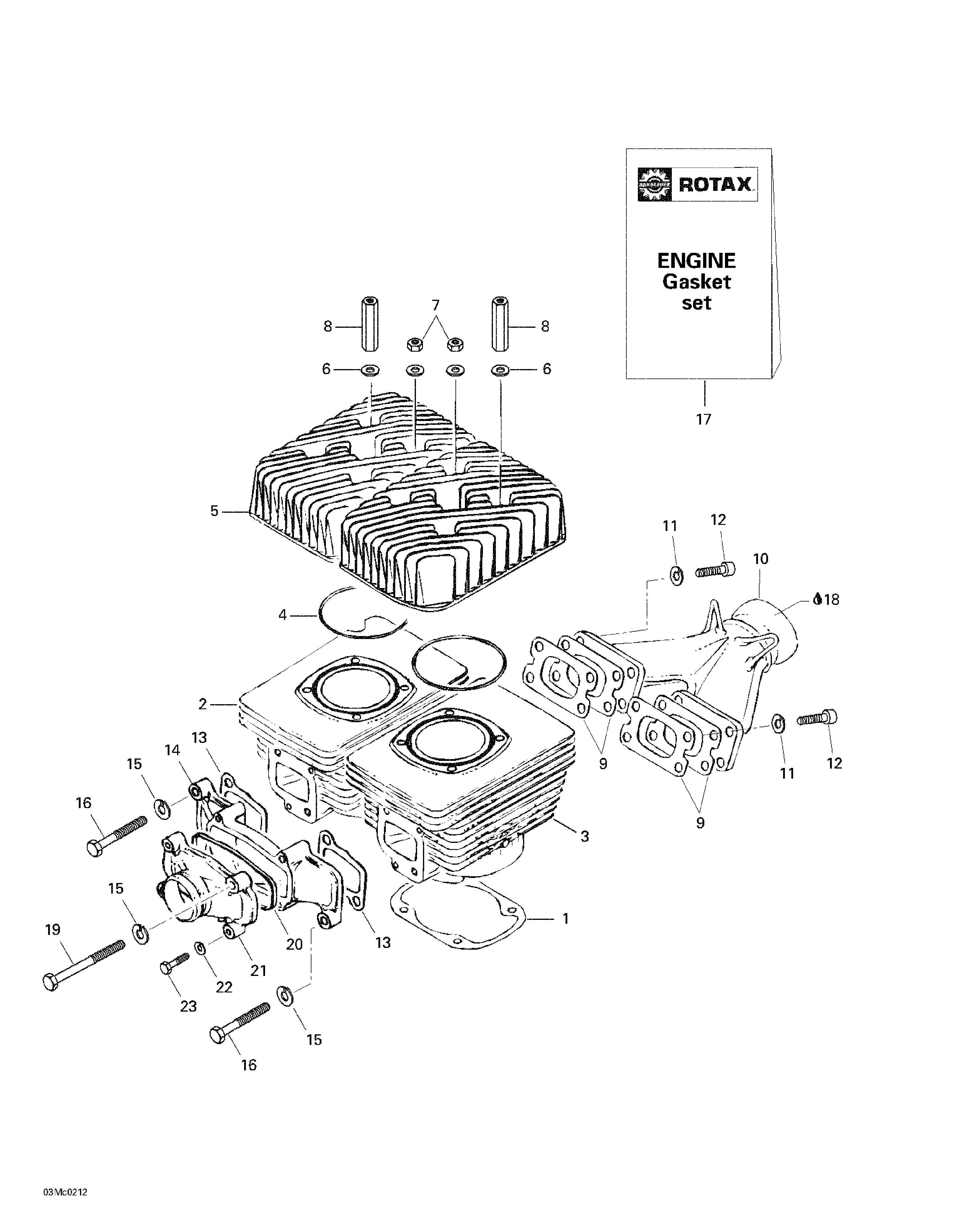

01- Cylinder, Exhaust Manifold для BRP Ski-Doo Skandic 440 - 2002
-
№АртикулНазвание
-
1420931782 Gasket 0.6 mmGasket 0.6 mm
-
420931781 Gasket 0.4 mmGasket 0.4 mm
-
420931780 Gasket 0.3 mmGasket 0.3 mm
-
2420923790 Cylinder with Sleeve, PTOCylinder with Sleeve, PTO
-
3420923795 Cylinder with Sleeve, MAGCylinder with Sleeve, MAG
-
4420931380 O-RingO-Ring
-
5420923377 Cylinder HeadCylinder Head
-
6420250311 Washer 8.4 mmWasher 8.4 mm
-
7232081414 Nut Hex. M8Nut Hex. M8
-
8420842208 Distance Nut M8Distance Nut M8
-
9420850114 Gasket 1.0 mmGasket 1.0 mm
-
10420879459 Exhaust Manifold Ass'yExhaust Manifold Ass'y
-
11420945752 Lock Washer 8 mmLock Washer 8 mm
-
12205083044 Allen Screw M8 x 30Allen Screw M8 x 30
-
13420831867 Intake Gasket 1.0 mmIntake Gasket 1.0 mm
-
14420867435 Intake Socket Ass'yIntake Socket Ass'y
-
15420945752 Lock Washer 8 mmLock Washer 8 mm
-
16207083544 Hex. Screw M8 x 35Hex. Screw M8 x 35
-
17420994232 Engine Gasket SetEngine Gasket Set
-
18293800090 Sealant, Loctite 17914, 80 mlSealant, Loctite 17914, 80 ml
-
19420841201 Hex. Screw M8 x 70Hex. Screw M8 x 70
-
20420850190 Rubber RingRubber Ring
-
21420867442 Intake CoverIntake Cover
-
22420945751 Lock Washer 6 mmLock Washer 6 mm
-
23207162544 Hex. Screw M6 x 25Hex. Screw M6 x 25
