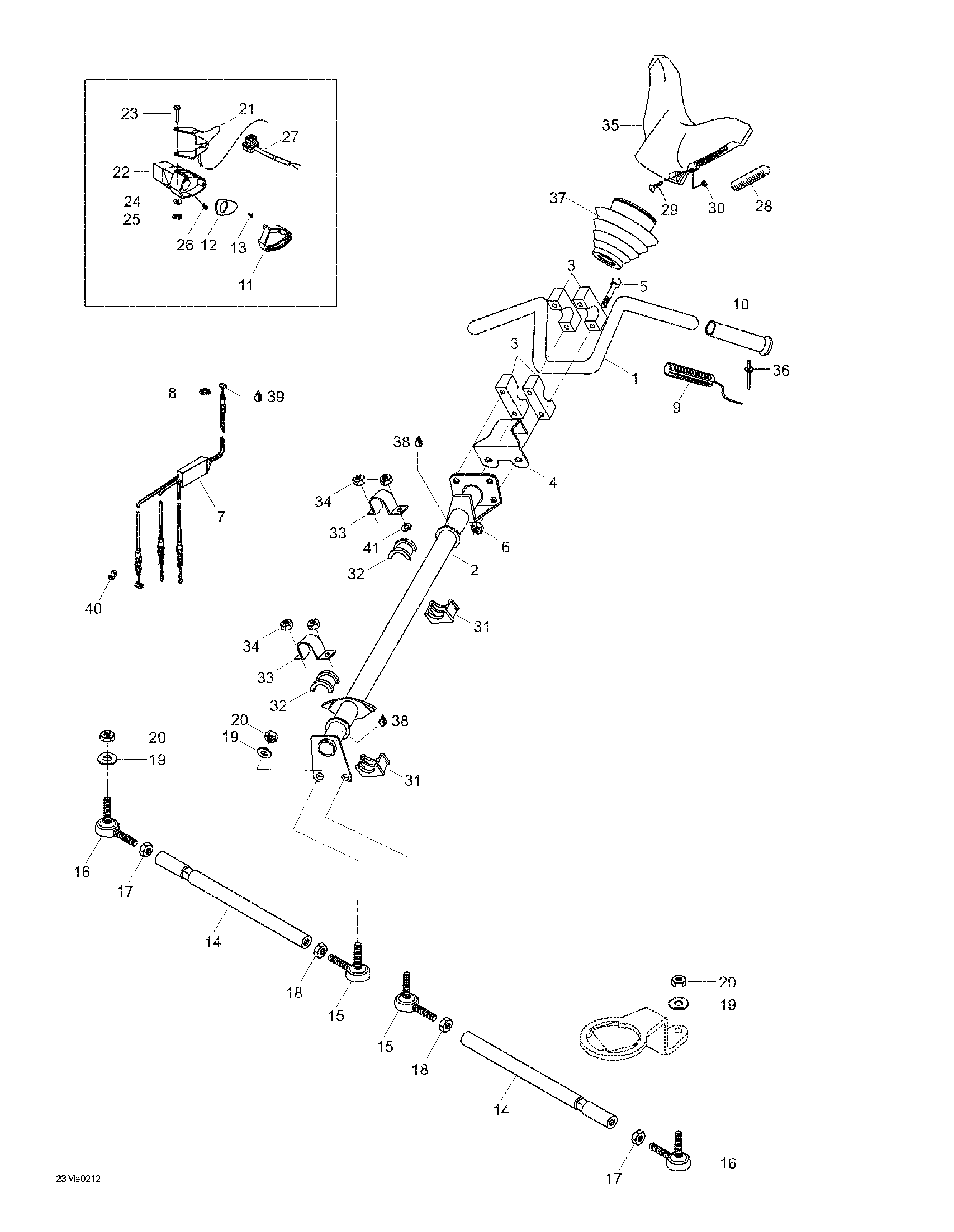

07- Steering System для BRP Ski-Doo Skandic 440 - 2002
-
№АртикулНазвание
-
1M529751 Handle BarHandle Bar
-
2M5245963 Main TubeMain Tube
-
3M548448 Steering ClampSteering Clamp
-
4M5444196 SupportSupport
-
5M40286 Allen Screw M8 x 45Allen Screw M8 x 45
-
6232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
7M5145673 Throttle CableThrottle Cable
-
8M31038 CirclipCirclip
-
9M5446341 Heater ElementHeater Element
-
10M5340464 GripGrip
-
11572069300 Throttle CoverThrottle Cover
-
12512059507 PlatePlate
-
13414473200 ScrewScrew
-
14M548983 R.H. Tie RodR.H. Tie Rod
-
15506151495 L.H. Ball JointL.H. Ball Joint
-
16506151492 R.H. Ball JointR.H. Ball Joint
-
17M33019 R.H. NutR.H. Nut
-
18M33017 L.H. NutL.H. Nut
-
19M20047 Lock WasherLock Washer
-
20M33023 NutNut
-
21M5442276 Heat Throttle Handle Ass'yHeat Throttle Handle Ass'y
-
22512059334 Throttle Handle HousingThrottle Handle Housing
-
23414438700 PinPin
-
24414438900 WasherWasher
-
25414439000 CirclipCirclip
-
26414440800 Set Screw M8 x 10Set Screw M8 x 10
-
27414612700 Kill SwitchKill Switch
-
28572023900 Key WayKey Way
-
29M40156 ScrewScrew
-
30M33062 Nut M5Nut M5
-
31572064400 BushingBushing
-
32572064500 BushingBushing
-
33M5343381 Retaining SupportRetaining Support
-
34M33201 Elastic Stop Nut M8Elastic Stop Nut M8
-
35572044500 Steering PaddingSteering Padding
-
36M36005 RivetRivet
-
37M539033 BellowBellow
-
38219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
39293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
40M31035 CirclipCirclip
-
41M31081 Lock WasherLock Washer
