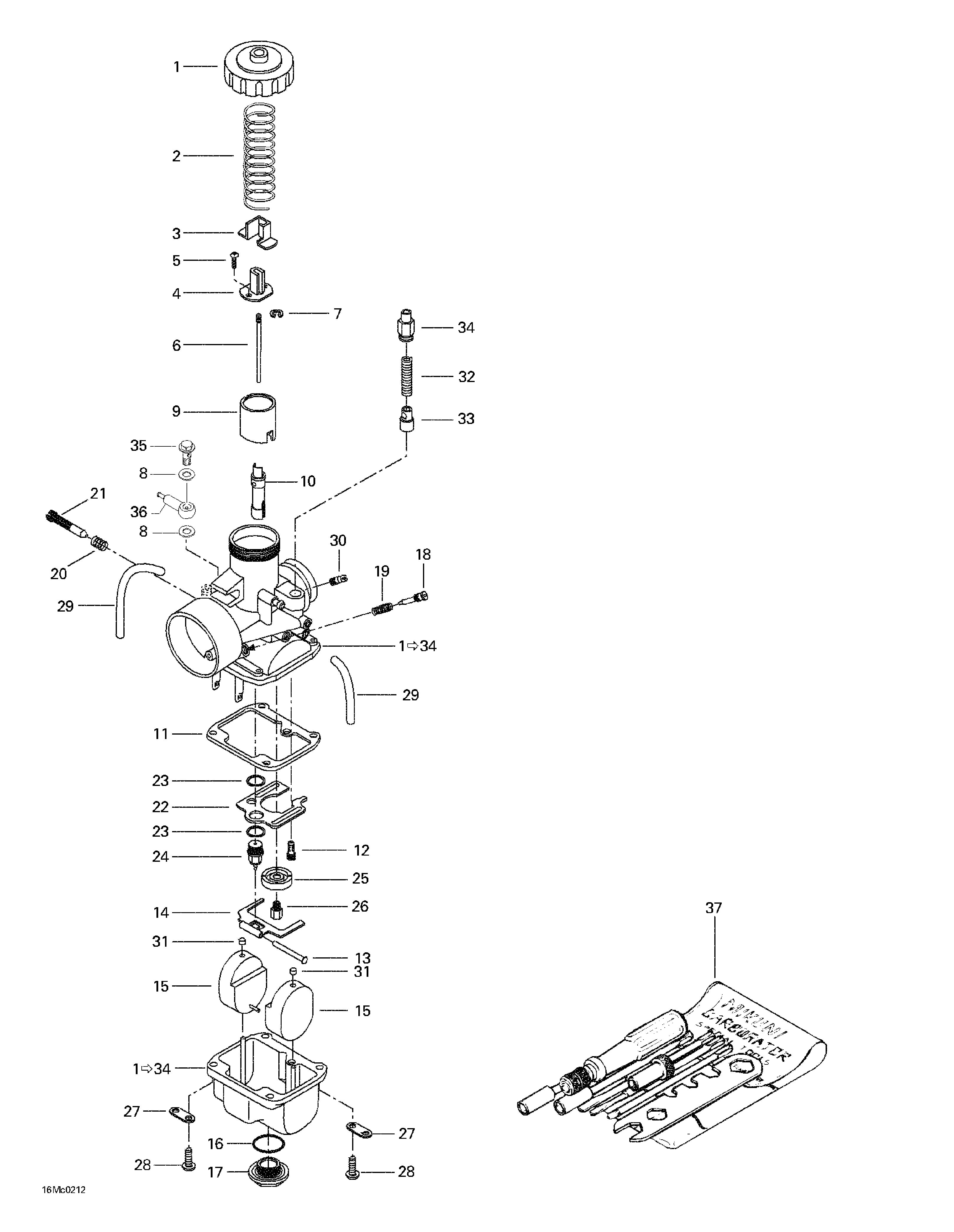

02- Carburetors для BRP Ski-Doo Skandic 440 - 2002
-
№АртикулНазвание
-
1404103700 CoverCover
-
2404154800 Throttle Valve SpringThrottle Valve Spring
-
3404122100 CoverCover
-
4404160800 ConnectorConnector
-
5404121300 Screw with Lock WasherScrew with Lock Washer
-
6404161978 Jet Needle J8 6DGY12Jet Needle J8 6DGY12
-
7404152400 E'' Ring```E'' Ring```
-
8270500025 WasherWasher
-
9404158400 Throttle Valve CA 3.0Throttle Valve CA 3.0
-
10404130200 Needle Jet NJ 159-0-0Needle Jet NJ 159-0-0
-
11404117900 Gasket PanGasket Pan
-
12404109500 Pilot Jet 50Pilot Jet 50
-
13404103300 Float Arm PinFloat Arm Pin
-
14404107600 Float ArmFloat Arm
-
15404107100 FloatFloat
-
16404107300 O'RingO'Ring
-
17404107400 Plug ScrewPlug Screw
-
18404149000 Idle Adjusting ScrewIdle Adjusting Screw
-
19404139800 Idle Adjusting Screw SpringIdle Adjusting Screw Spring
-
20404101700 Throttle Stop Screw SpringThrottle Stop Screw Spring
-
21404125200 Throttle Stop ScrewThrottle Stop Screw
-
22404109600 Baffle PlateBaffle Plate
-
23404101600 Seat WasherSeat Washer
-
24404103200 Needle ValveNeedle Valve
-
25404110900 Baffle RingBaffle Ring
-
26404112200 Main Jet MJ 180Main Jet MJ 180
-
27404103000 Tube Retainer PlateTube Retainer Plate
-
28404102000 Screw and Lock WasherScrew and Lock Washer
-
29404161880 Vent TubeVent Tube
-
30404153400 NippleNipple
-
31404105800 CapCap
-
32404127400 SpringSpring
-
33404161000 Plunger Ass'yPlunger Ass'y
-
34404161100 Support GuideSupport Guide
-
36404130000 Banjo FittingBanjo Fitting
-
37404112000 Tool KitTool Kit
