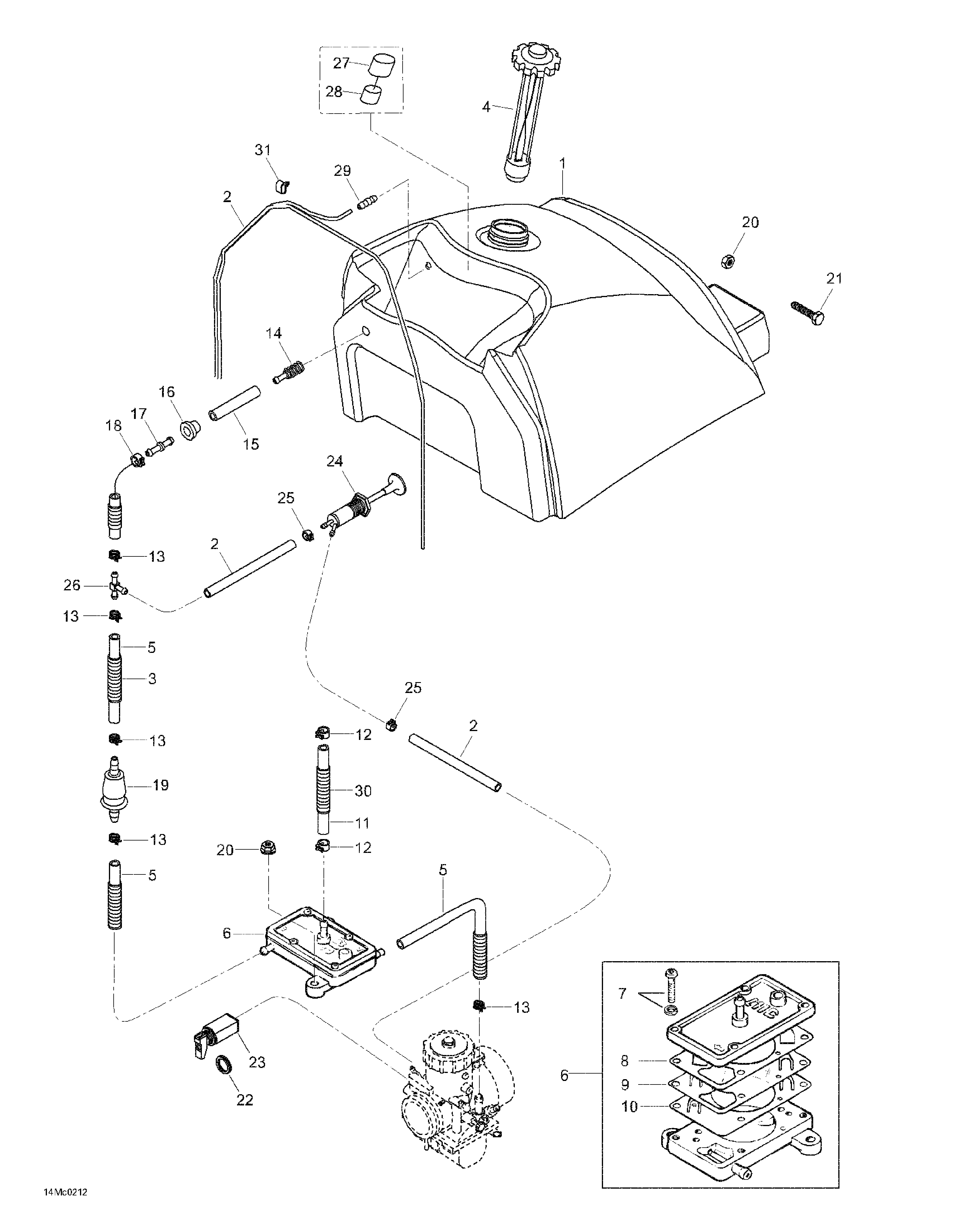

02- Fuel System для BRP Ski-Doo Skandic 440 - 2002
-
№АртикулНазвание
-
1M5145048 Fuel TankFuel Tank
-
2M39035 HoseHose
-
3M28012 HousingHousing
-
4572161200 Fuel Tank CapFuel Tank Cap
-
5M39004 HoseHose
-
6403800800 Fuel Pump. Includes 6 - 10.Fuel Pump. Includes 6 - 10.
-
7404118500 ScrewScrew
-
8404901600 GasketGasket
-
9404901700 DiaphragmDiaphragm
-
10404901800 MembraneMembrane
-
11415080200 LineLine
-
12414420700 Spring ClampSpring Clamp
-
13M27086 Spring ClampSpring Clamp
-
14414865700 Fuel FilterFuel Filter
-
15M39030 HoseHose
-
16570045500 GrommetGrommet
-
17414518500 Connector-MaleConnector-Male
-
18414554800 Spring ClampSpring Clamp
-
19414363600 Fuel FilterFuel Filter
-
20M33200 NutNut
-
21M40826 Hex. ScrewHex. Screw
-
22414977200 Plastic NutPlastic Nut
-
23M524046 Cable-ChokeCable-Choke
-
24415060500 PrimerPrimer
-
26M21067 T'' Fitting```T'' Fitting```
-
27M5441703 Rubber BumperRubber Bumper
-
28M5446811 HolderHolder
-
29404153400 NippleNipple
-
30M28015 HousingHousing
-
31513032923 Tube ClampTube Clamp
