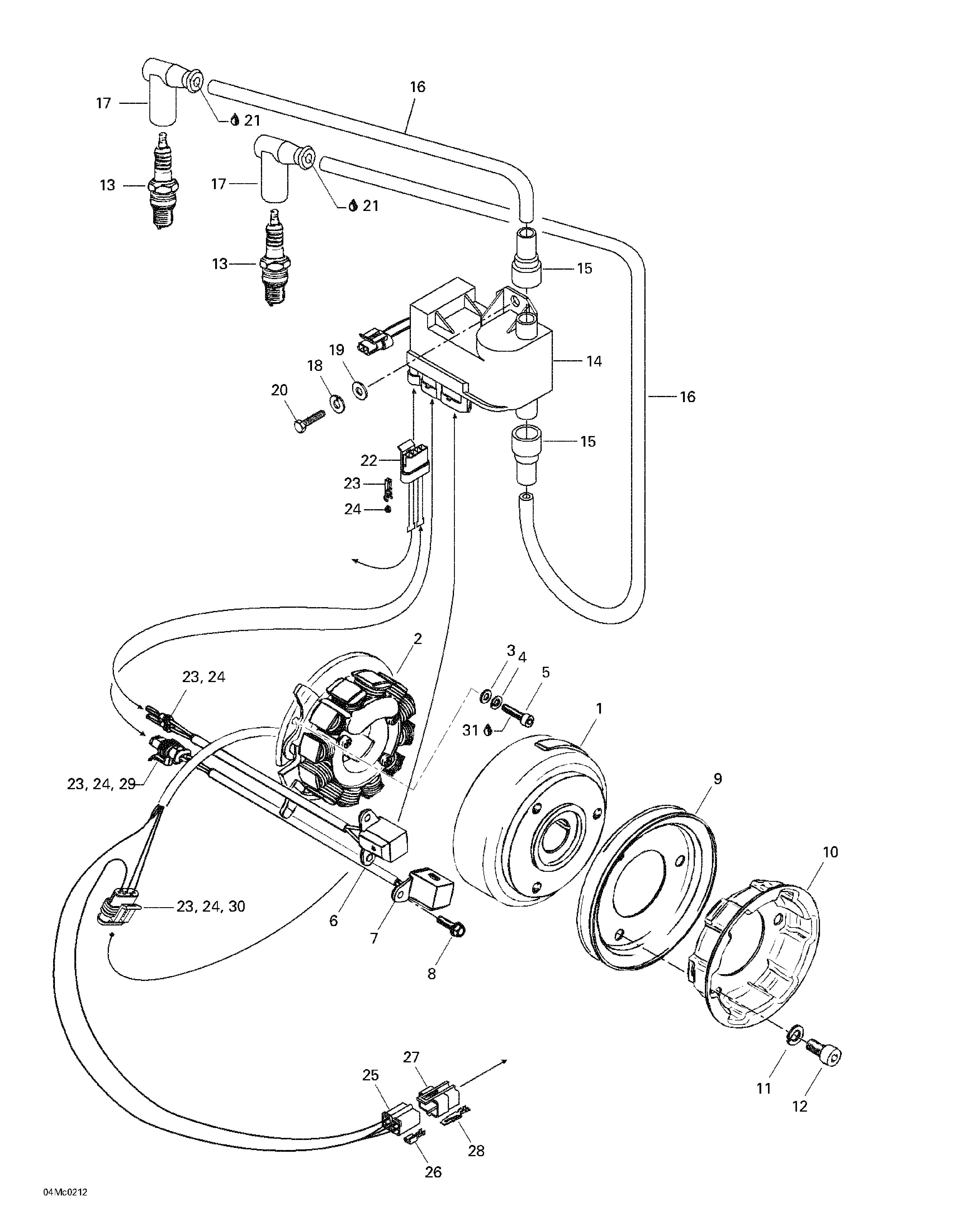

03- Magneto для BRP Ski-Doo Skandic 440 - 2002
-
№АртикулНазвание
-
1420887654 Magneto Ducati 12V240W. Includes 1 - 2.Magneto Ducati 12V240W. Includes 1 - 2.
-
1420996824 Magneto FlywheelMagneto Flywheel
-
2420886603 Stator Plate Ass'y. 12V240WStator Plate Ass'y. 12V240W
-
3420927571 Washer 5.3 mmWasher 5.3 mm
-
4420945750 Lock Washer 5 mmLock Washer 5 mm
-
5420840515 Allen Screw M5 x 18Allen Screw M5 x 18
-
6420966548 Pick-up Ass'y (For Reverse)Pick-up Ass'y (For Reverse)
-
7420966546 Pick-up Ass'yPick-up Ass'y
-
8420941925 Taptite Screw M5 x 16Taptite Screw M5 x 16
-
9420980486 V-Belt PulleyV-Belt Pulley
-
10420852414 Starting PulleyStarting Pulley
-
11420845311 Lock Washer 8 mmLock Washer 8 mm
-
12420841521 Allen Screw M8 x 12Allen Screw M8 x 12
-
13414961100 Spark Plug NGK BR9 ESSpark Plug NGK BR9 ES
-
14M42507 Electronic BoxElectronic Box
-
15515174900 Protection CapProtection Cap
-
16278001268 Ignition CableIgnition Cable
-
17278000237 Spark Plug ProtectorSpark Plug Protector
-
18234161471 Lock Washer 6 mmLock Washer 6 mm
-
19234061410 Washer 6 mmWasher 6 mm
-
20M40332 ScrewScrew
-
21219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
22409209700 Female Housing (AMP)Female Housing (AMP)
-
23278001014 Female Terminal (AMP)Female Terminal (AMP)
-
24278001013 Wire Seal (AMP)Wire Seal (AMP)
-
25409204900 Female Connector Housing (Packard)Female Connector Housing (Packard)
-
26515175253 Female Terminal (AMP)Female Terminal (AMP)
-
27409209300 Male Terminal Housing (4 Circ, Packard)Male Terminal Housing (4 Circ, Packard)
-
28409210000 Male Terminal (AMP)Male Terminal (AMP)
-
29409209500 Female Housing (AMP)Female Housing (AMP)
-
30409209600 Female Housing (AMP)Female Housing (AMP)
-
31293800060 Loctite 243, 10 mlLoctite 243, 10 ml
