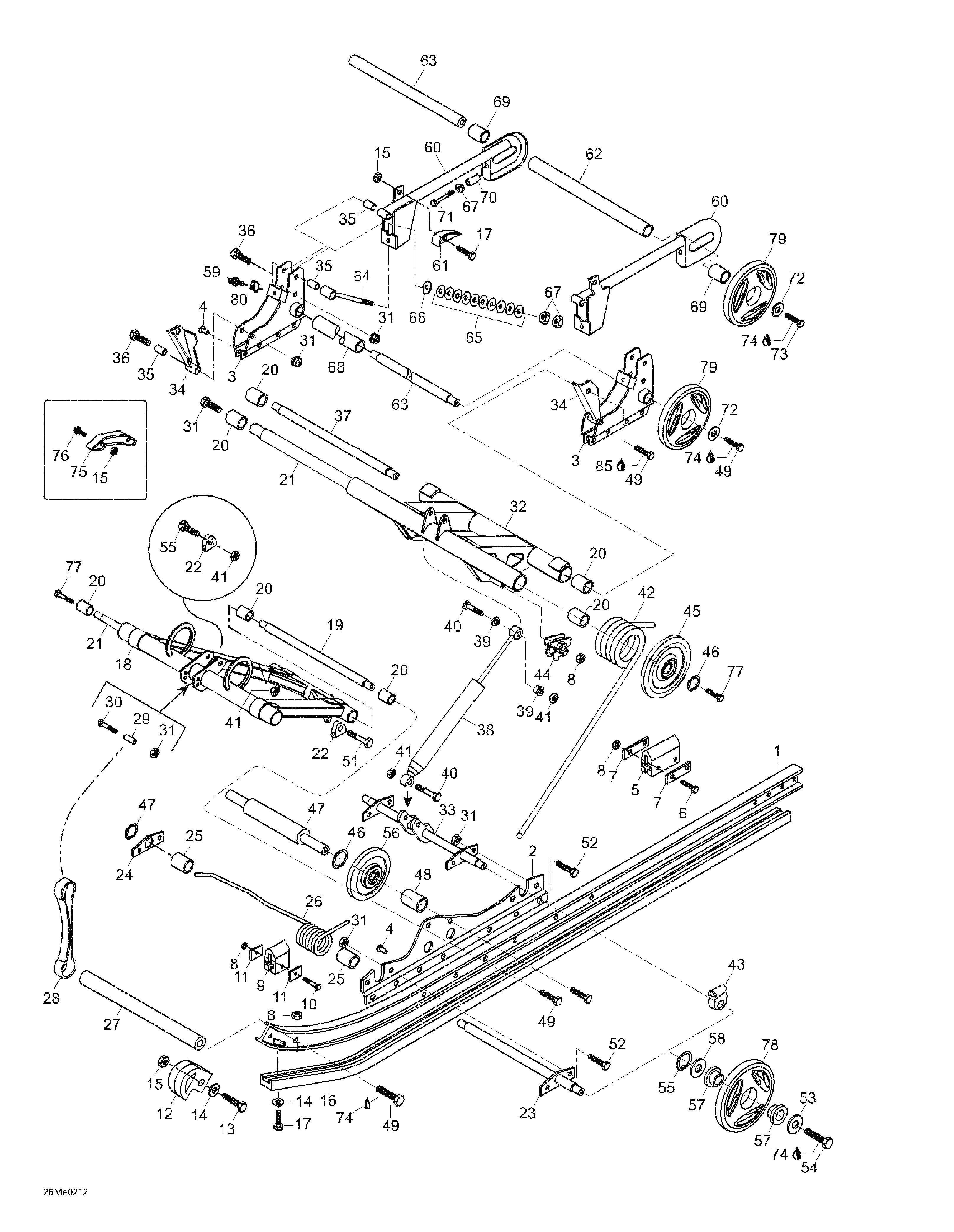

08- Rear Suspension для BRP Ski-Doo Skandic 440 - 2002
-
№АртикулНазвание
-
1M5142865 L.H. Runner. Includes 1 - 5.L.H. Runner. Includes 1 - 5.
-
M5142866 R.H. RunnerR.H. Runner
-
1M5142864 RunnerRunner
-
2M5344810 L.H. SupportL.H. Support
-
M5344811 R.H. SupportR.H. Support
-
3M539672 L.H. SupportL.H. Support
-
M539673 R.H. SupportR.H. Support
-
4M544212 RivetRivet
-
5570023100 Rubber StopperRubber Stopper
-
6207064044 Hex. Screw M6 x 40Hex. Screw M6 x 40
-
7M548387 WasherWasher
-
8232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
9M5442328 Rubber StopperRubber Stopper
-
10207063044 Hex. Screw M6x30Hex. Screw M6x30
-
11M548470 PlatePlate
-
12M534578 Runner ProtectorRunner Protector
-
13207162544 Hex. Screw M6x25Hex. Screw M6x25
-
14234061410 Flat Washer 6 mmFlat Washer 6 mm
-
15M33200 NutNut
-
16M549582 Runner ShoeRunner Shoe
-
17207162044 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
18M538796 Front Arm WeldedFront Arm Welded
-
19M548944 AxleAxle
-
20M31046 Slide BearingSlide Bearing
-
21M538945 Cross Shaft RearCross Shaft Rear
-
22M548799 Spring SupportSpring Support
-
23M538802 AxleAxle
-
24M548469 Support PlateSupport Plate
-
25M548841 SleeveSleeve
-
26M5241177 L.H. SpringL.H. Spring
-
M5241178 R.H. SpringR.H. Spring
-
27M546599 Cross ShaftCross Shaft
-
28M5445988 Stopper StrapStopper Strap
-
29M546065 SleeveSleeve
-
30M40122 Hex. ScrewHex. Screw
-
31232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
32M538801 Rear Arm WeldedRear Arm Welded
-
33M538803 ShaftShaft
-
34M5440349 L.H. LeverL.H. Lever
-
M5440350 R.H. LeverR.H. Lever
-
35M545758 SleeveSleeve
-
36207084544 Hex. Cap Screw M8 x 45Hex. Cap Screw M8 x 45
-
37M548946 AxleAxle
-
38M23016 ShockShock
-
39M544417 CushionCushion
-
40207005044 Hex.Cap Screw M10 x 50Hex.Cap Screw M10 x 50
-
41233601416 Elastic Lock Nut M10Elastic Lock Nut M10
-
42M538805 L.H. SpringL.H. Spring
-
M538806 R.H. SpringR.H. Spring
-
43M548804 Spring SupportSpring Support
-
44572030800 L.H. Adjuster CamL.H. Adjuster Cam
-
572030900 R.H. Adjuster CamR.H. Adjuster Cam
-
45503189568 Wheel 165 mmWheel 165 mm
-
46M31001 CirclipCirclip
-
47M5445985 Support ShaftSupport Shaft
-
48M5444098 SleeveSleeve
-
49M40335 ScrewScrew
-
50207005544 Hex. Cap Screw M10 x 55Hex. Cap Screw M10 x 55
-
51M40042 ScrewScrew
-
52207181644 Hex. Screw M8 X 16Hex. Screw M8 X 16
-
53503183100 WasherWasher
-
54M40337 Hex. Cap ScrewHex. Cap Screw
-
55M31007 CirclipCirclip
-
56503188997 Whee 135 mmWhee 135 mm
-
57503189534 CushionCushion
-
58M31091 ShimShim
-
59M535455 Rubber StopperRubber Stopper
-
60M5243222 R.H. ExtensionR.H. Extension
-
60M5243223 L.H. ExtensionL.H. Extension
-
61M548262 ProtectorProtector
-
62M5346739 SleeveSleeve
-
63M5445986 ShaftShaft
-
64M5440377 Adjuster Eye BoltAdjuster Eye Bolt
-
65M25004 Spring PlateSpring Plate
-
66M20011 WasherWasher
-
67232006414 Hex. Nut M10Hex. Nut M10
-
68M542105 SleeveSleeve
-
69M5444098 SleeveSleeve
-
70M546668 SleeveSleeve
-
71M40239 ScrewScrew
-
72503183300 WasherWasher
-
73250000019 Hex. Screw (Nylon Patch)Hex. Screw (Nylon Patch)
-
74293800060 Loctite 243, 10 mLLoctite 243, 10 mL
-
75M5343191 ProtectorProtector
-
76M40064 Hex. Cap ScrewHex. Cap Screw
-
77M40314 ScrewScrew
-
78572097612 Wheel 135 mmWheel 135 mm
-
79503189566 Wheel 165 mm (Yellow)Wheel 165 mm (Yellow)
-
80M5440645 Adjuster PlateAdjuster Plate
