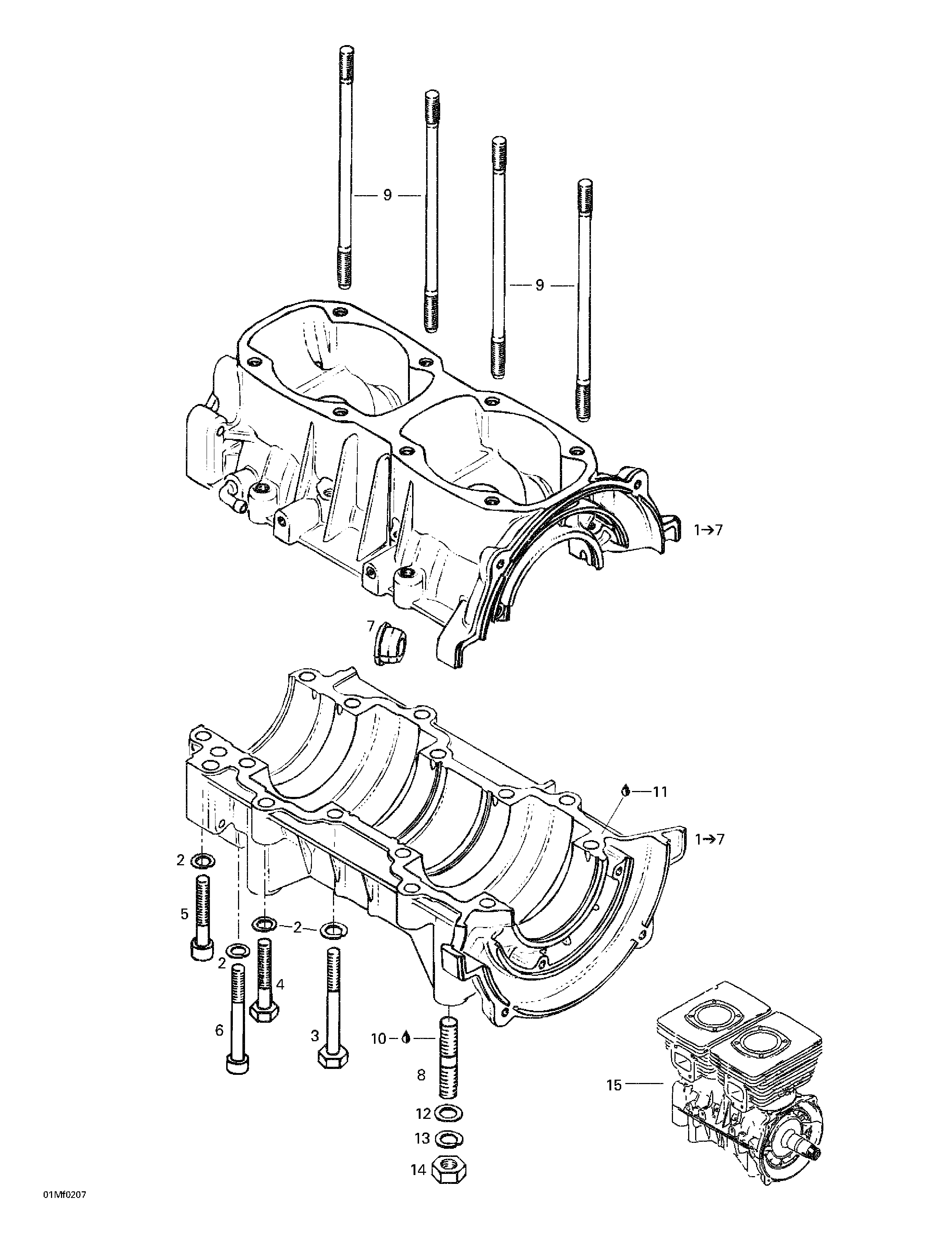

01- Crankcase для BRP Ski-Doo Summit 500 F - 2002
-
№АртикулНазвание
-
1420888493 Crankcase Ass'y. Includes 1 - 7.Crankcase Ass'y. Includes 1 - 7.
-
2420945752 Lock Washer 8 mmLock Washer 8 mm
-
3420841201 Hex. Screw M8 x 70Hex. Screw M8 x 70
-
4207084544 Hex. Screw M8 x 45Hex. Screw M8 x 45
-
5420841561 Socket Head Screw M8 x 45Socket Head Screw M8 x 45
-
6420841841 Socket Head Screw M8 x 65Socket Head Screw M8 x 65
-
7420860962 Cable GrommetCable Grommet
-
8420941644 Stud M10 x 23Stud M10 x 23
-
9420840556 Stud M8 x 173.5Stud M8 x 173.5
-
10293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
11420297906 Sealing Compound, 30 mlSealing Compound, 30 ml
-
12243001410 Flat Washer 10 mmFlat Washer 10 mm
-
13234100602 Lock Spring Washer 10 mmLock Spring Washer 10 mm
-
14232006414 Hex. Nut M10Hex. Nut M10
-
15420050304 Short Block Ass'yShort Block Ass'y
