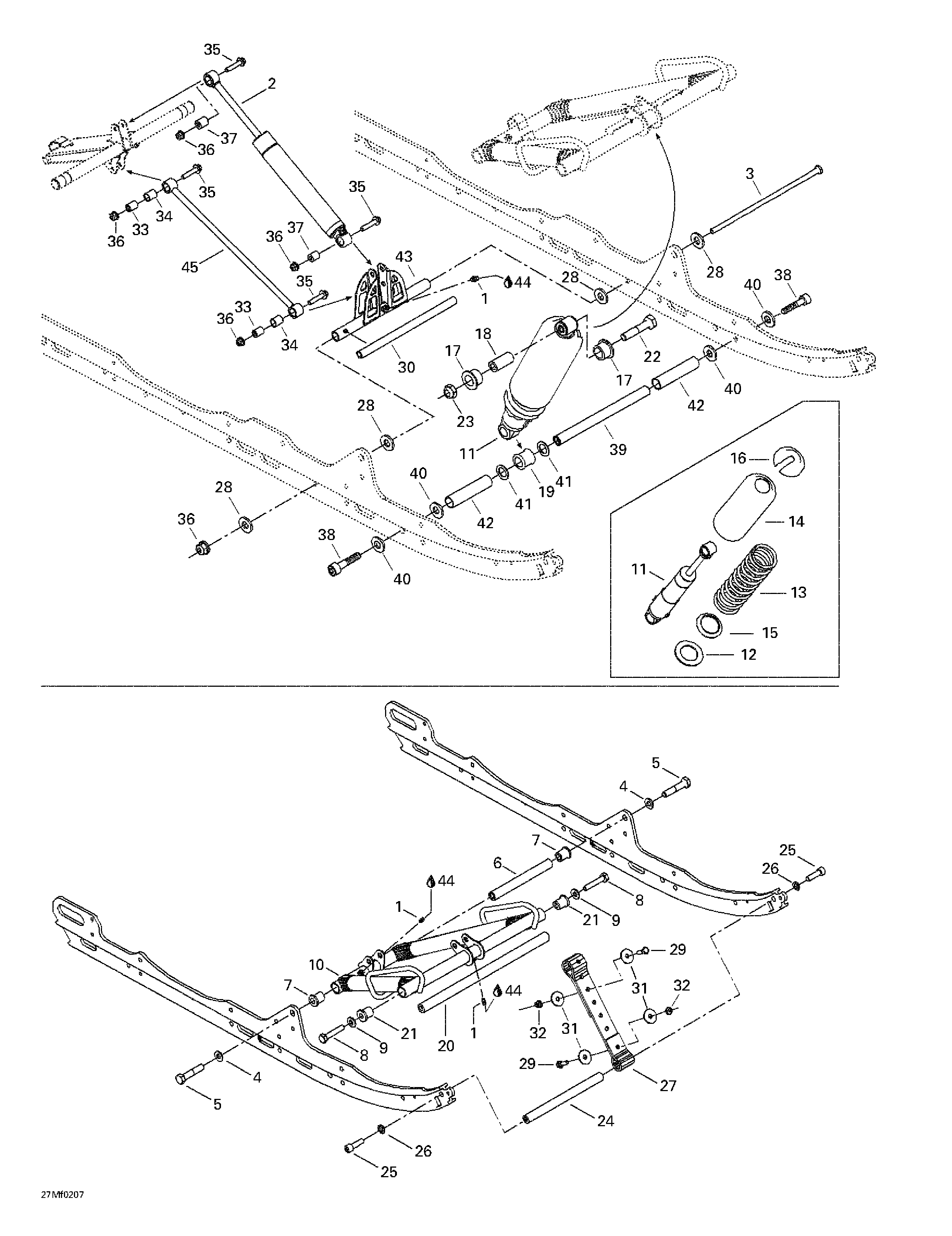

08- Front Arm для BRP Ski-Doo Summit 500 F - 2002
-
№АртикулНазвание
-
1408200700 Grease Fitting M6Grease Fitting M6
-
2503189829 Rear ShockRear Shock
-
3732601198 Long Bolt M8Long Bolt M8
-
4503189276 WasherWasher
-
5207226044 Hex. Screw M12 x 60 (Scotch Grip)Hex. Screw M12 x 60 (Scotch Grip)
-
6503189313 ShaftShaft
-
7503189323 CushionCushion
-
8207205544 Hex. Screw M10 x 55 (Scotch Grip)Hex. Screw M10 x 55 (Scotch Grip)
-
9732900049 WasherWasher
-
10503189782 Front ArmFront Arm
-
11503189910 Center ShockCenter Shock
-
12505070401 WasherWasher
-
13415070100 SpringSpring
-
14503188930 ProtectorProtector
-
15517187500 Spring GuideSpring Guide
-
16503140600 Spring StopperSpring Stopper
-
17503189117 CushionCushion
-
18503189282 BushingBushing
-
19503189271 CushionCushion
-
20503188938 ShaftShaft
-
21503189324 BushingBushing
-
22207005044 Hex. Screw M10 x 50Hex. Screw M10 x 50
-
23233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
24503189562 AxleAxle
-
25205503544 SocketHeadScrewM10x35(ScotchGrip)SocketHeadScrewM10x35(ScotchGrip)
-
26503189564 WasherWasher
-
27503189362 Stopper StrapStopper Strap
-
28503189157 WasherWasher
-
29207182544 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
30503189156 Axle PivotAxle Pivot
-
31224081301 Flat WasherFlat Washer
-
32232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
33503189133 Rod AxleRod Axle
-
34503189625 CushionCushion
-
35207684044 Hex. Flanged Screw M8 x 40Hex. Flanged Screw M8 x 40
-
36250100025 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
37414936000 CushionCushion
-
38205523544 SocketHeadScrewM12x35(ScotchGrip)SocketHeadScrewM12x35(ScotchGrip)
-
39503189272 Center Shock ShaftCenter Shock Shaft
-
40503189276 WasherWasher
-
41503189273 WasherWasher
-
42503189274 SpacerSpacer
-
43503189545 Pivot ArmPivot Arm
-
44219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
45503189547 Throttle RodThrottle Rod
