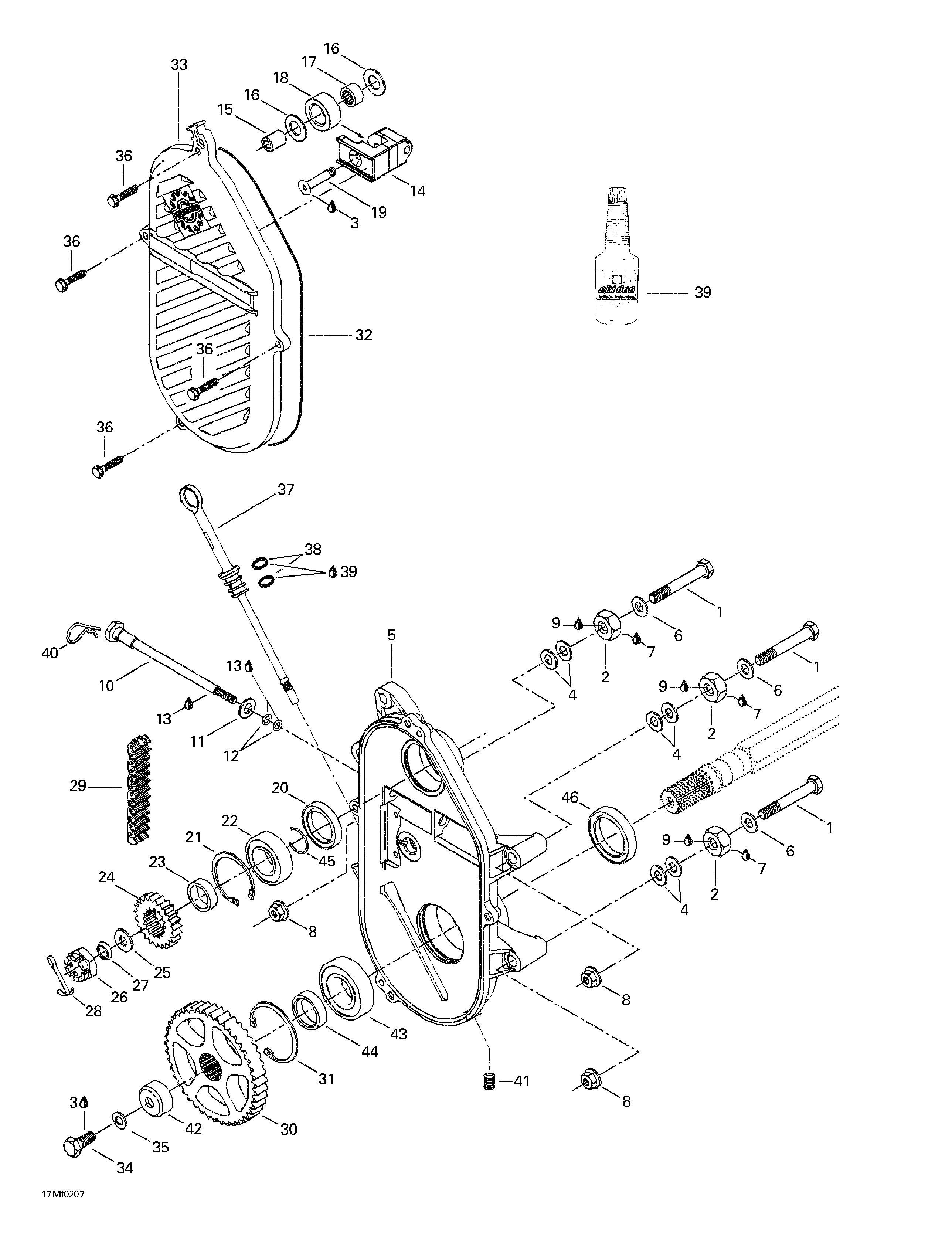

05- Chaincase для BRP Ski-Doo Summit 500 F - 2002
-
№АртикулНазвание
-
1207108044 Hex. Screw M10 x 80Hex. Screw M10 x 80
-
2504083800 SpacerSpacer
-
3293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
4504073700 WasherWasher
-
5504152064 ChaincaseChaincase
-
6503183800 WasherWasher
-
7293800070 Loctite 767, Antiseize Lubricant, 454 gLoctite 767, Antiseize Lubricant, 454 g
-
8233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
9293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
10732601314 Adjusting ScrewAdjusting Screw
-
11234001410 Flat Washer 10 mmFlat Washer 10 mm
-
12414484400 O-RingO-Ring
-
13219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
14504151951 TensionerTensioner
-
15504080200 SpacerSpacer
-
16504080300 WasherWasher
-
17405403000 Needle BearingNeedle Bearing
-
18414531300 RollerRoller
-
19732601144 ScrewScrew
-
20504151927 SealSeal
-
21371901700 Circlip (interior)Circlip (interior)
-
22504152006 Ball Bearing 6205Ball Bearing 6205
-
23504147200 ShimShim
-
24504071800 Sprocket (17 Tooth, Narrow)Sprocket (17 Tooth, Narrow)
-
25504152049 SpacerSpacer
-
26232210414 Hex. Castellated Nut M16Hex. Castellated Nut M16
-
27417000900 Spring WasherSpring Washer
-
28371801300 Cotter PinCotter Pin
-
29504151883 Driving Chain (72 Links, Narrow)Driving Chain (72 Links, Narrow)
-
30504148600 Sprocket Narrow (43 Tooth)Sprocket Narrow (43 Tooth)
-
31415064300 Circlip (interior)Circlip (interior)
-
32415046400 O-RingO-Ring
-
33504152027 Chaincase CoverChaincase Cover
-
34207102544 Hex. Screw M10 x 25Hex. Screw M10 x 25
-
35234100602 Lock Spring Washer 10 mmLock Spring Washer 10 mm
-
36210263080 Hex. Forming Screw M6 x 30Hex. Forming Screw M6 x 30
-
37504151703 Filler Cap Ass'yFiller Cap Ass'y
-
38414969400 O-RingO-Ring
-
39413803300 Synthetic Chaincase Oil,. 12 x 355 mlSynthetic Chaincase Oil,. 12 x 355 ml
-
40414575600 Hair PinHair Pin
-
41504151921 Plug 1/8''-27Plug 1/8''-27
-
42501022400 CapCap
-
43504152005 Ball BearingBall Bearing
-
44501021800 Inner ShimInner Shim
-
45371910000 CirclipCirclip
-
46504151918 Oil SealOil Seal
