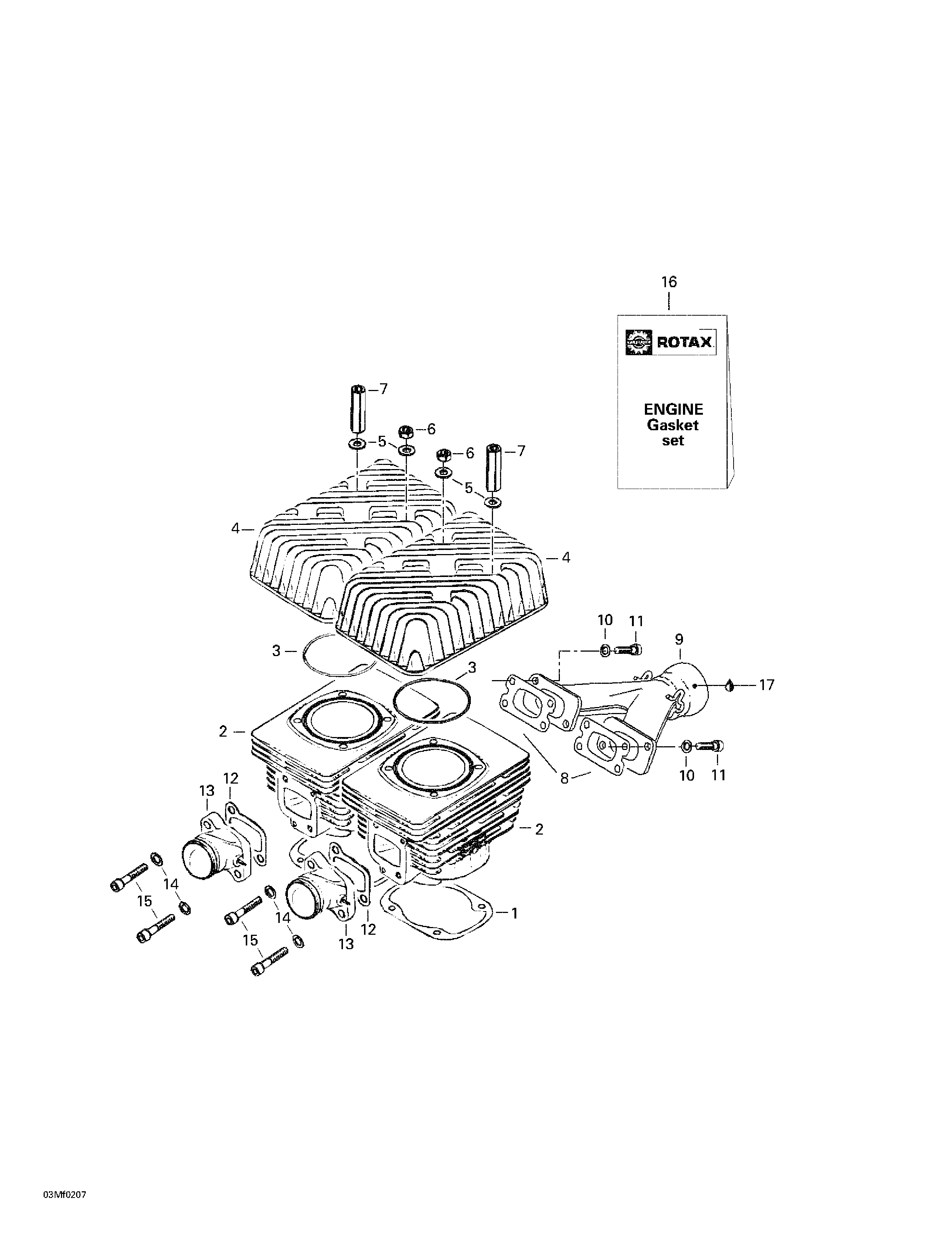

01- Cylinder, Exhaust Manifold для BRP Ski-Doo Summit 500 F - 2002
-
№АртикулНазвание
-
1420831858 Gasket 0.4 mmGasket 0.4 mm
-
2420923417 Cylinder with sleeveCylinder with sleeve
-
3293300026 O-RingO-Ring
-
4420923590 Cylinder HeadCylinder Head
-
5420250311 Flat Washer 8.4 mmFlat Washer 8.4 mm
-
6232081414 Hex. Nut M8Hex. Nut M8
-
7420842203 Distance Nut M8 x 47Distance Nut M8 x 47
-
8420831849 Gasket 1.0 mmGasket 1.0 mm
-
9420673060 Exhaust ManifoldExhaust Manifold
-
10234181401 Lock Washer 8 mmLock Washer 8 mm
-
11205083044 Socket Head Screw M8 x 30Socket Head Screw M8 x 30
-
12420831867 Intake Gasket 1.0 mmIntake Gasket 1.0 mm
-
13420867408 Intake SocketIntake Socket
-
14420945752 Lock Washer 8 mmLock Washer 8 mm
-
15420840681 Socket Head Screw M8 x 40Socket Head Screw M8 x 40
-
16420994238 Engine Gasket SetEngine Gasket Set
-
17293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
