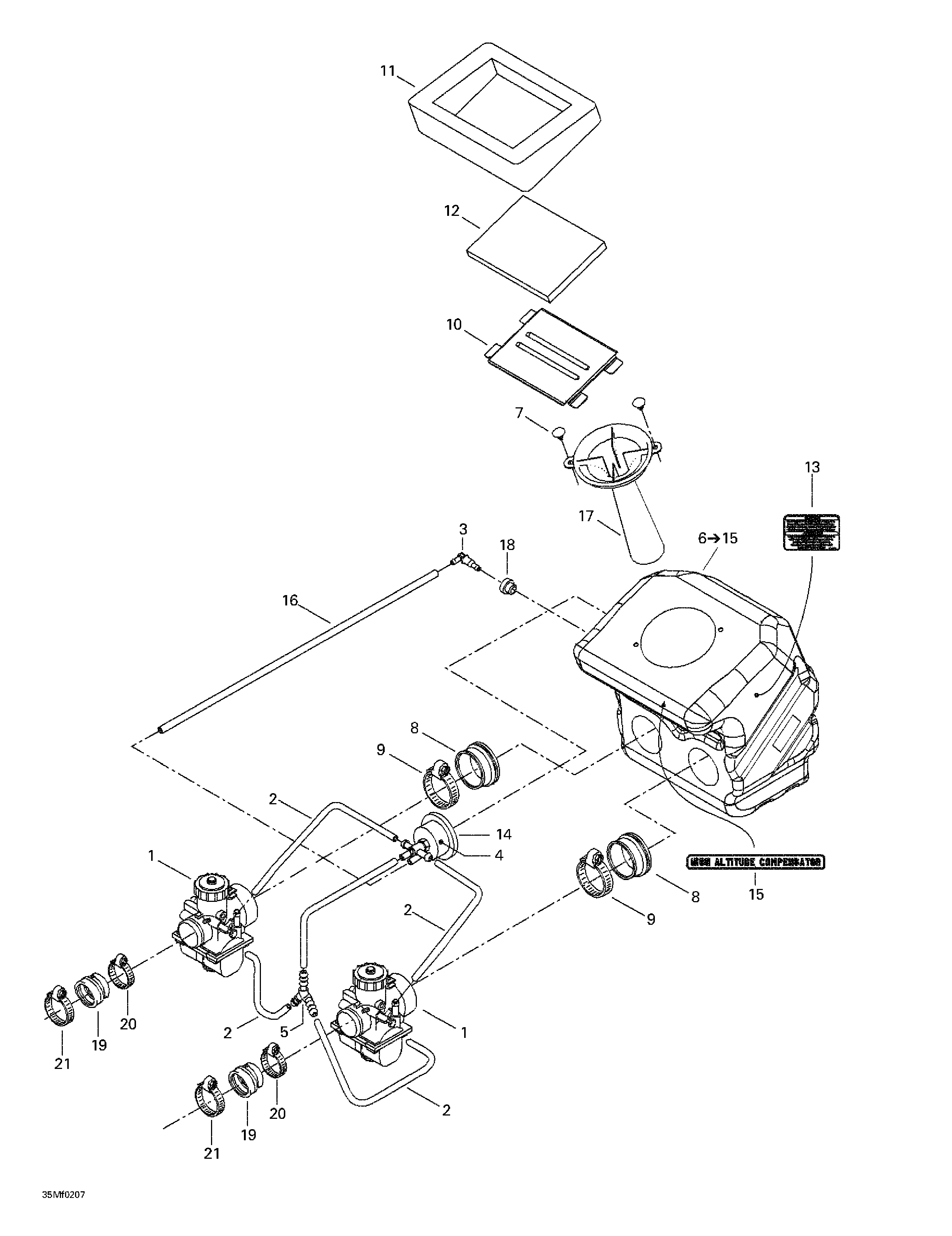

01- High Altitude Compensator (h.a.c.) для BRP Ski-Doo Summit 500 F - 2002
-
№АртикулНазвание
-
1403138706 Carburetor VM 34-578Carburetor VM 34-578
-
2415080200 HoseHose
-
3414580600 Elbow Male ConnectorElbow Male Connector
-
4420996468 High Altitude CompensatorHigh Altitude Compensator
-
5420974835 Y-FittingY-Fitting
-
6508000267 Air Intake Ass'y. Includes 6 - 15.Air Intake Ass'y. Includes 6 - 15.
-
7414644300 DartDart
-
8508000203 Adaptor 34 mmAdaptor 34 mm
-
9508000217 ClampClamp
-
10508000004 Intake GrillIntake Grill
-
11508000245 Lower FoamLower Foam
-
12508000154 Air FilterAir Filter
-
13516001191 Instruction LabelInstruction Label
-
14570044000 H.A.C. AdaptorH.A.C. Adaptor
-
15414857500 H.A.C. DecalH.A.C. Decal
-
16415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
17572054803 Inlet TubeInlet Tube
-
18513032908 GrommetGrommet
-
19512059396 AdaptorAdaptor
-
20512059395 ClampClamp
-
21512059403 ClampClamp
