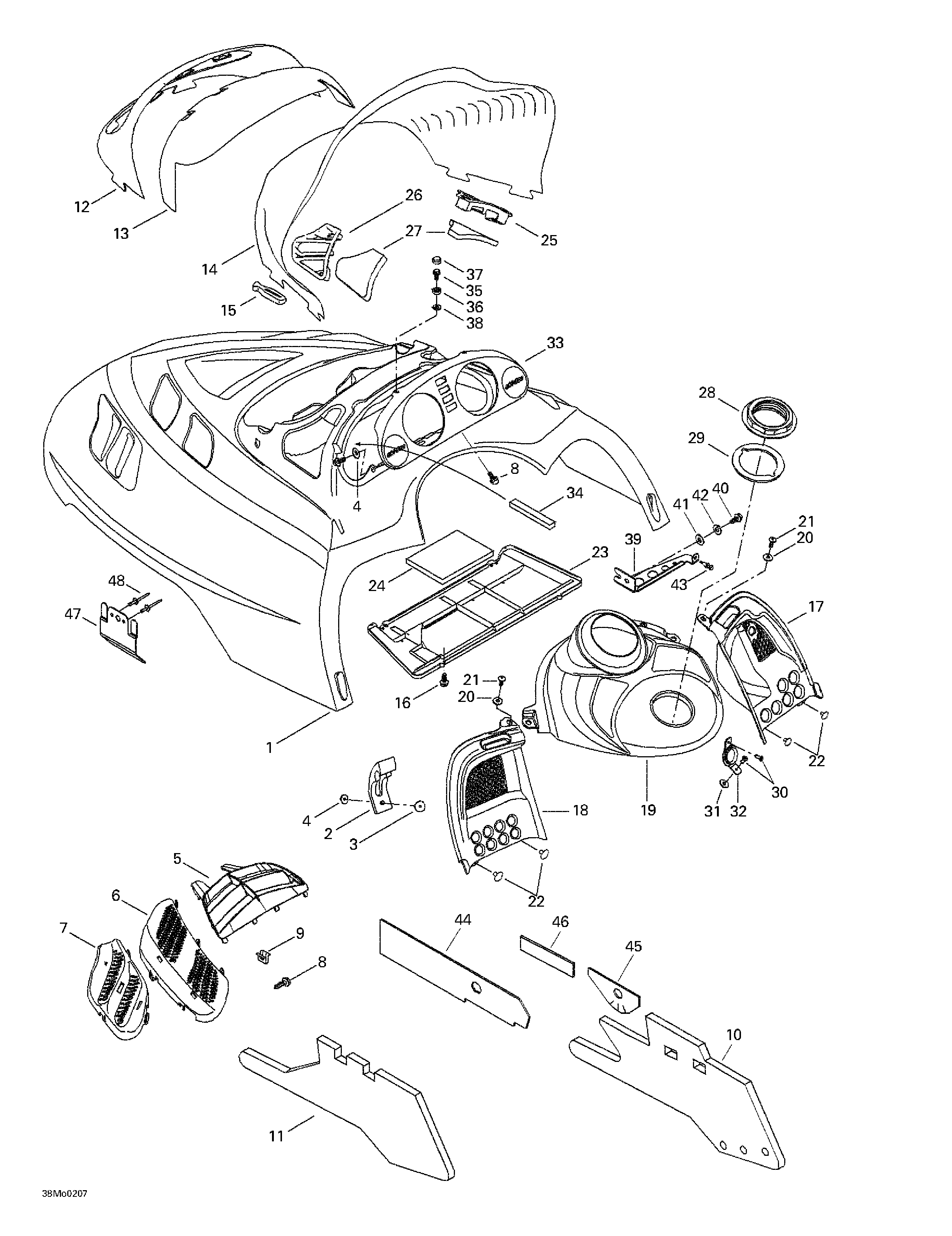

09- Cab, Console для BRP Ski-Doo Summit 500 F - 2002
-
№АртикулНазвание
-
1517302529 Hood (Black (B-160))Hood (Black (B-160))
-
2570027100 Hood LatchHood Latch
-
3390907700 Pop Rivet 3/16''Pop Rivet 3/16''
-
4517124300 WasherWasher
-
5517302676 Center Grill (Black)Center Grill (Black)
-
6517302567 R.H. Intermediate Grill (Black)R.H. Intermediate Grill (Black)
-
517302568 L.H. Intermediate Grill (Black)L.H. Intermediate Grill (Black)
-
7517302569 R.H. Side GrillR.H. Side Grill
-
517302570 L.H. Side GrillL.H. Side Grill
-
8732601210 Hex. Tapping ScrewHex. Tapping Screw
-
9517302183 ClipClip
-
10517302669 R.H. Side FoamR.H. Side Foam
-
11517302670 L.H. Side FoamL.H. Side Foam
-
12517302582 Headlamp MouldingHeadlamp Moulding
-
13517302003 Windshield SupportWindshield Support
-
14517302022 WindshieldWindshield
-
15570023800 Windshield LatchWindshield Latch
-
16243141640 Hex. Screw M4.8 x 16Hex. Screw M4.8 x 16
-
17517302561 R.H. ConsoleR.H. Console
-
18517302006 L.H. ConsoleL.H. Console
-
19517302633 Center ConsoleCenter Console
-
20391301600 WasherWasher
-
21732600030 ScrewScrew
-
22390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
23517302578 Air Intake PlateAir Intake Plate
-
24517302425 Secondary FoamSecondary Foam
-
25517302024 R.H. Air Intake GrillR.H. Air Intake Grill
-
26517302025 L.H. Air Intake GrillL.H. Air Intake Grill
-
27517302151 Air Intake FoamAir Intake Foam
-
28517302043 Console NutConsole Nut
-
29293250029 GasketGasket
-
30390409400 Pop Rivet 5/32''Pop Rivet 5/32''
-
31517302286 Rubber StopperRubber Stopper
-
32517302129 Rope GuideRope Guide
-
33517302536 Indicator SupportIndicator Support
-
34517302420 FoamFoam
-
35241140060 Hex. Flanged Screw K40 x 10Hex. Flanged Screw K40 x 10
-
36414436800 Retainer CapRetainer Cap
-
37414436900 Snap Cap (Black)Snap Cap (Black)
-
38234042600 Flat Washer 4 mmFlat Washer 4 mm
-
39517302621 R.H. Console SupportR.H. Console Support
-
40210261280 Hex. Forming Screw M6 x 12Hex. Forming Screw M6 x 12
-
41234061410 Flat WasherFlat Washer
-
42234161471 Lock WasherLock Washer
-
43517302624 Rubber StopperRubber Stopper
-
44514053435 Reflective SheetReflective Sheet
-
45514053446 Reflective SheetReflective Sheet
-
46514053392 Reflective SheetReflective Sheet
-
47517302615 Hood GuideHood Guide
-
48390910000 Pop Rivet 3/16''Pop Rivet 3/16''
