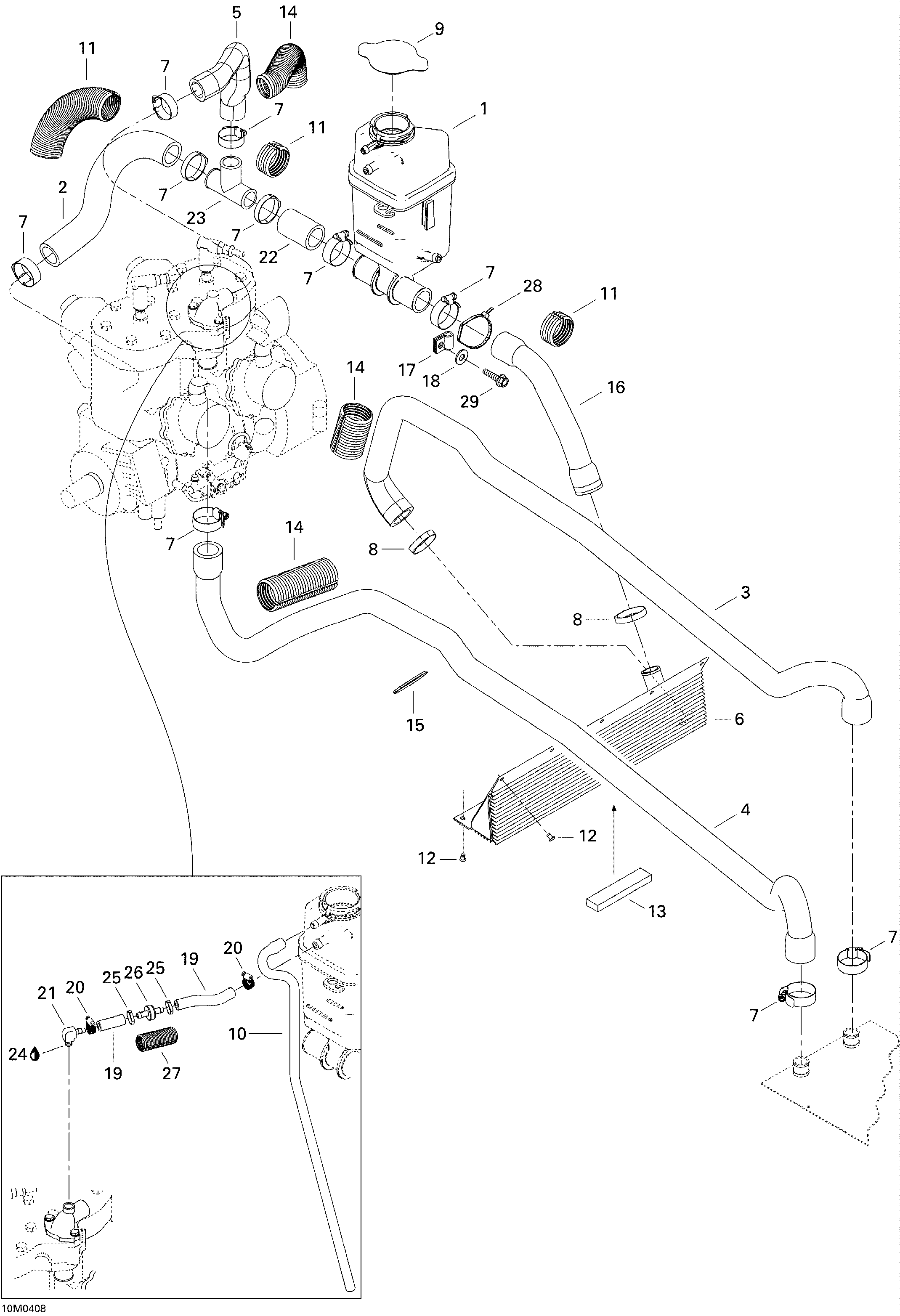

01- Cooling System для BRP Ski-Doo Legend 600 HO SDI - 2004
-
№АртикулНазвание
-
1509000167 Tank CoolantTank Coolant
-
2509000141 Engine Inlet HoseEngine Inlet Hose
-
3509000003 Radiator Inlet HoseRadiator Inlet Hose
-
4509000145 Radiator Outlet HoseRadiator Outlet Hose
-
5509000142 HoseHose
-
6509000146 Front RadiatorFront Radiator
-
7408800400 Tridon Gear ClampTridon Gear Clamp
-
8509000045 Oetiker Gear ClampOetiker Gear Clamp
-
9509000187 Pressure CapPressure Cap
-
10415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
11415084700 Protective ShieldProtective Shield
-
12390402200 Rivet 3/16''Rivet 3/16''
-
13293200003 SealSeal
-
14409902200 TubingTubing
-
15293750008 Tie Rap 350 mmTie Rap 350 mm
-
16509000144 Radiator Outlet HoseRadiator Outlet Hose
-
17517262800 Bracket. 600 H.O. SDIBracket. 600 H.O. SDI
-
18391301600 Washer. 600 H.O. SDIWasher. 600 H.O. SDI
-
19509000093 Hose 8 mmHose 8 mm
-
20293650128 Tridon ClampTridon Clamp
-
21293700020 Elbow Fitting 90°Elbow Fitting 90°
-
22509000143 HoseHose
-
23414619900 T FittingT Fitting
-
24293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
25293650053 Crimp ClampCrimp Clamp
-
26509000153 Check ValveCheck Valve
-
27415080000 Tubing (16 mm)Tubing (16 mm)
-
28509000165 Tie RapTie Rap
-
29210252040 Hex Flanged Screw M5. 600 H.O. SDIHex Flanged Screw M5. 600 H.O. SDI
