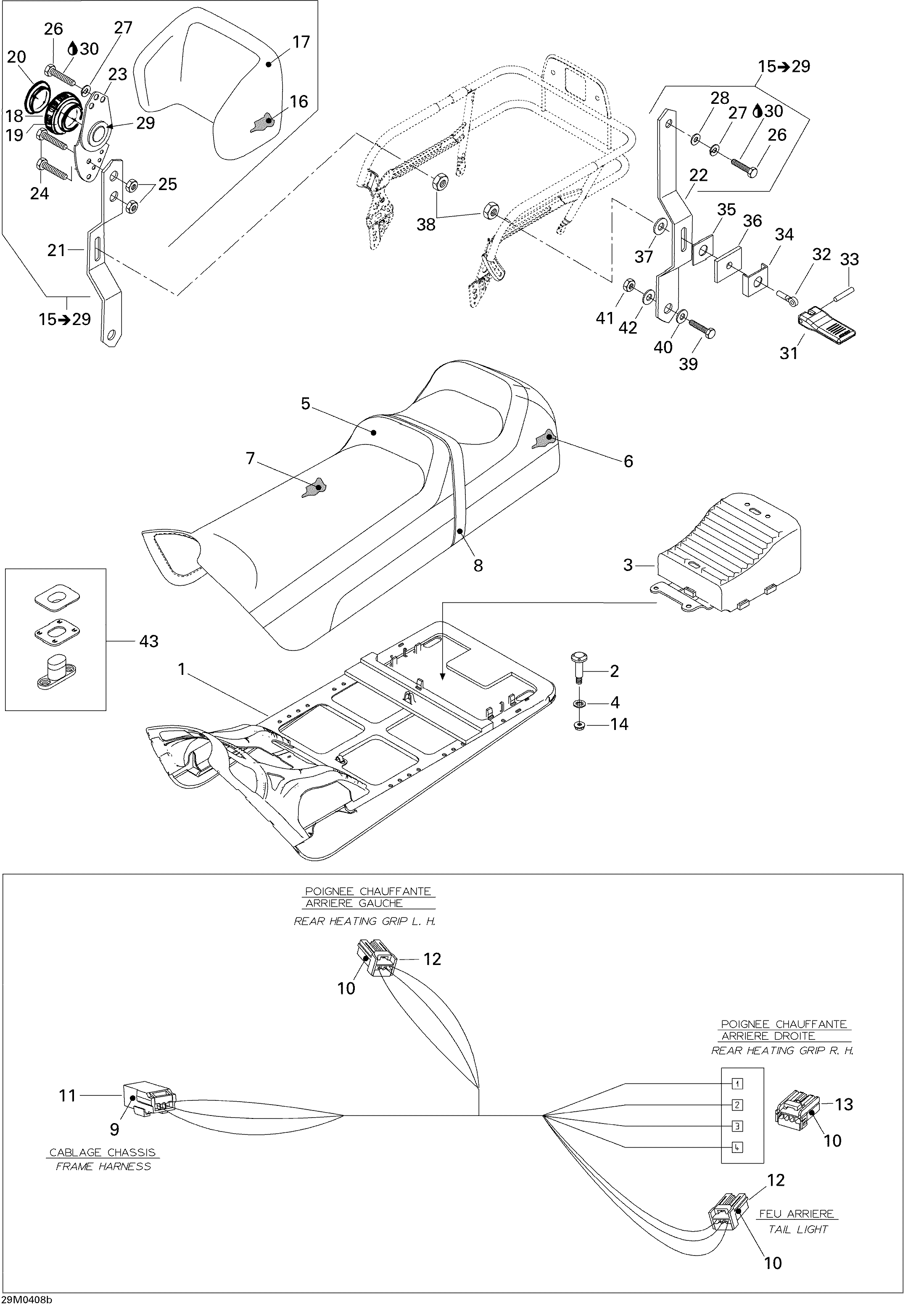

09- Seat (2 Passengers) для BRP Ski-Doo Legend 600 HO SDI - 2004
-
№АртикулНазвание
-
1510003739 Sub-Seat (Se)Sub-Seat (Se)
-
2732601221 «T» Bolt«T» Bolt
-
3510003751 Rear Trunk (Se)Rear Trunk (Se)
-
4732610072 Push NutPush Nut
-
5510004086 Seat Cover (Black) (Se). SPORTSeat Cover (Black) (Se). SPORT
-
510004086 Seat Cover (Black) (Se). SE BLACK (B-160)Seat Cover (Black) (Se). SE BLACK (B-160)
-
510004092 Seat Cover (Autumn Red) (Se). SE AUTUMN RED (M-549)Seat Cover (Autumn Red) (Se). SE AUTUMN RED (M-549)
-
6510003741 Seat Foam (Side)Seat Foam (Side)
-
7510004267 Seat FoamSeat Foam
-
8510003753 Seat BeltSeat Belt
-
9515175232 Male TerminalMale Terminal
-
10515175231 Female TerminalFemale Terminal
-
11515175494 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
12515175495 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
14233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
15510004093 Dossier Ass. *Backrest-Assy.. INCLUDES 15 TO 29Dossier Ass. *Backrest-Assy.. INCLUDES 15 TO 29
-
16414821200 Backrest FoamBackrest Foam
-
17510004094 Backrest CoverBackrest Cover
-
18414820900 Tiller HandleTiller Handle
-
19415015500 StripStrip
-
20414821000 CapCap
-
21517296400 RH ArmRH Arm
-
22517296500 LH ArmLH Arm
-
23414813300 ReclinerRecliner
-
24207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
25232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
26207182044 Hex Screw M8 X 20Hex Screw M8 X 20
-
27234181401 Lock Washer 8 mmLock Washer 8 mm
-
28224081201 Flat WasherFlat Washer
-
29517250500 CapCap
-
30293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
31572038200 Lock LeverLock Lever
-
32517250100 Eye BoltEye Bolt
-
33414821400 PinPin
-
34517257300 GuideGuide
-
35517251300 SpacerSpacer
-
36570027400 Rubber ShimRubber Shim
-
37414819500 WasherWasher
-
38517250000 NutNut
-
39207182584 Screw M8 X 25Screw M8 X 25
-
40234081670 Washer 8 mmWasher 8 mm
-
41232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
42414819600 WasherWasher
-
43414728000 Seat BuckleSeat Buckle
