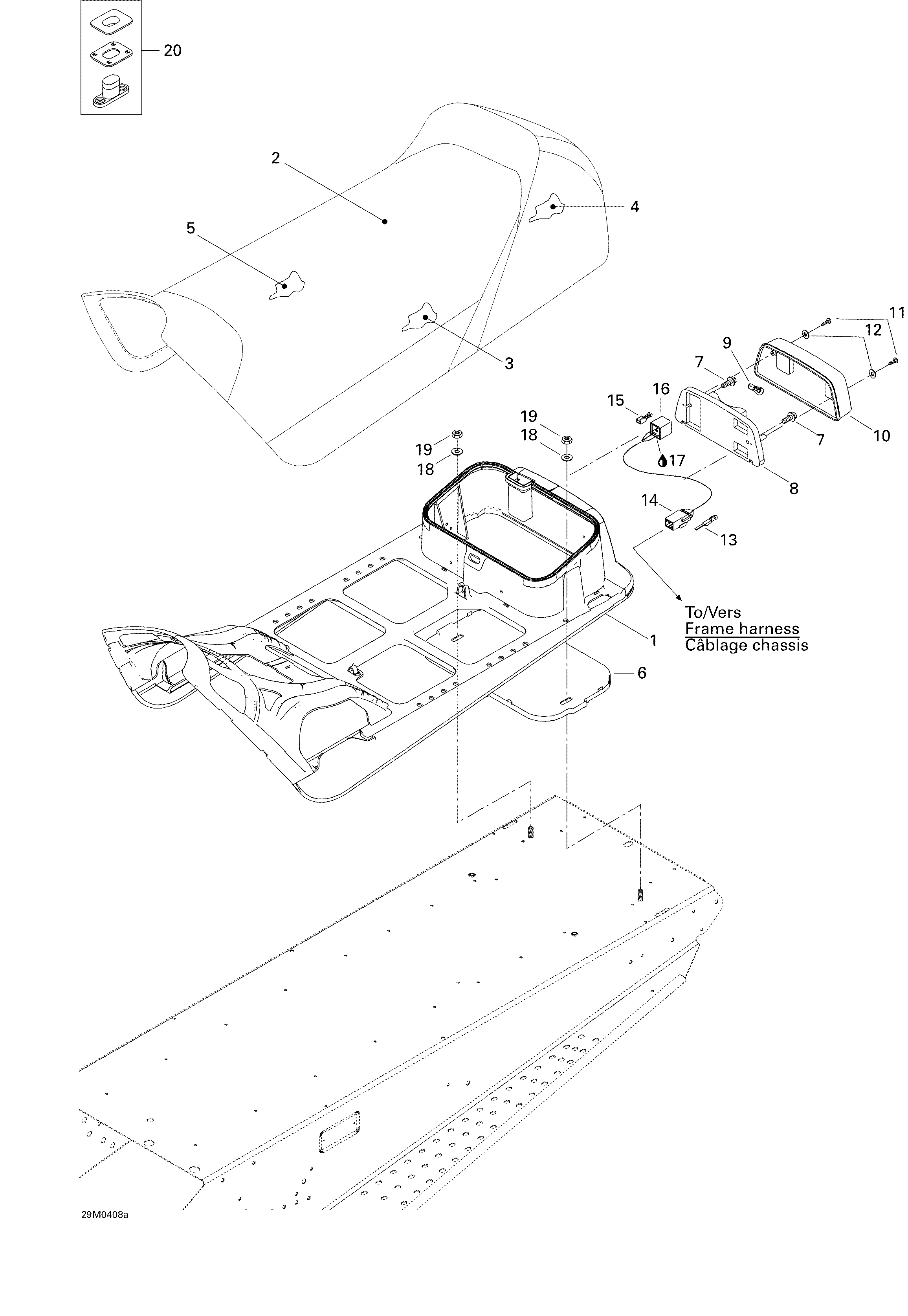

09- Seat (1 Passenger) для BRP Ski-Doo Legend 600 HO SDI - 2004
-
№АртикулНазвание
-
1510003983 Base SiegeBase Siege
-
2510004151 Seat Cover. SPORTSeat Cover. SPORT
-
510004151 Seat Cover. SE BLACK (B-160)Seat Cover. SE BLACK (B-160)
-
510004264 Seat Cover. SE AUTUMN RED (M-549)Seat Cover. SE AUTUMN RED (M-549)
-
3510003944 Seat Foam EpeSeat Foam Epe
-
4510003945 Rear Seat Foam EpeRear Seat Foam Epe
-
5510004255 Seat FoamSeat Foam
-
6572107601 Under ChestUnder Chest
-
7732603006 Hex Plastite Screw #10 X 1''Hex Plastite Screw #10 X 1''
-
8510004061 Light HousingLight Housing
-
9410504100 Tail Lamp BulbTail Lamp Bulb
-
10414513700 LensLens
-
11209632540 Phillips Tapping ScrewPhillips Tapping Screw
-
12414516400 WasherWasher
-
13515175232 Male TerminalMale Terminal
-
14515175494 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
15409205300 Female TerminalFemale Terminal
-
16515175250 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
17293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
18234082410 Flat Washer 8 mmFlat Washer 8 mm
-
19232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
20414728000 Seat BuckleSeat Buckle
