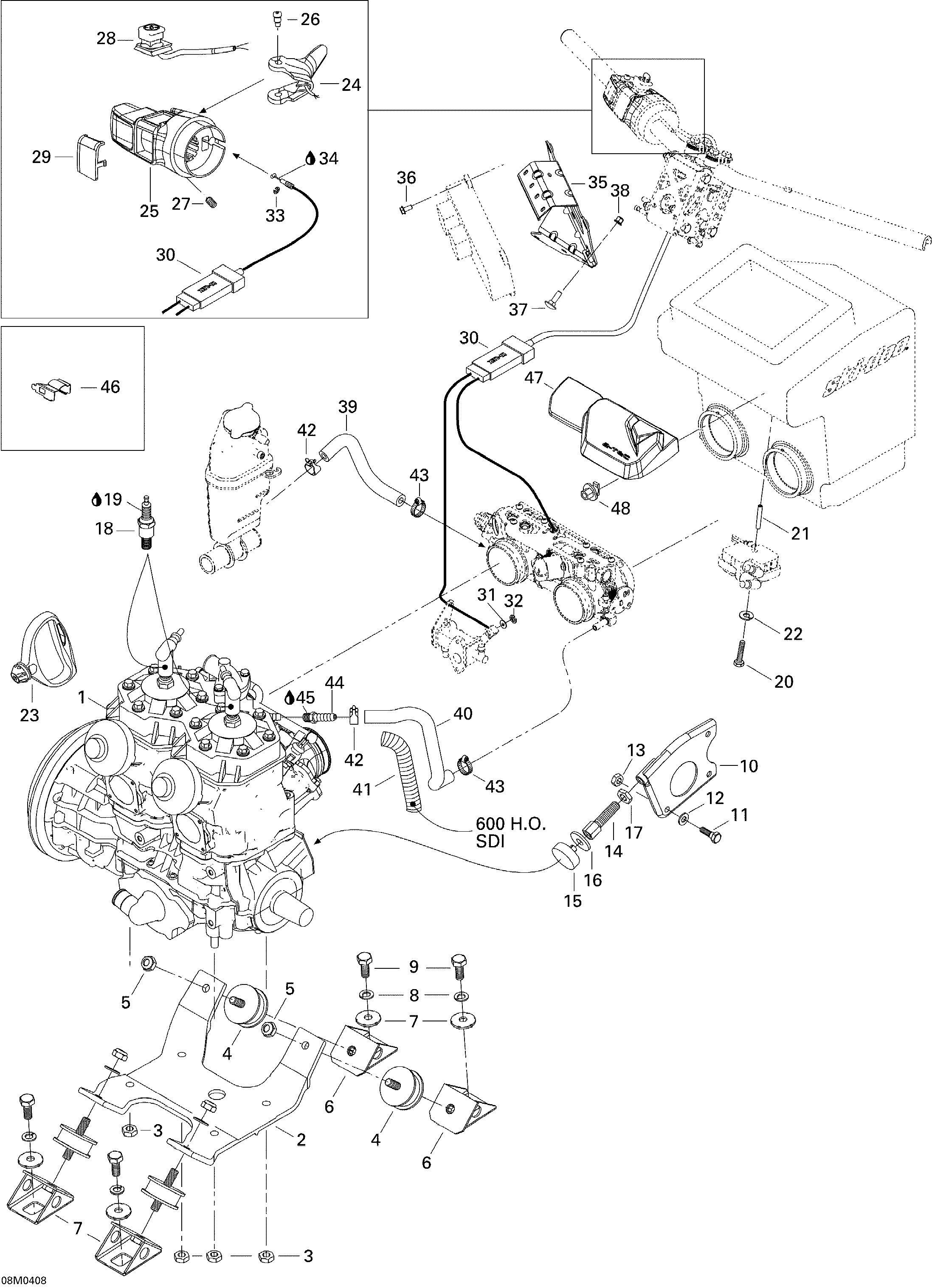

01- Engine Support для BRP Ski-Doo Legend 600 HO SDI - 2004
-
№АртикулНазвание
-
1400509752 «593 H.O.» Sdi Engine (Rer). 600 H.O. SDI«593 H.O.» Sdi Engine (Rer). 600 H.O. SDI
-
400702625 «793» Sdi Engine (Rer). 800 SDI«793» Sdi Engine (Rer). 800 SDI
-
2512059173 Engine SupportEngine Support
-
3233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
4570128700 Rubber MountRubber Mount
-
5233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
6512050900 Engine SupportEngine Support
-
7512056700 Lock WasherLock Washer
-
8234100602 Lock Spring Washer 10 mmLock Spring Washer 10 mm
-
9207102544 Hex Screw M10 X 25Hex Screw M10 X 25
-
10512058500 Support PlateSupport Plate
-
11207182044 Hex Screw M8 X 20Hex Screw M8 X 20
-
12234081410 Flat Washer 8 mmFlat Washer 8 mm
-
13232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
14512058800 Stopper ScrewStopper Screw
-
15512059056 StopperStopper
-
16512059057 WasherWasher
-
17732610019 RH Hex Jam Nut M12RH Hex Jam Nut M12
-
18415128524 Spark Plug NGK BR9ECS 0.8mmSpark Plug NGK BR9ECS 0.8mm
-
19293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
20207065044 Hex Screw M6 X 50Hex Screw M6 X 50
-
21512059812 SpacerSpacer
-
22234161471 Lock Washer 6 mmLock Washer 6 mm
-
23572084400 Starter GripStarter Grip
-
24512059483 Handle Ass'Y 28 mmHandle Ass'Y 28 mm
-
25512059763 Throttle HousingThrottle Housing
-
26732601143 Flanged ScrewFlanged Screw
-
27414440800 Set Screw M8 X 10Set Screw M8 X 10
-
28512059751 Kill SwitchKill Switch
-
29572100901 Switch CoverSwitch Cover
-
30512059362 Throttle Cable. SEThrottle Cable. SE
-
512059882 Throttle Cable. SportThrottle Cable. Sport
-
31234081100 Flat Washer 8 mmFlat Washer 8 mm
-
32414753500 CirclipCirclip
-
33414274500 CirclipCirclip
-
34293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
35512059613 Electronic Control Unit SupportElectronic Control Unit Support
-
36210261280 Hex Forming Screw M6 X 12Hex Forming Screw M6 X 12
-
37207751644 Carriage BoltCarriage Bolt
-
38233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
39512059563 Formed HoseFormed Hose
-
40512059892 Formed HoseFormed Hose
-
41415080000 Tubing (16 mm). 600 H.O. SDITubing (16 mm). 600 H.O. SDI
-
42414655700 Spring ClampSpring Clamp
-
43293650128 Tridon ClampTridon Clamp
-
44293710082 Straight FittingStraight Fitting
-
45293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
46512059809 Heating Element BracketHeating Element Bracket
-
47512059666 MouldingMoulding
-
48512059786 LockLock
