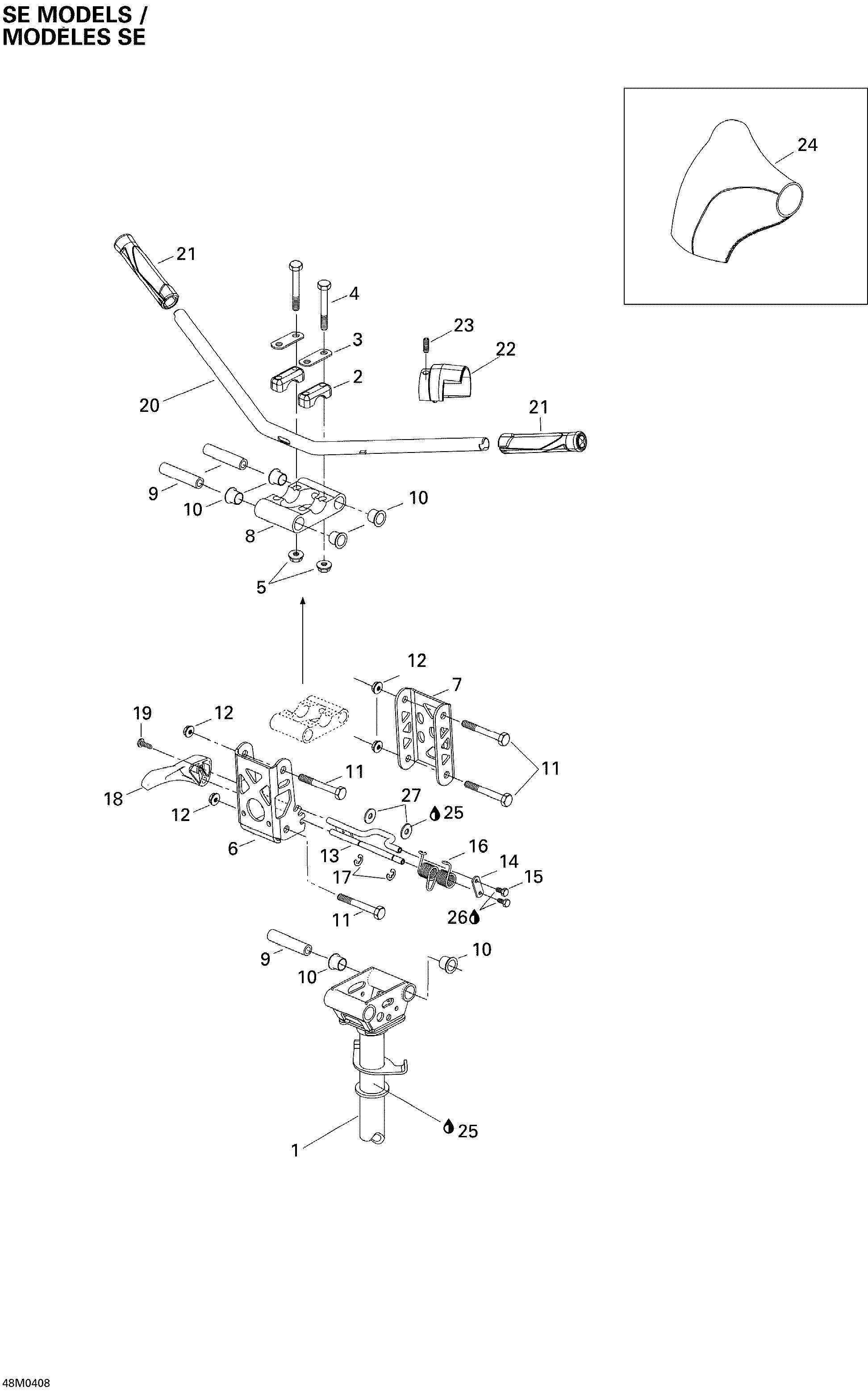

07- Handlebar - Adjustable для BRP Ski-Doo Legend 600 HO SDI - 2004
-
№АртикулНазвание
-
1506151429 Main Tube. SE MODELSMain Tube. SE MODELS
-
2506151622 Steering Support. SE MODELSSteering Support. SE MODELS
-
3506151196 Reinforcement. SE MODELSReinforcement. SE MODELS
-
4207086044 Hex Screw M8 X 60. SE MODELSHex Screw M8 X 60. SE MODELS
-
5233281414 Elastic Flanged Nut M8. SE MODELSElastic Flanged Nut M8. SE MODELS
-
6506151156 Front Arm. SE MODELSFront Arm. SE MODELS
-
7506151152 Rear Arm. SE MODELSRear Arm. SE MODELS
-
8506151147 Mach. Clamp. SE MODELSMach. Clamp. SE MODELS
-
9506151146 Spacer. SE MODELSSpacer. SE MODELS
-
10506151153 Cushion. SE MODELSCushion. SE MODELS
-
11207688044 Hex Flanged Screw M8 X 80. SE MODELSHex Flanged Screw M8 X 80. SE MODELS
-
12233281414 Elastic Flanged Nut M8. SE MODELSElastic Flanged Nut M8. SE MODELS
-
13506151162 Lock. SE MODELSLock. SE MODELS
-
14506151240 Plate. SE MODELSPlate. SE MODELS
-
15207141044 Hex Screw M4 X 10. SE MODELSHex Screw M4 X 10. SE MODELS
-
16506151219 Spring. SE MODELSSpring. SE MODELS
-
17414274500 Circlip. SE MODELSCirclip. SE MODELS
-
18506151188 Handle. SE MODELSHandle. SE MODELS
-
19205041284 Socket Head Screw M4 X 12. SE MODELSSocket Head Screw M4 X 12. SE MODELS
-
20506151685 Handlebar. SE MODELSHandlebar. SE MODELS
-
21506151714 Handle Grip. SE MODELSHandle Grip. SE MODELS
-
22506151566 Adaptator. SE MODELSAdaptator. SE MODELS
-
23206581244 Socket Set Screw M8 X 12. SE MODELSSocket Set Screw M8 X 12. SE MODELS
-
24506151598 Cover. SE MODELSCover. SE MODELS
-
25219700417 Synthetic Grease, 400g. SE MODELSSynthetic Grease, 400g. SE MODELS
-
26293800060 Loctite 243, 10 ml. SE MODELSLoctite 243, 10 ml. SE MODELS
-
27517302265 Washer. SE MODELSWasher. SE MODELS
