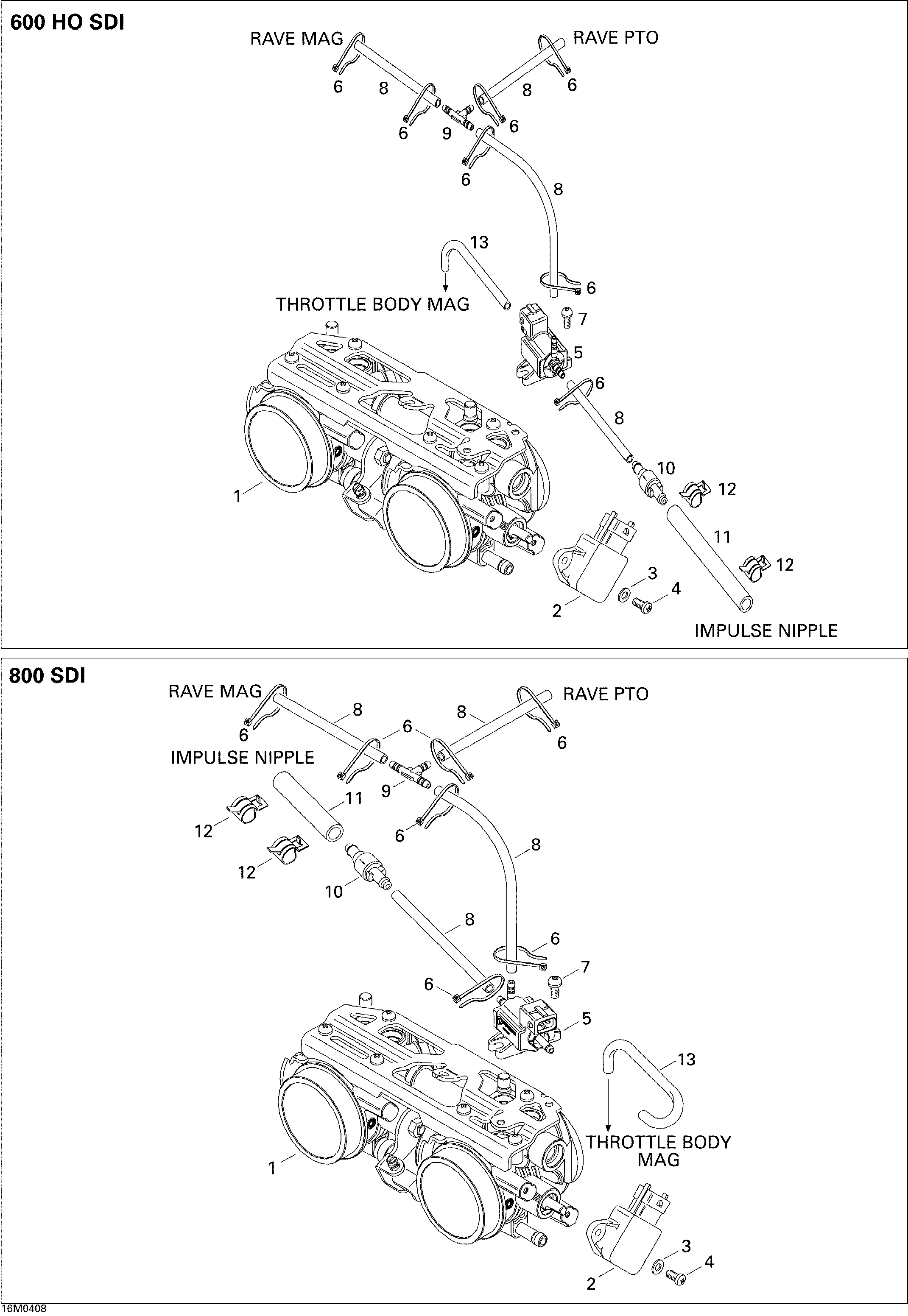

02- Throttle Body для BRP Ski-Doo Legend 600 HO SDI - 2004
-
№АртикулНазвание
-
1420889195 Throttle Body. 600 HO SDIThrottle Body. 600 HO SDI
-
420889190 Throttle Body. 800 SDIThrottle Body. 800 SDI
-
2270000251 Position SensorPosition Sensor
-
3234041600 Flat Washer 4 mmFlat Washer 4 mm
-
4208641660 Screw Phillips M4 X 16Screw Phillips M4 X 16
-
5420664630 Solenoid ValveSolenoid Valve
-
6420866718 Tie RapTie Rap
-
7420940011 Screw M5 X 10Screw M5 X 10
-
8420660571 High Pressure Air Hose 180 mmHigh Pressure Air Hose 180 mm
-
9293710068 T-FittingT-Fitting
-
10275500479 Check ValveCheck Valve
-
11420660562 Pressure Line. 600 HO SDIPressure Line. 600 HO SDI
-
420660561 High Pressure Air Hose 50 mm. 800 SDIHigh Pressure Air Hose 50 mm. 800 SDI
-
12420853510 ClampClamp
-
13420660990 Formed HoseFormed Hose
