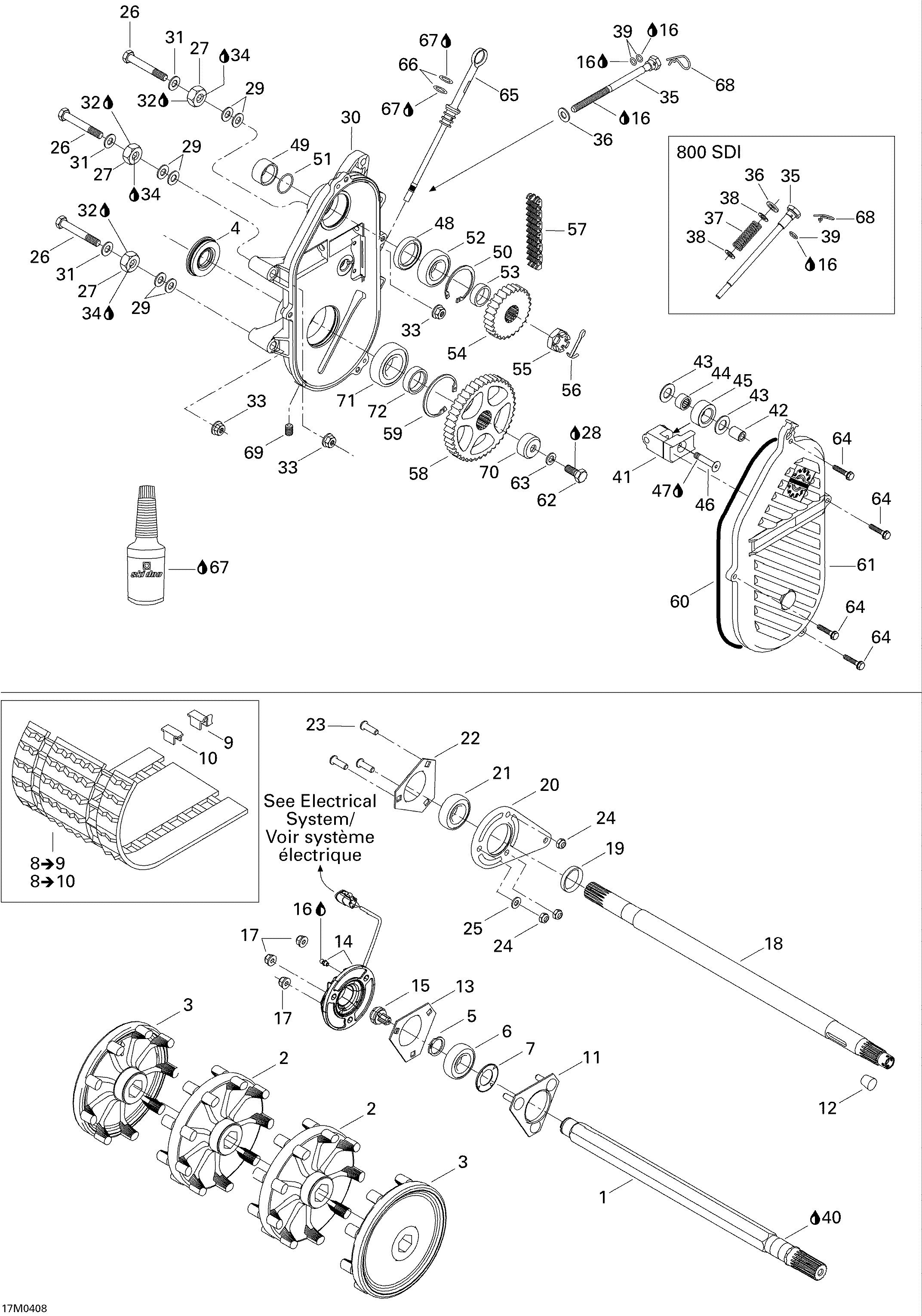

05- Drive System для BRP Ski-Doo Legend 800 SDI - 2004
-
№АртикулНазвание
-
1501027400 Drive AxleDrive Axle
-
2504151781 Sprocket 9-TeethSprocket 9-Teeth
-
3504151782 Half Sprocket 9-TeethHalf Sprocket 9-Teeth
-
4504151918 Oil Seal Ass'YOil Seal Ass'Y
-
5371910200 CirclipCirclip
-
6504152009 Ball BearingBall Bearing
-
7501017400 Ball Bearing ProtectorBall Bearing Protector
-
8504151802 Track Ass'Y (15''X121''X 0.88''). Includes items 8 to 10 / Legend SE & Legend SportTrack Ass'Y (15''X121''X 0.88''). Includes items 8 to 10 / Legend SE & Legend Sport
-
8504151935 Track Ass'Y. Includes items 8 to 9 / Legend SE GT & Legend Sport GTTrack Ass'Y. Includes items 8 to 9 / Legend SE GT & Legend Sport GT
-
8504152028 Track Ass'Y (15''X136''X 1.250'') Europe. Includes items 8 to 9 / Legend SE GT EupopeTrack Ass'Y (15''X136''X 1.250'') Europe. Includes items 8 to 9 / Legend SE GT Eupope
-
9500003400 Guide Cleat. Legend SE & Legend SportGuide Cleat. Legend SE & Legend Sport
-
9500003400 Guide Cleat. Legend SE GT & Legend Sport GTGuide Cleat. Legend SE GT & Legend Sport GT
-
9500003400 Guide Cleat. Legend SE GT EupopeGuide Cleat. Legend SE GT Eupope
-
10504151828 Cleat. Legend SE & Legend SportCleat. Legend SE & Legend Sport
-
11504151860 Bearing HousingBearing Housing
-
12414784800 CorkCork
-
13501025000 FlangeFlange
-
14504152173 Flange (Speed Drive Insert)Flange (Speed Drive Insert)
-
15504152040 Magnetic AdaptatorMagnetic Adaptator
-
16219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
17233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
18501026300 CountershaftCountershaft
-
19504149100 SpacerSpacer
-
2080044200 SpacerSpacer
-
21504152026 Ball BearingBall Bearing
-
22501025000 FlangeFlange
-
23205482546 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
24232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
25234081410 Flat Washer 8 mmFlat Washer 8 mm
-
26207108044 Hex Screw M10 X 80Hex Screw M10 X 80
-
27504083800 SpacerSpacer
-
28293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
29504073700 WasherWasher
-
30504152062 Chaincase. 800 SDIChaincase. 800 SDI
-
30504152064 Chaincase. 600 H.O. SDIChaincase. 600 H.O. SDI
-
31503183800 WasherWasher
-
32293800070 Loctite 767, Antiseize, 8 OzLoctite 767, Antiseize, 8 Oz
-
33233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
34293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
35504151946 Adjusting Screw. 800 SDIAdjusting Screw. 800 SDI
-
35732601314 Adjusting Screw. 600 H.O. SDIAdjusting Screw. 600 H.O. SDI
-
36234001410 Flat Washer 10 mm. 600 H.O. SDIFlat Washer 10 mm. 600 H.O. SDI
-
36503189148 Washer. 800 SDIWasher. 800 SDI
-
37504151945 Spring. 800 SDISpring. 800 SDI
-
38503125900 Hardened Washer. 800 SDIHardened Washer. 800 SDI
-
39414484400 O-Ring. 600 H.O. SDIO-Ring. 600 H.O. SDI
-
39504151954 O-Ring. 800 SDIO-Ring. 800 SDI
-
40219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
41504151940 Chain Tensioner. 800 SDIChain Tensioner. 800 SDI
-
41504151951 Chain Tensioner. 600 H.O. SDIChain Tensioner. 600 H.O. SDI
-
42504080200 SpacerSpacer
-
43504080300 WasherWasher
-
44405403000 Needle BearingNeedle Bearing
-
45414531300 RollerRoller
-
46732601144 ScrewScrew
-
47293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
48415049300 SealSeal
-
49507031500 SpacerSpacer
-
50371901700 Circlip (Interior)Circlip (Interior)
-
51414876700 O-RingO-Ring
-
52504152006 Ball BearingBall Bearing
-
53504147200 ShimShim
-
54504085300 Sprocket (Large) (26 Teeth). Legend SE 800 SDISprocket (Large) (26 Teeth). Legend SE 800 SDI
-
54504139700 Sprocket (24 Teeth). Legend SE GT 800 SDISprocket (24 Teeth). Legend SE GT 800 SDI
-
54504139700 Sprocket (24 Teeth). Legend SE GT 800 SDI EuropeSprocket (24 Teeth). Legend SE GT 800 SDI Europe
-
54504139700 Sprocket (24 Teeth). Legend SE 600 H.O. SDISprocket (24 Teeth). Legend SE 600 H.O. SDI
-
54504139700 Sprocket (24 Teeth). Legend Sport 600 H.O. SDISprocket (24 Teeth). Legend Sport 600 H.O. SDI
-
54504091000 Sprocket (23 Teeth). Legend SE GT 600 H.O. SDISprocket (23 Teeth). Legend SE GT 600 H.O. SDI
-
54504091000 Sprocket (23 Teeth). Legend SE GT 600 H.O. SDI EuropeSprocket (23 Teeth). Legend SE GT 600 H.O. SDI Europe
-
54504091000 Sprocket (23 Teeth). Legend Sport GT 600 H.O. SDISprocket (23 Teeth). Legend Sport GT 600 H.O. SDI
-
55250000012 Hex Castellated Nut M20Hex Castellated Nut M20
-
56371006300 Cotter PinCotter Pin
-
57504151856 Drive Chain Large (76 Links). Legend SE 800 SDIDrive Chain Large (76 Links). Legend SE 800 SDI
-
57504151857 Drive Chain Large (74 Links). Legend SE, Legend SE GT & Legend SE GT EuropeDrive Chain Large (74 Links). Legend SE, Legend SE GT & Legend SE GT Europe
-
57504151857 Drive Chain Large (74 Links). Legend Sport & Legend Sport GTDrive Chain Large (74 Links). Legend Sport & Legend Sport GT
-
58504148500 43 Teeth Sprocket (Large)43 Teeth Sprocket (Large)
-
59415064300 Circlip (Interior)Circlip (Interior)
-
60415046400 O-RingO-Ring
-
61504152027 Chaincase CoverChaincase Cover
-
62207102544 Hex Screw M10 X 25Hex Screw M10 X 25
-
63234100602 Lock Spring Washer 10 mmLock Spring Washer 10 mm
-
64210263080 Hex Forming Screw M6 X 30Hex Forming Screw M6 X 30
-
65504151703 Filler Cap Ass'YFiller Cap Ass'Y
-
66414969400 O-RingO-Ring
-
67413803300 Synthetic Chaincase Oil, 12 x 355 mlSynthetic Chaincase Oil, 12 x 355 ml
-
68414575600 Hair PinHair Pin
-
69504151921 Plug 1/8''-27Plug 1/8''-27
-
70504152104 CapCap
-
71504152005 Ball BearingBall Bearing
-
72504152058 ShimShim
