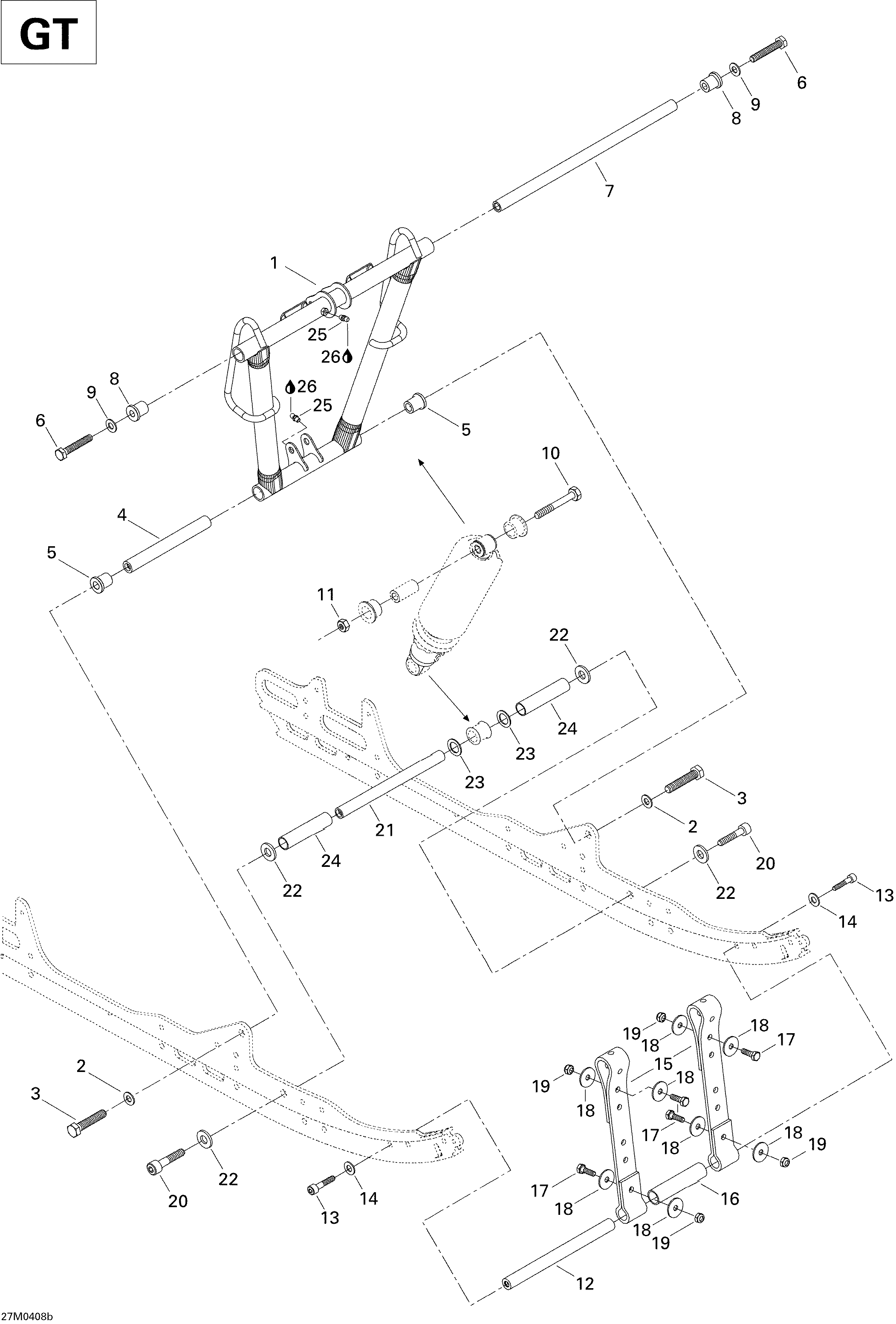

08- Front Arm GT для BRP Ski-Doo Legend 800 SDI - 2004
-
№АртикулНазвание
-
1503189292 Front ArmFront Arm
-
2503189276 WasherWasher
-
3207226044 Hex Screw M12 X 60 (Scotch Grip)Hex Screw M12 X 60 (Scotch Grip)
-
4503189313 ShaftShaft
-
5503189323 CushionCushion
-
6207205544 Hex Screw M10 X 55 (Scotch Grip)Hex Screw M10 X 55 (Scotch Grip)
-
7503190387 ShaftShaft
-
8503189324 CushionCushion
-
9732900049 WasherWasher
-
10207005044 Hex Screw M10 X 50Hex Screw M10 X 50
-
11233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
12503189562 AxleAxle
-
13205503544 Socket Head Screw M10 X 35 (Scotch Grip)Socket Head Screw M10 X 35 (Scotch Grip)
-
14503189564 WasherWasher
-
15503190563 Stopper Strap (Large)Stopper Strap (Large)
-
16503189265 SpacerSpacer
-
17207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
18224081301 Flat WasherFlat Washer
-
19232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
20205523544 Socket Head Screw M12 X 35 (Scotch Grip)Socket Head Screw M12 X 35 (Scotch Grip)
-
21503189272 Center Shock ShaftCenter Shock Shaft
-
22503189276 WasherWasher
-
23503189273 WasherWasher
-
24503189274 SpacerSpacer
-
25408200700 Grease FittingGrease Fitting
-
26219700417 Synthetic Grease, 400gSynthetic Grease, 400g
