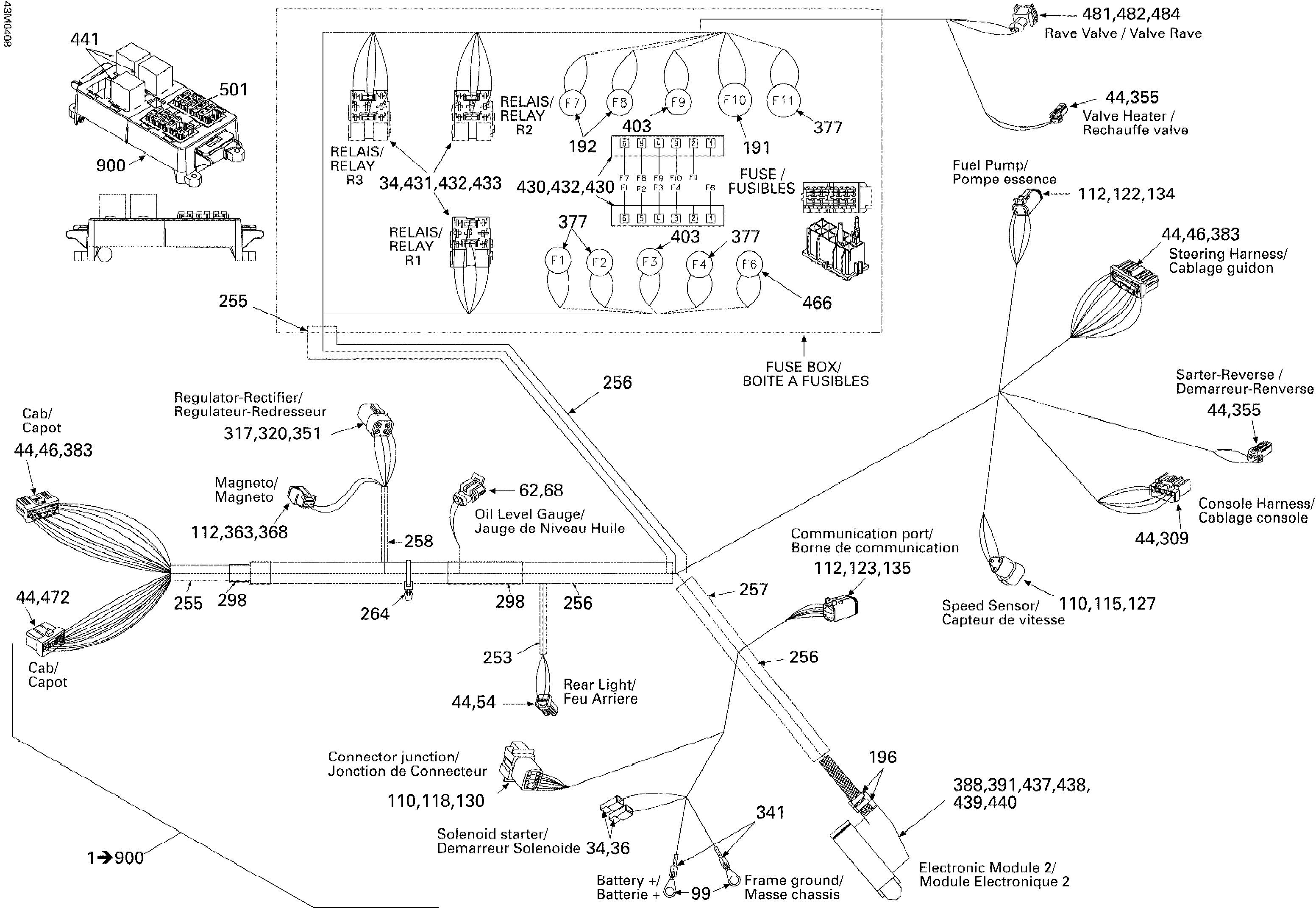

10- Frame Harness для BRP Ski-Doo Legend 800 SDI - 2004
-
№АртикулНазвание
-
1515176006 Frame Harness. Includes items 1 to 900Frame Harness. Includes items 1 to 900
-
34409010100 Female TerminalFemale Terminal
-
36409010400 Female Terminal Housing (1 Circuit)Female Terminal Housing (1 Circuit)
-
44515175231 Female TerminalFemale Terminal
-
46515175282 Female TerminalFemale Terminal
-
54515175495 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
62278001014 Female TerminalFemale Terminal
-
69409209500 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
99278000992 Ring TerminalRing Terminal
-
110278000631 Male TerminalMale Terminal
-
112278000632 Female TerminalFemale Terminal
-
115409207000 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
118278001742 Male Terminal Housing (8 Circuits)Male Terminal Housing (8 Circuits)
-
122278000739 Male Housing (4 Circuits)Male Housing (4 Circuits)
-
123278000736 Female Terminal Housing (6 Circuits)Female Terminal Housing (6 Circuits)
-
127409207600 Male Lock (3 Circuits)Male Lock (3 Circuits)
-
130515175276 Lock Male (8 Circuits)Lock Male (8 Circuits)
-
134278000738 Lock Female (4 Circuits)Lock Female (4 Circuits)
-
135278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
138293000052 PlugPlug
-
191410917200 Fuse (30 Amperes)Fuse (30 Amperes)
-
192409003900 Fuse (20 Amperes)Fuse (20 Amperes)
-
196293750002 Tie Rap 130 mmTie Rap 130 mm
-
206409004200 Female TerminalFemale Terminal
-
253515175442 Tubing (6 mm)Tubing (6 mm)
-
255409901800 Tubing (13 mm)Tubing (13 mm)
-
256415080000 Tubing (16 mm)Tubing (16 mm)
-
257409901600 Tubing (19 mm)Tubing (19 mm)
-
258415079900 Tubing (10 mm)Tubing (10 mm)
-
264515175220 Tie RapTie Rap
-
298293740005 Vinyl Tape 3/4''Vinyl Tape 3/4''
-
309515175543 Female Terminal Housing (6 Circuits)Female Terminal Housing (6 Circuits)
-
317278001473 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
319515175568 Male TerminalMale Terminal
-
320515175567 Female TerminalFemale Terminal
-
351278001474 Female Lock (4 Circuits)Female Lock (4 Circuits)
-
355515175658 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
363515175670 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
368515175675 Female Lock (2 Circuits)Female Lock (2 Circuits)
-
377278000344 FuseFuse
-
383515175719 Female Terminal Housing (11 Circuits)Female Terminal Housing (11 Circuits)
-
387293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
388278001750 Female TerminalFemale Terminal
-
403278000704 Fuse (7.5 Amperes)Fuse (7.5 Amperes)
-
430515175857 Fuse HolderFuse Holder
-
431515175856 Relay HolderRelay Holder
-
432515175855 Female TerminalFemale Terminal
-
433515175854 Female TerminalFemale Terminal
-
436515175881 Female TerminalFemale Terminal
-
437515175886 SealSeal
-
438515175883 LatchLatch
-
439515175884 LockLock
-
440515175885 CoverCover
-
441410113604 RelayRelay
-
466415128525 Fuse (0.5 Ampere)Fuse (0.5 Ampere)
-
472415128527 Female Terminal HousingFemale Terminal Housing
-
481415128500 Female Terminal HousingFemale Terminal Housing
-
482415128502 Female TerminalFemale Terminal
-
484415128501 SealSeal
-
501515175739 Fuse Box BaseFuse Box Base
