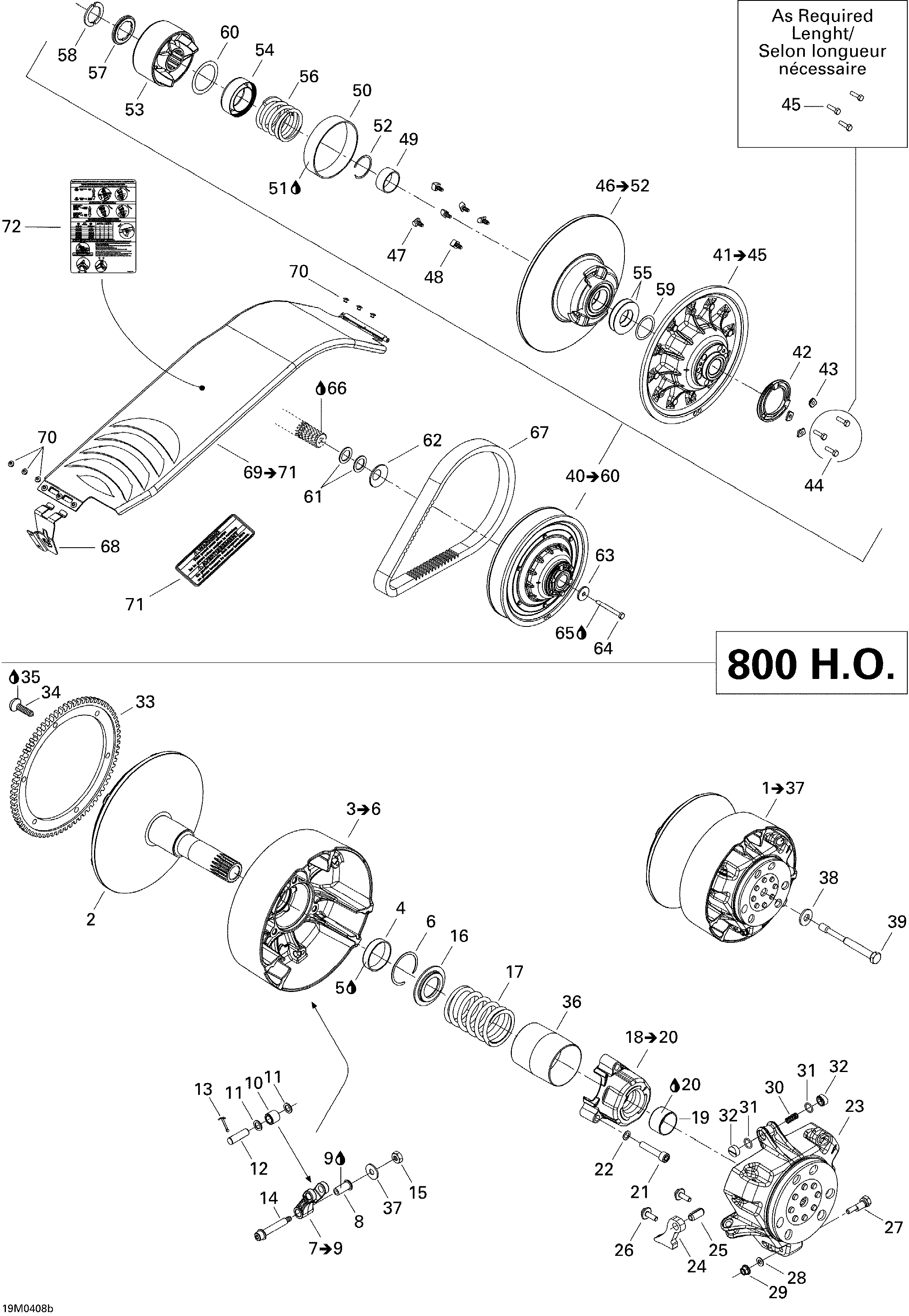

05- Pulley System (800) для BRP Ski-Doo Legend 800 SDI - 2004
-
№АртикулНазвание
-
2417222167 Fixed FlangeFixed Flange
-
3417222668 Sliding Flange Ass'Y. INCLUDES 3 TO 6Sliding Flange Ass'Y. INCLUDES 3 TO 6
-
4417006900 BushingBushing
-
5413408300 Glue Tube, Loctite 454, 20GGlue Tube, Loctite 454, 20G
-
6293370037 CirclipCirclip
-
7417222671 Lever Ass'Y. INCLUDES 7 TO 9Lever Ass'Y. INCLUDES 7 TO 9
-
8417222633 BushingBushing
-
9413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
10417003900 Roller Ass'YRoller Ass'Y
-
11417004302 Stopper WasherStopper Washer
-
12417004308 PinPin
-
13732958001 Cotter PinCotter Pin
-
14417222028 Screw Ass'YScrew Ass'Y
-
15232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
16417222312 Spring SeatSpring Seat
-
17415015300 Spring (Violet/Yellow)Spring (Violet/Yellow)
-
18417007500 Spring Cover Ass'Y. INCLUDES 18 TO 20Spring Cover Ass'Y. INCLUDES 18 TO 20
-
19417009204 BushingBushing
-
20413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
21205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
22250200009 Lock Washer 8 mmLock Washer 8 mm
-
23417222213 Governor CupGovernor Cup
-
24417222546 Ramp 414Ramp 414
-
25250400009 Rolled Pin M10 X 22Rolled Pin M10 X 22
-
26250000059 Hex Flanged Screw M6 X 18Hex Flanged Screw M6 X 18
-
27417005500 Calibration ScrewCalibration Screw
-
28417005600 WasherWasher
-
29233061414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
30417005700 SpringSpring
-
31732401030 O-RingO-Ring
-
32417222362 Slider ShoeSlider Shoe
-
33417222669 Ring GearRing Gear
-
34236281684 Hex Screw M8 X 16Hex Screw M8 X 16
-
35293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
36417009205 GuardGuard
-
37234061410 Flat WasherFlat Washer
-
38250200006 Conical Spring Washer 14 mmConical Spring Washer 14 mm
-
39417120000 Drive Pulley BoltDrive Pulley Bolt
-
41417126603 Fixed Flange Ass'Y. INCLUDES 41 TO 45Fixed Flange Ass'Y. INCLUDES 41 TO 45
-
42415005800 Adjustment RingAdjustment Ring
-
43415005900 Adjustment ShimAdjustment Shim
-
44207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
45207162244 Hex Screw M6 X 22Hex Screw M6 X 22
-
46417126605 Sliding Flange Ass'Y. INCLUDES 46 TO 52Sliding Flange Ass'Y. INCLUDES 46 TO 52
-
47417126373 Rear Cam Shoe SliderRear Cam Shoe Slider
-
48417126374 Front Cam Shoe SliderFront Cam Shoe Slider
-
50414978100 BushingBushing
-
51413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
52371911200 CirclipCirclip
-
53417126385 Cam Ass'YCam Ass'Y
-
54417126381 GuardGuard
-
55504099600 Thrust WasherThrust Washer
-
56417126687 Release Spring (Black)Release Spring (Black)
-
57417126733 SpacerSpacer
-
58417126734 Half KeyHalf Key
-
59504112300 ShimShim
-
60417126322 Swivel AbutmentSwivel Abutment
-
61417300054 SpacerSpacer
-
62417300238 ProtectorProtector
-
63517302322 WasherWasher
-
64207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
65293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
66293800070 Loctite 767, Antiseize, 8 OzLoctite 767, Antiseize, 8 Oz
-
67417300166 Drive Belt. 800 SDIDrive Belt. 800 SDI
-
68417300001 BracketBracket
-
69417300173 Belt Guard Ass'Y. INCLUDES 69 TO 71Belt Guard Ass'Y. INCLUDES 69 TO 71
-
70390402200 Rivet 3/16''Rivet 3/16''
-
71516001190 Warning LabelWarning Label
-
72516001639 Suspension Adjustment Decal. 1 PASSENGER SEATSuspension Adjustment Decal. 1 PASSENGER SEAT
-
516001640 Suspension Adjustment Decal. 2 PASSENGER SEATSuspension Adjustment Decal. 2 PASSENGER SEAT
