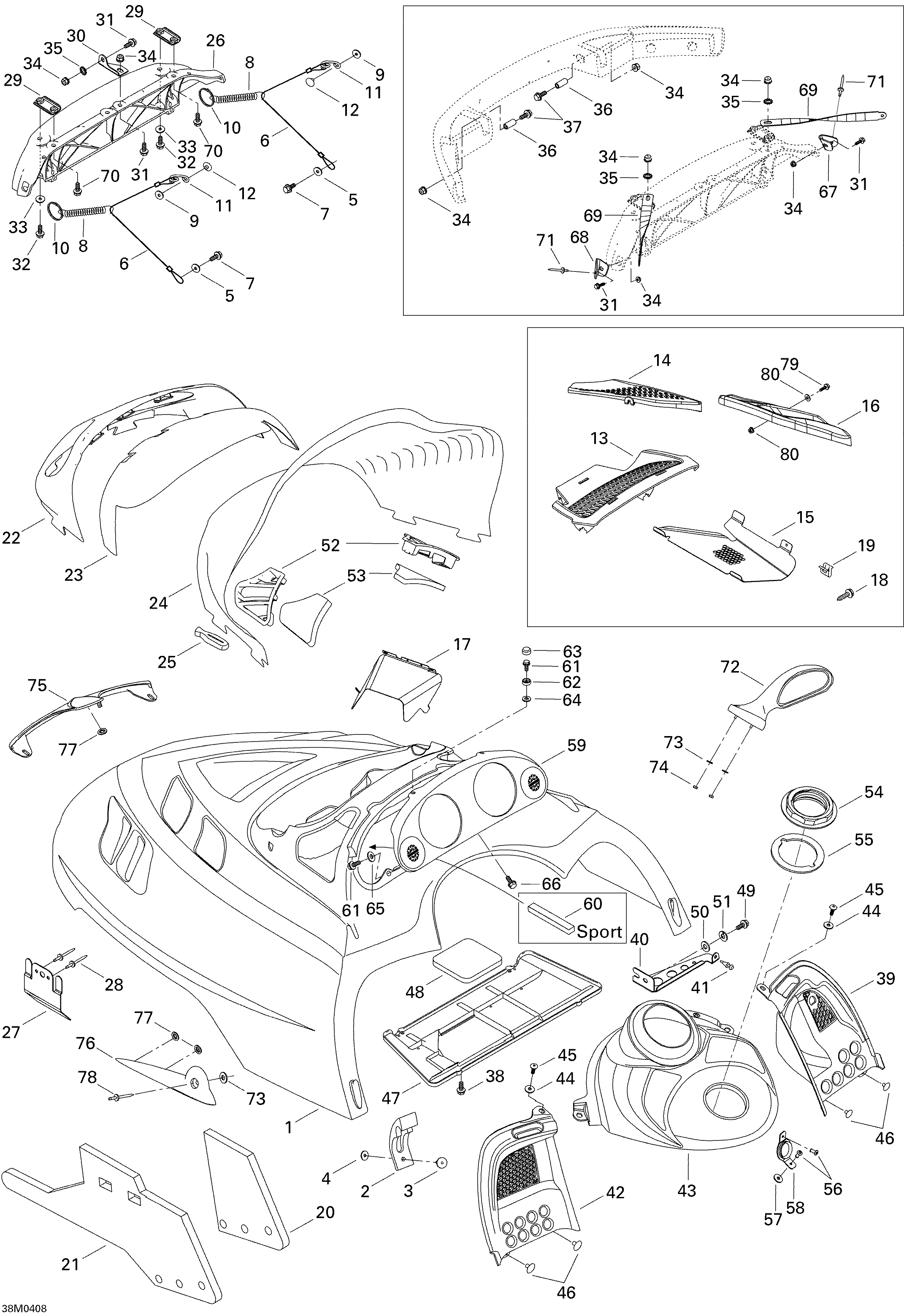

09- Hood для BRP Ski-Doo Legend 800 SDI - 2004
-
№АртикулНазвание
-
1517302740 Hood (Black (B-160)). B-160Hood (Black (B-160)). B-160
-
517303051 Hood (Autumn (M-549)). M-549Hood (Autumn (M-549)). M-549
-
2570027100 Hood LatchHood Latch
-
3293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
4517124300 WasherWasher
-
5391301600 WasherWasher
-
6415093900 Retainer CableRetainer Cable
-
7365901000 Hex Taping Screw #12 X 1/2''Hex Taping Screw #12 X 1/2''
-
8415043300 SpringSpring
-
9517124300 WasherWasher
-
10415058300 RingRing
-
11517262800 BracketBracket
-
12293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
13517302026 Center Grill (Black)Center Grill (Black)
-
14517303032 RH Intermediate GrillRH Intermediate Grill
-
517303033 LH Intermediate GrillLH Intermediate Grill
-
15517303034 RH Side GrillRH Side Grill
-
517303036 LH Side GrillLH Side Grill
-
16517302978 RH GrillRH Grill
-
517302036 LH Side GrillLH Side Grill
-
17517302979 RH Air DeflectorRH Air Deflector
-
517303038 LH Air DeflectorLH Air Deflector
-
18732601210 Hex Flanged Screw #8 X 3/8Hex Flanged Screw #8 X 3/8
-
19517302785 ClipClip
-
20517302675 RH Side FoamRH Side Foam
-
21517302630 LH Side FoamLH Side Foam
-
22517302158 Headlamp Moulding (Black (B-160)). B-160Headlamp Moulding (Black (B-160)). B-160
-
517303052 Headlamp Moulding (Autumn (M-549)). M-549Headlamp Moulding (Autumn (M-549)). M-549
-
23517302003 Windshield SupportWindshield Support
-
24517302356 WindshieldWindshield
-
517302560 High WindshieldHigh Windshield
-
25570023800 Windshield LatchWindshield Latch
-
26517302631 HingeHinge
-
27517302615 Hood GuideHood Guide
-
28390910000 Rivet 3/16''Rivet 3/16''
-
29517302176 Hinge Side PlateHinge Side Plate
-
30517302045 Hinge Center PlateHinge Center Plate
-
31207661684 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
32207162060 Hex Forming Screw M6 X 20Hex Forming Screw M6 X 20
-
33234062600 Flat WasherFlat Washer
-
34233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
35250200041 Serrated Lock Washer 6 mmSerrated Lock Washer 6 mm
-
36517302179 BushingBushing
-
37207663544 Hex Flanged Screw M6 X 35Hex Flanged Screw M6 X 35
-
38243141640 Hex Plastite ScrewHex Plastite Screw
-
39517302027 RH ConsoleRH Console
-
40517302621 RH Console SupportRH Console Support
-
41517302624 Rubber StopperRubber Stopper
-
42517302006 LH ConsoleLH Console
-
43517302702 Center Console. SECenter Console. SE
-
517302757 Center Console. SPORTCenter Console. SPORT
-
44391301600 WasherWasher
-
45732600030 ScrewScrew
-
46293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
47517302836 Air Intake PlateAir Intake Plate
-
48517302425 Secondary FoamSecondary Foam
-
49210261280 Hex Forming Screw M6 X 12Hex Forming Screw M6 X 12
-
50234061410 Flat WasherFlat Washer
-
51234161471 Lock Washer 6 mmLock Washer 6 mm
-
52517302024 RH Air Intake GrillRH Air Intake Grill
-
517302025 LH Air Intake GrillLH Air Intake Grill
-
53517302151 Air Intake FoamAir Intake Foam
-
54517302043 Console NutConsole Nut
-
55293250029 GasketGasket
-
56390409400 Pop Rivet 5/32''Pop Rivet 5/32''
-
57517302286 Rubber StopperRubber Stopper
-
58517302129 Rope GuideRope Guide
-
59517302760 Indicator Support. SPORTIndicator Support. SPORT
-
517302761 Indicator Support. SEIndicator Support. SE
-
60517302420 Foam. SPORTFoam. SPORT
-
61241140060 Screw K40 X 10Screw K40 X 10
-
62414436800 Retainer CapRetainer Cap
-
63414436900 Snap Cap (Black)Snap Cap (Black)
-
64234042600 Flat Washer 4 mmFlat Washer 4 mm
-
65517124300 WasherWasher
-
66732601210 Hex Flanged Screw #8 X 3/8Hex Flanged Screw #8 X 3/8
-
67517302254 RH Corner SupportRH Corner Support
-
68517302255 LH Corner SupportLH Corner Support
-
69517302837 Hood ClampHood Clamp
-
70207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
71390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
72517302679 RH MirrorRH Mirror
-
517302681 LH MirrorLH Mirror
-
73517124300 WasherWasher
-
74232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
75517302780 Front Hood MouldingFront Hood Moulding
-
76517302781 RH Hood MouldingRH Hood Moulding
-
517302782 LH Hood MouldingLH Hood Moulding
-
77732610072 Push NutPush Nut
-
78293150092 Pop Rivet 3/16''Pop Rivet 3/16''
-
79207141644 SCREW-HEX.CAP DIN.933SCREW-HEX.CAP DIN.933
-
80391301000 WasherWasher
-
81233241414 Flanged Elastic Nut M4Flanged Elastic Nut M4
