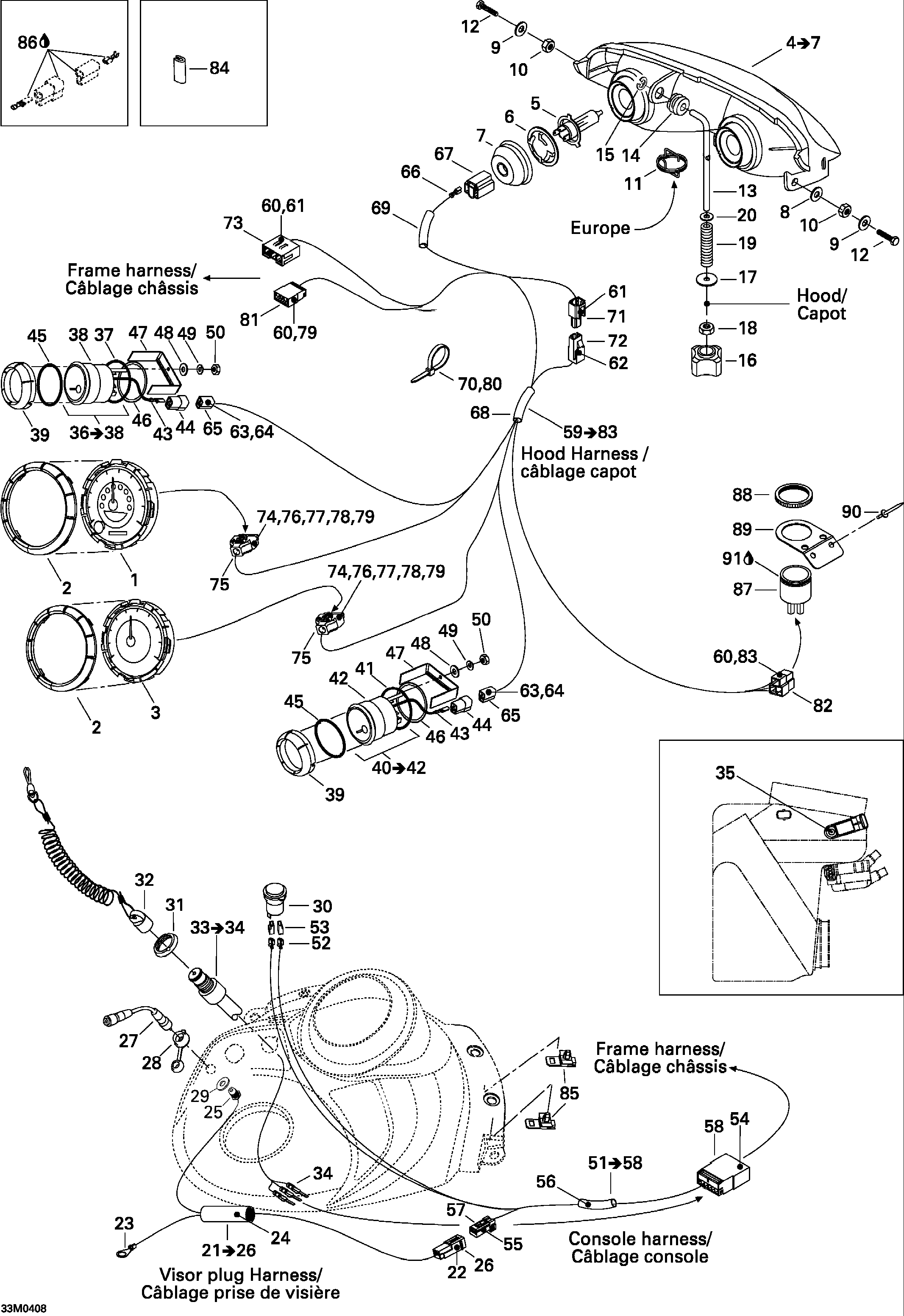

10- Cab Harness для BRP Ski-Doo Legend 800 SDI - 2004
-
№АртикулНазвание
-
1515176012 SpeedometerSpeedometer
-
2515175651 Gauge RingGauge Ring
-
3515176072 TachometerTachometer
-
4515175909 Halogen Headlamp. Includes items 4 to 7Halogen Headlamp. Includes items 4 to 7
-
5410504401 Halogen Bulb (60/55 W, 12 V)Halogen Bulb (60/55 W, 12 V)
-
6515175910 Bulb HolderBulb Holder
-
7515175911 CoverCover
-
8234001410 Flat Washer 10 mmFlat Washer 10 mm
-
9234051410 Flat WasherFlat Washer
-
10250100018 Nut M5Nut M5
-
11515175324 Spring (Europe). EuropeSpring (Europe). Europe
-
12207053544 Hex Screw M5 X 35Hex Screw M5 X 35
-
13517295800 Adjuster RodAdjuster Rod
-
14415100800 GrommetGrommet
-
15732610072 Push NutPush Nut
-
16515175548 HandleHandle
-
17224060251 WasherWasher
-
18232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
19415100600 SpringSpring
-
20234061410 Flat WasherFlat Washer
-
21515175799 Visor Plug Harness. Includes items 21 to 26Visor Plug Harness. Includes items 21 to 26
-
22515175232 Male TerminalMale Terminal
-
23515175172 Open BarrelOpen Barrel
-
24515175332 TubingTubing
-
25415096100 Visor PlugVisor Plug
-
26515175654 Male Terminal Housing (2 Circuits)Male Terminal Housing (2 Circuits)
-
27515175971 Visor Plug ExtensionVisor Plug Extension
-
28572103300 CapCap
-
29503175800 WasherWasher
-
30861507200 Power Outlet Kit (12 Volts). SEPower Outlet Kit (12 Volts). SE
-
31278000508 Safety Switch NutSafety Switch Nut
-
32515166900 Dess Cap Ass'YDess Cap Ass'Y
-
33515175145 Dess Switch. Includes items 33 to 34Dess Switch. Includes items 33 to 34
-
34515175232 Male TerminalMale Terminal
-
35414745900 Phillips ScrewPhillips Screw
-
36515175601 Temperature Gauge. Includes items 36 to38 / SETemperature Gauge. Includes items 36 to38 / SE
-
37414807200 O-RingO-Ring
-
38414806600 Case HolderCase Holder
-
39515175711 Ring Gauge. SERing Gauge. SE
-
40515175529 Fuel Gauge. Includes items 40 to 42 / SEFuel Gauge. Includes items 40 to 42 / SE
-
41414807200 O-RingO-Ring
-
42414806600 Case HolderCase Holder
-
43409210000 Male Terminal. SEMale Terminal. SE
-
44409204200 Male Terminal Housing (3 Circuits). SEMale Terminal Housing (3 Circuits). SE
-
45414807200 O-Ring. SEO-Ring. SE
-
46517258600 Washer. SEWasher. SE
-
47415099800 Case Holder. SECase Holder. SE
-
48391301700 Washer. SEWasher. SE
-
49414833700 Lock Washer. SELock Washer. SE
-
50414833600 Nut. SENut. SE
-
51515176084 Console Harness. Includes items 51 to 58Console Harness. Includes items 51 to 58
-
52409010100 Female TerminalFemale Terminal
-
53409010400 Female Terminal Housing (1 Circuit)Female Terminal Housing (1 Circuit)
-
54515175232 Male TerminalMale Terminal
-
55515175231 Female TerminalFemale Terminal
-
56515175314 TubingTubing
-
57515175658 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
58515175662 Male Terminal Housing (6 Circuits)Male Terminal Housing (6 Circuits)
-
59515175984 Cab Wiring Harness. Includes items 59 to 83Cab Wiring Harness. Includes items 59 to 83
-
60515175232 Male TerminalMale Terminal
-
61515175273 Male TerminalMale Terminal
-
62515175282 Female TerminalFemale Terminal
-
63561503100 Female TerminalFemale Terminal
-
64561503100 Female TerminalFemale Terminal
-
65409204300 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
66515175321 Female TerminalFemale Terminal
-
67409202700 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
68415080000 Tubing (16 mm)Tubing (16 mm)
-
69415079900 Tubing (10 mm)Tubing (10 mm)
-
70293750001 Tie Rap 94 mmTie Rap 94 mm
-
71515175509 Male Terminal Housing (1 Circuit)Male Terminal Housing (1 Circuit)
-
72515175510 Female Terminal Housing (1 Circuit)Female Terminal Housing (1 Circuit)
-
73515175720 Male Terminal HousingMale Terminal Housing
-
74515175812 PlugPlug
-
75515175801 Female Terminal Housing (24 Circuits)Female Terminal Housing (24 Circuits)
-
76515175802 RetainerRetainer
-
77515175803 SealSeal
-
78515175804 HousingHousing
-
79515175806 Female TerminalFemale Terminal
-
80414115200 Tie Rap 180 mmTie Rap 180 mm
-
81415128526 Male Terminal Housing (10 Circuit)Male Terminal Housing (10 Circuit)
-
82515176069 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
83515176071 Female TerminalFemale Terminal
-
84271000110 TrimTrim
-
85515175283 Housing SupportHousing Support
-
86293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
87515176035 HornHorn
-
88414805101 Plastic NutPlastic Nut
-
89515175688 Painted PlatePainted Plate
-
90390402200 Rivet 3/16''Rivet 3/16''
-
91296000309 Sealant Silicone, ClearSealant Silicone, Clear
