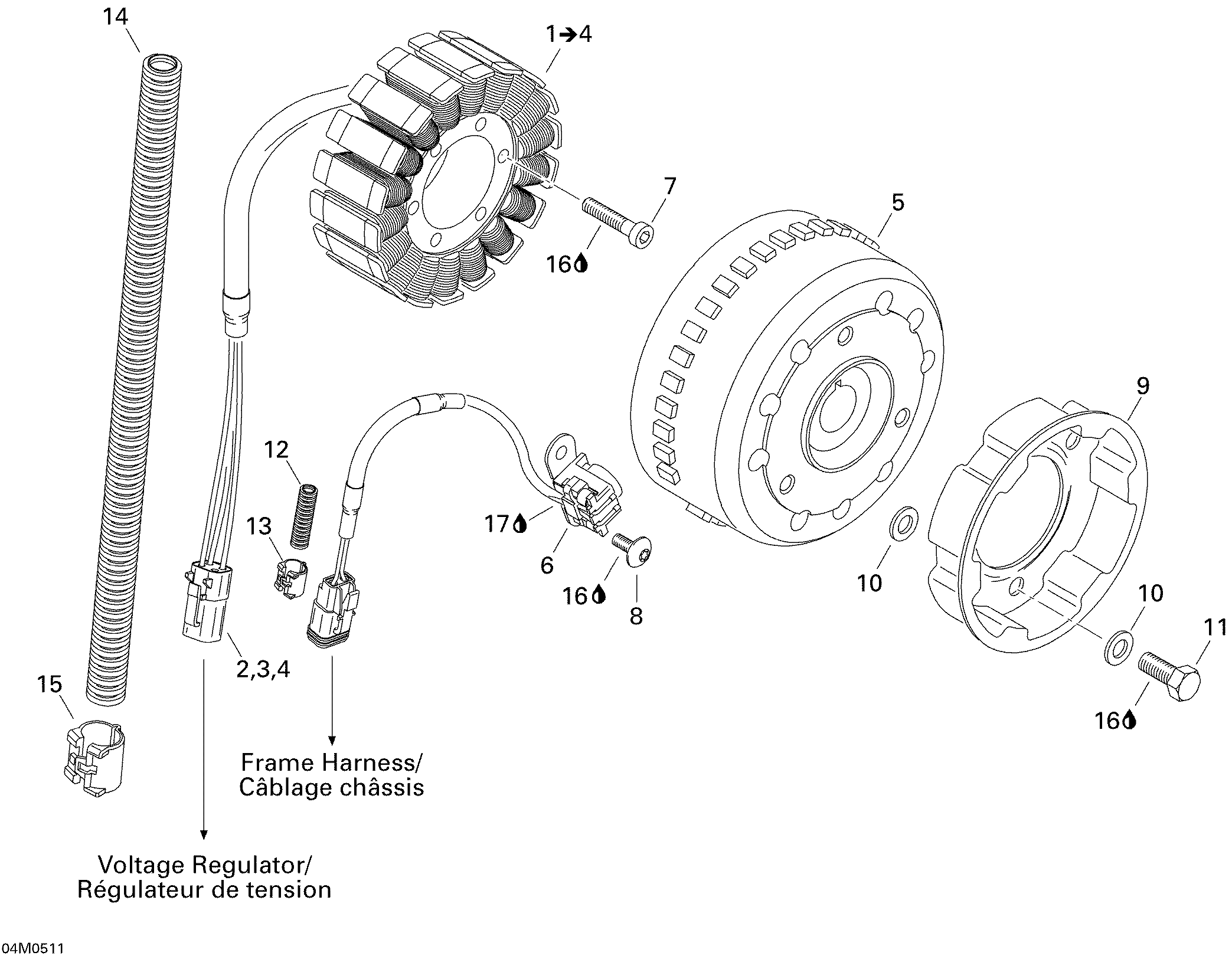

03- Magneto для BRP Ski-Doo MX Z 600 HO SDI Adrenaline & X - 2005
-
№АртикулНазвание
-
1420866065 Stator Plate. Includes 1 to 4Stator Plate. Includes 1 to 4
-
2278001473 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
3515175568 Male TerminalMale Terminal
-
4278001474 Female Lock, 4 CircuitsFemale Lock, 4 Circuits
-
5420866040 FlywheelFlywheel
-
6410922963 Pick-Up Ass'YPick-Up Ass'Y
-
7420241816 Socket Head Screw M6 X 40Socket Head Screw M6 X 40
-
8420640321 Taptite Screw M6 X 16Taptite Screw M6 X 16
-
9420852532 Starting PulleyStarting Pulley
-
10420827405 Flat WasherFlat Washer
-
11207181644 Hex. Screw M8 X 16Hex. Screw M8 X 16
-
12420460012 TubeTube
-
13420960890 ClipClip
-
14420660911 TubeTube
-
15420960892 ClipClip
-
16293800060 Loctite 243, 250 mlLoctite 243, 250 ml
