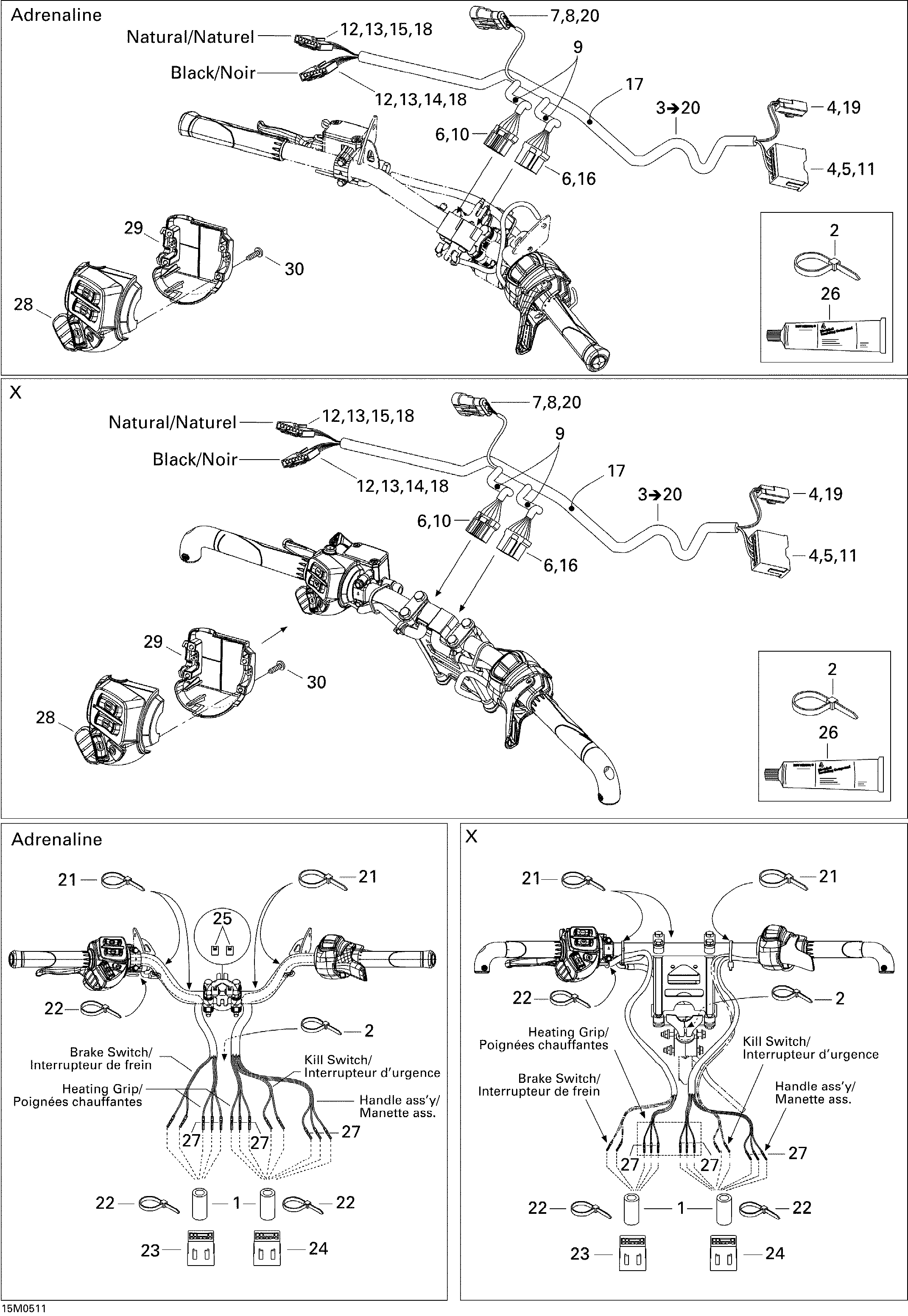

10- Steering Wiring Harness для BRP Ski-Doo MX Z 600 HO SDI Adrenaline & X - 2005
-
№АртикулНазвание
-
1515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
2293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
3515176207 Steering Wiring Harness. X, Includes 3 To 20Steering Wiring Harness. X, Includes 3 To 20
-
3515176281 Steering Wiring Harness. Adrenaline, Includes 3 To 20Steering Wiring Harness. Adrenaline, Includes 3 To 20
-
4515175232 Male TerminalMale Terminal
-
5515175273 Male TerminalMale Terminal
-
6515175231 Female TerminalFemale Terminal
-
7710000568 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
8278001013 SealSeal
-
9415079900 Tubing, 10 mmTubing, 10 mm
-
10515175543 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
11515175720 Male Terminal Housing, 11 CircuitsMale Terminal Housing, 11 Circuits
-
12515175808 Female TerminalFemale Terminal
-
13515175809 Femelle Lock, 8 CircuitsFemelle Lock, 8 Circuits
-
14515175807 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
15515175810 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
16515175819 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
17515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
18515175941 Female TerminalFemale Terminal
-
19710000667 Male Terminal Housing, 2 Circuits. XMale Terminal Housing, 2 Circuits. X
-
19515175654 Male Terminal Housing, 2 Circuits. AdrenalineMale Terminal Housing, 2 Circuits. Adrenaline
-
20515176164 Male TerminalMale Terminal
-
21414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
22293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
23515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
24515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
25515175944 Housing Support. AdrenalineHousing Support. Adrenaline
-
26293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
27515175232 Male TerminalMale Terminal
-
28515176015 LH Switch HousingLH Switch Housing
-
29515175926 Housing Switch PlateHousing Switch Plate
-
30250000100 ScrewScrew
