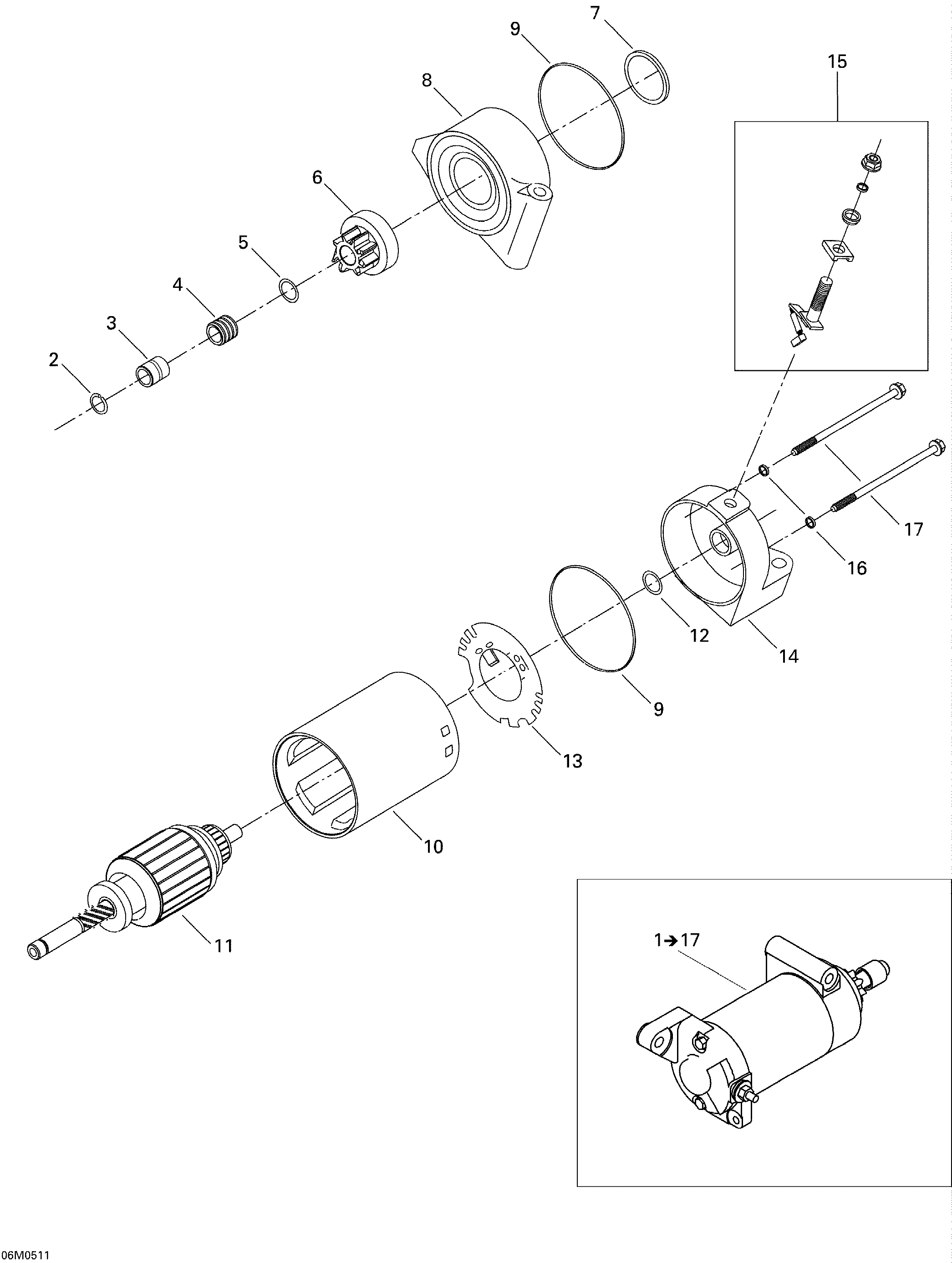

04- Electric Starter для BRP Ski-Doo MX Z 600 HO SDI Adrenaline & X - 2005
-
№АртикулНазвание
-
1515176003 Starter Ass'Y. Includes 1 to 17Starter Ass'Y. Includes 1 to 17
-
2410207700 Snap RingSnap Ring
-
3515175928 Stop NutStop Nut
-
4410922957 SpringSpring
-
5278001105 Washer PlateWasher Plate
-
6410922958 Starter ClutchStarter Clutch
-
7278000696 O-RingO-Ring
-
8410922959 HousingHousing
-
9278000695 O-RingO-Ring
-
10410213104 Starter HousingStarter Housing
-
11515175785 Armature Ass'YArmature Ass'Y
-
12410204500 Flat WasherFlat Washer
-
13515175786 Brush HolderBrush Holder
-
14410922960 HousingHousing
-
15410212100 Brush KitBrush Kit
-
16278000060 O-RingO-Ring
-
17410922961 BoltBolt
