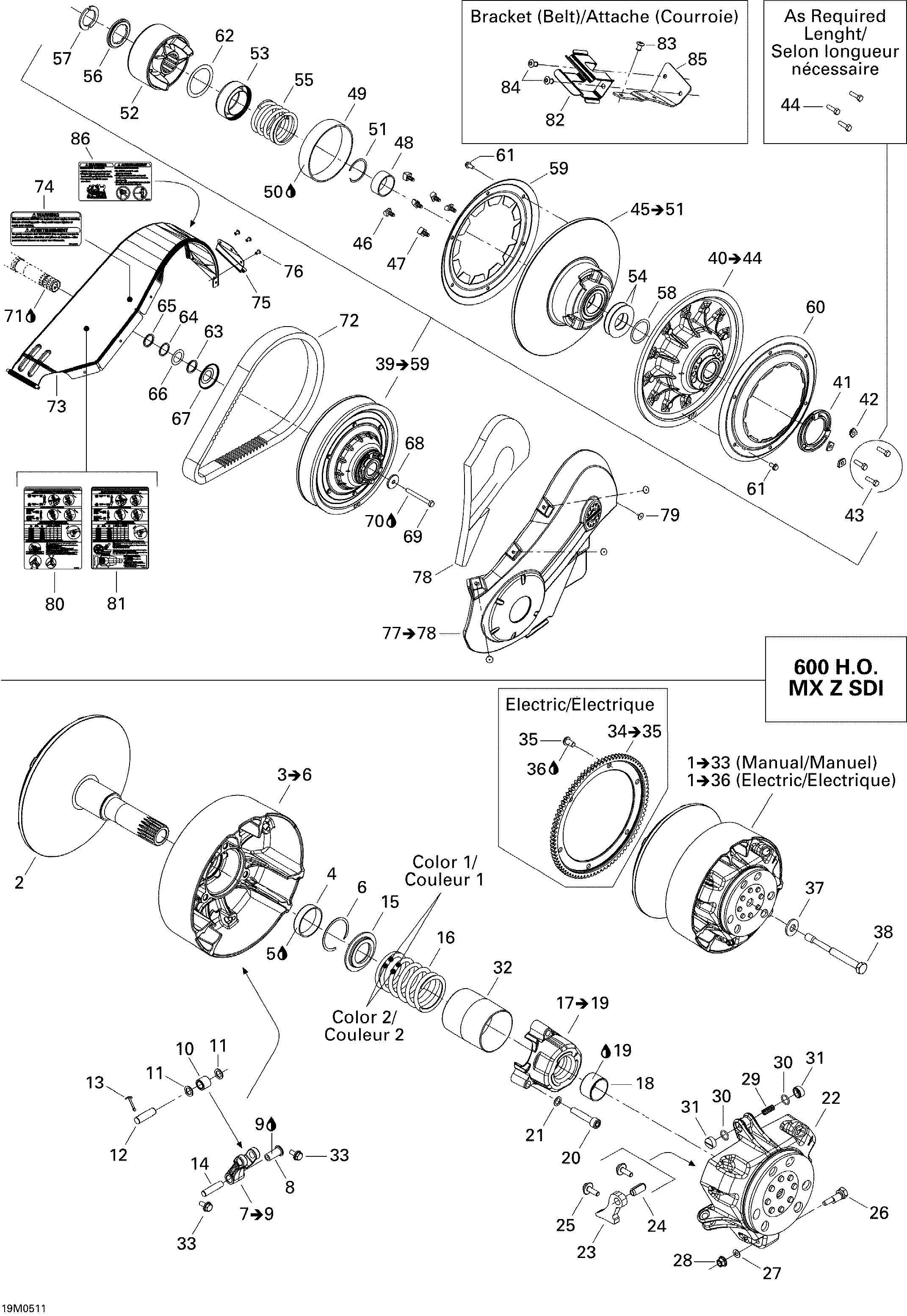

05- Pulley System для BRP Ski-Doo MX Z 600 HO SDI Adrenaline & X - 2005
-
№АртикулНазвание
-
2417222294 Fixed Flange Ass'yFixed Flange Ass'y
-
3417222181 Sliding Flange Ass'y. Includes 3 to 6Sliding Flange Ass'y. Includes 3 to 6
-
4417222758 BushingBushing
-
5413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
6293370037 CirclipCirclip
-
7417222671 Lever Ass'y. Includes 7 to 9Lever Ass'y. Includes 7 to 9
-
8417222633 BushingBushing
-
9413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
10417003900 Roller Ass'yRoller Ass'y
-
11417004302 Stopper WasherStopper Washer
-
12417004308 PinPin
-
13732958001 Cotter PinCotter Pin
-
14417009202 Lever AxleLever Axle
-
15417222312 Spring SeatSpring Seat
-
16414689500 Spring, Blue/yellowSpring, Blue/yellow
-
17417007500 Spring Cover Ass'y. Includes 17 to 19Spring Cover Ass'y. Includes 17 to 19
-
18417009204 BushingBushing
-
19413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
20205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
21250200009 Lock Washer 8 mmLock Washer 8 mm
-
22417222213 Governor CupGovernor Cup
-
23417222596 Ramp 410Ramp 410
-
24250400009 Rolled Pin 10 X 22Rolled Pin 10 X 22
-
25250000059 Hex Flanged Scew M6 X 18Hex Flanged Scew M6 X 18
-
26417005500 Calibration ScrewCalibration Screw
-
27417005600 WasherWasher
-
28233061414 Hex Flanged Nut M6Hex Flanged Nut M6
-
29417005700 SpringSpring
-
30732401030 O-RingO-Ring
-
31417005800 Slider ShoeSlider Shoe
-
32417009205 GuardGuard
-
33210361296 Hex Forming Screw M6 X 12Hex Forming Screw M6 X 12
-
34861790500 Gear Ring Kit. Includes 34 to 35Gear Ring Kit. Includes 34 to 35
-
35236281684 Hex Screw M8 X 16Hex Screw M8 X 16
-
36293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
37250200006 Conical Spring Washer 14 mmConical Spring Washer 14 mm
-
38417120000 Drive Pulley BoltDrive Pulley Bolt
-
40417126603 Fixed Flange Ass'y. Includes 40 to 44Fixed Flange Ass'y. Includes 40 to 44
-
41415005800 Adjustment RingAdjustment Ring
-
42415005900 Adjustment ShimAdjustment Shim
-
43207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
44207162244 Hex Screw M6 X 22Hex Screw M6 X 22
-
45417126851 Sliding Flange Ass'y. Includes 45 to 51Sliding Flange Ass'y. Includes 45 to 51
-
46417126373 Rear Cam Slider ShoeRear Cam Slider Shoe
-
47417126374 Front Cam Slider ShoeFront Cam Slider Shoe
-
49414978100 BushingBushing
-
50413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
51371911200 CirclipCirclip
-
52417126385 Cam Ass'yCam Ass'y
-
53417126381 GuardGuard
-
54504099600 Stopper WasherStopper Washer
-
55417126687 Spring, BlackSpring, Black
-
56417126733 SpacerSpacer
-
57417126734 Half KeyHalf Key
-
58504112300 ShimShim
-
59417126698 CoverCover
-
60504151831 Aerodynamic CoverAerodynamic Cover
-
61210251180 Hex. Forming Screw M5 x 11Hex. Forming Screw M5 x 11
-
62417126322 Swivel AbutmentSwivel Abutment
-
63417300252 SpacerSpacer
-
64417300265 SpacerSpacer
-
65417300252 SpacerSpacer
-
66504112000 ShimShim
-
67417300238 ProtectorProtector
-
68517302322 Strength WasherStrength Washer
-
69207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
70293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
71293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
72417300197 Drive BeltDrive Belt
-
73417300213 Belt GuardBelt Guard
-
74516002670 Security Label, Belt GuardSecurity Label, Belt Guard
-
75417300216 Belt Guard BracketBelt Guard Bracket
-
76390909200 Avex RivetAvex Rivet
-
77417300248 Side Protector Ass'y. Includes 77 to 78Side Protector Ass'y. Includes 77 to 78
-
78417300246 FoamFoam
-
79293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
80516001639 Decal, Suspension Adjustment. AdrenalineDecal, Suspension Adjustment. Adrenaline
-
81516002616 Decal, Suspension Adjustment. XDecal, Suspension Adjustment. X
-
82517281905 BracketBracket
-
83390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
84390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
85417300282 BracketBracket
-
86516002674 Emergency Starting LabelEmergency Starting Label
