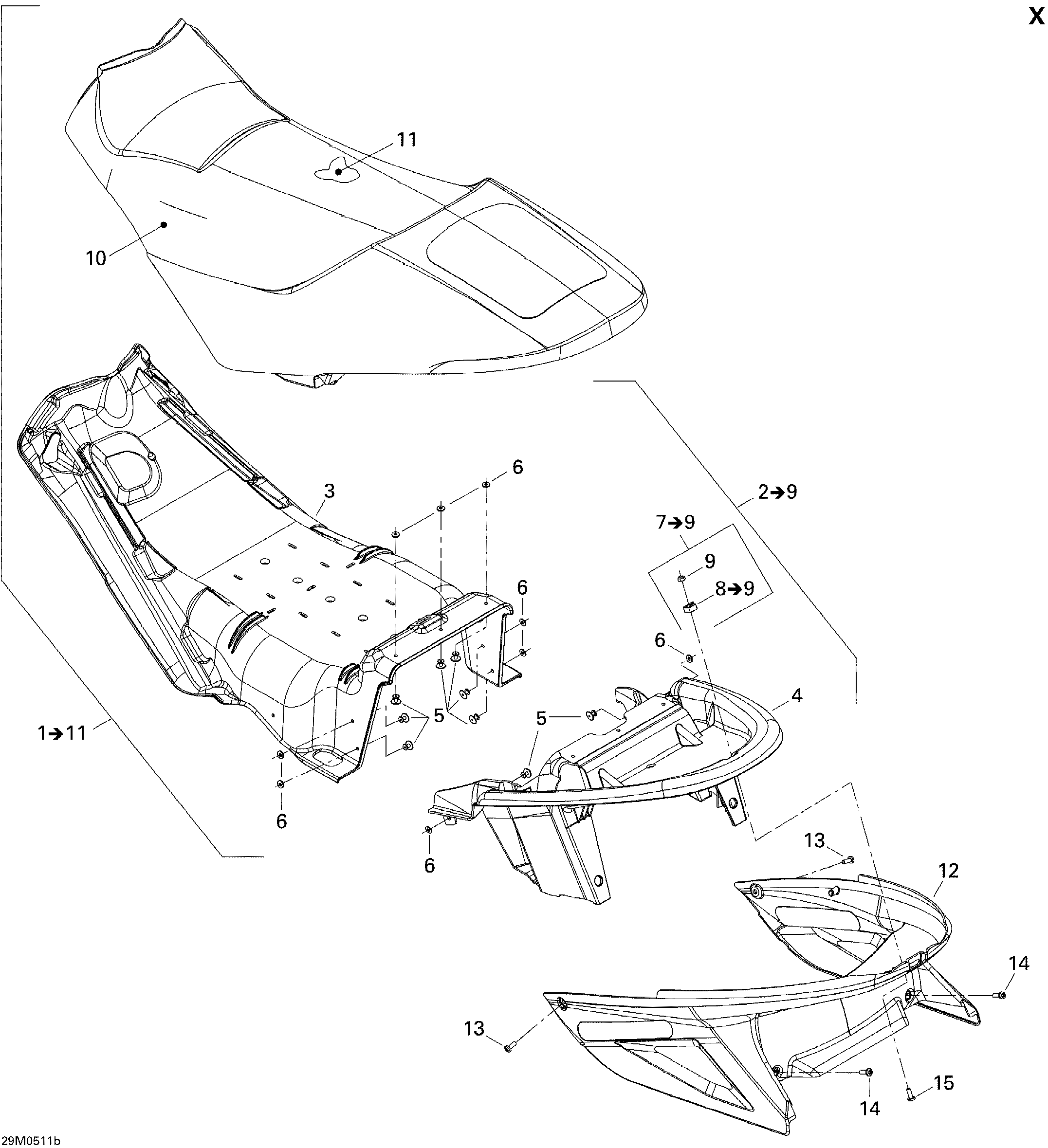

09- Seat X для BRP Ski-Doo MX Z 600 HO SDI Adrenaline & X - 2005
-
№АртикулНазвание
-
2510004582 Base Siege Ass'y. Includes 2 to 9Base Siege Ass'y. Includes 2 to 9
-
5390409600 Pop Rivet 3/16''Pop Rivet 3/16''
-
6517225900 Flat WasherFlat Washer
-
7708000046 Nut Housing Ass'y, M6. Includes 7 to 9Nut Housing Ass'y, M6. Includes 7 to 9
-
8269500252 Nut Housing Ass'Y. Includes 8 to 9Nut Housing Ass'Y. Includes 8 to 9
-
9232061600 Elastic Stop Nut M6Elastic Stop Nut M6
-
10510004491 Seat Cover. Black, B-160Seat Cover. Black, B-160
-
10510004492 Seat Cover. Jaune, B-190Seat Cover. Jaune, B-190
-
10510004493 Seat Cover. Viper Red, B-176Seat Cover. Viper Red, B-176
-
11510004216 Seat FoamSeat Foam
-
12510004230 Trunk, Noir, B-160Trunk, Noir, B-160
-
13250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
14250000128 Torx Screw M6 X 20Torx Screw M6 X 20
-
15250000129 Torx Screw M6 X 16Torx Screw M6 X 16
