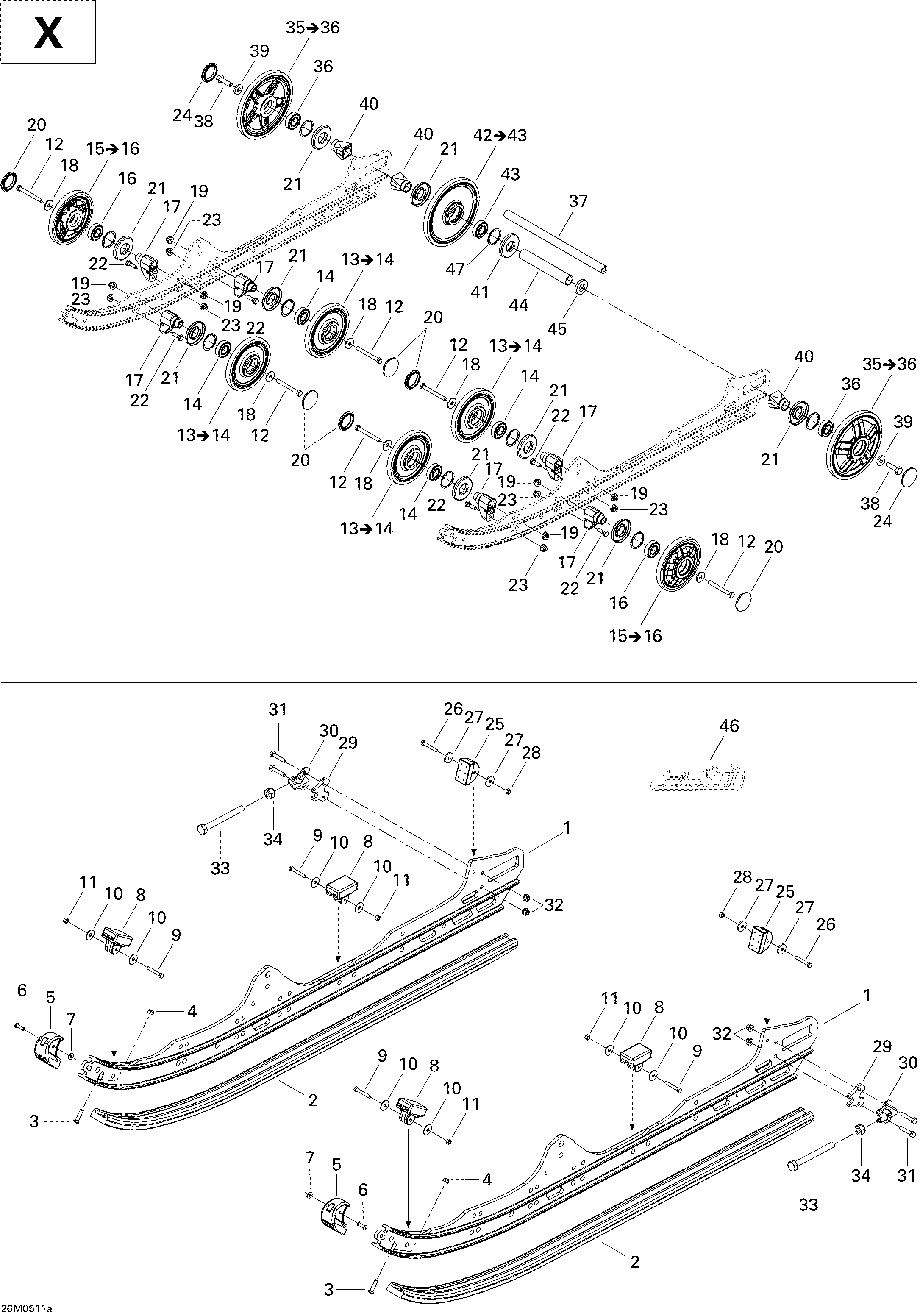

08- Rear Suspension X для BRP Ski-Doo MX Z 600 HO SDI Adrenaline & X - 2005
-
№АртикулНазвание
-
1503190571 Runner 121Runner 121
-
2503190573 Slider Shoe. Black B-160Slider Shoe. Black B-160
-
2503190629 Slider Shoe. Yellow B-190Slider Shoe. Yellow B-190
-
3208562560 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503190575 Runner ProtectorRunner Protector
-
6293150087 Pop Rivet 3/16''Pop Rivet 3/16''
-
7517124300 WasherWasher
-
8503190576 Rubber StopperRubber Stopper
-
9207053044 Hex Screw M5 X 30Hex Screw M5 X 30
-
10250200016 WasherWasher
-
11232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
12207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
13503190577 Wheel 141. Includes 13 to 14Wheel 141. Includes 13 to 14
-
14503190396 Ball BearingBall Bearing
-
15503190579 Wheel 141, Yellow With Pattern. Yellow B-190, Includes 15 to 16Wheel 141, Yellow With Pattern. Yellow B-190, Includes 15 to 16
-
16503190396 Ball BearingBall Bearing
-
17503190580 Support 141-20Support 141-20
-
18211200041 WasherWasher
-
19233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
20570063600 Wheel CapWheel Cap
-
21503190434 Labyrinth SealLabyrinth Seal
-
22207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
23233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
24570063600 Wheel CapWheel Cap
-
25503189608 Rubber StopperRubber Stopper
-
26207053044 Hex Screw M5 X 30Hex Screw M5 X 30
-
27250200016 WasherWasher
-
28232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
29503190379 Tensioner SpacerTensioner Spacer
-
30503190380 TensionerTensioner
-
31207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
32233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
33230100044 Hex Screw M10 X 100Hex Screw M10 X 100
-
34233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
35503190342 Wheel 180, Yellow With Pattern. Yellow B-190, Includes 35 to 36Wheel 180, Yellow With Pattern. Yellow B-190, Includes 35 to 36
-
36503190396 Ball BearingBall Bearing
-
37503190429 Rear AxleRear Axle
-
38250000019 Hex Screw With NylonHex Screw With Nylon
-
39503190439 WasherWasher
-
40503190428 Rear Wheel SpacerRear Wheel Spacer
-
41503190682 Labyrinth SealLabyrinth Seal
-
42503190395 Wheel 180. Includes 42 to 43Wheel 180. Includes 42 to 43
-
43503190396 Ball BearingBall Bearing
-
44503190430 Rear Long SpacerRear Long Spacer
-
45503190432 WasherWasher
-
46516002615 Sc4 DecalSc4 Decal
-
47371901700 CirclipCirclip
